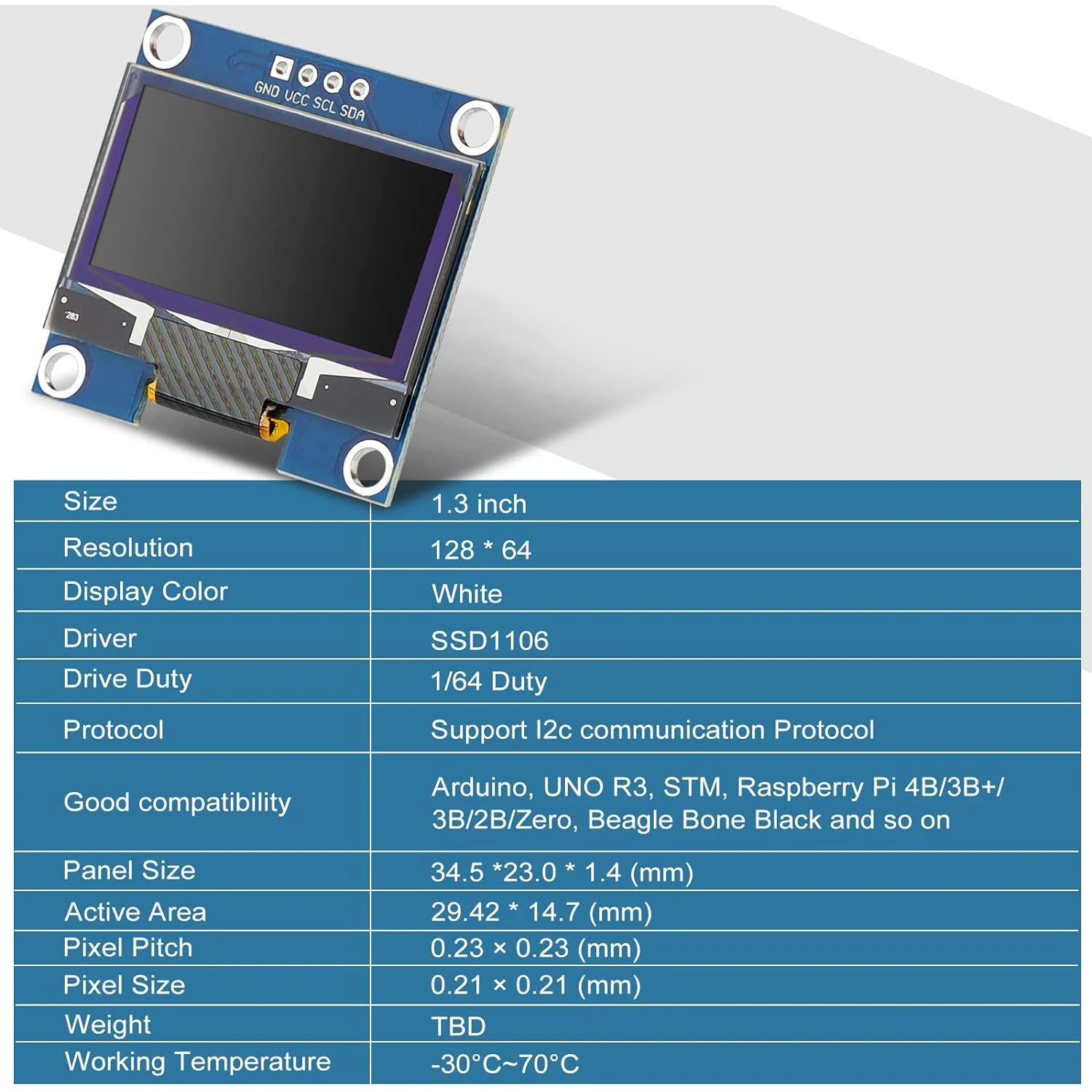

SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

Display Mode: 128x64

High-concerned chemical: None

Model Number: 1.3 Inch OLED Display Module 128x64 Pixel IIC I2C OLED Screen

Origin: Mainland China

Resolution: 128*64

Type: OLED

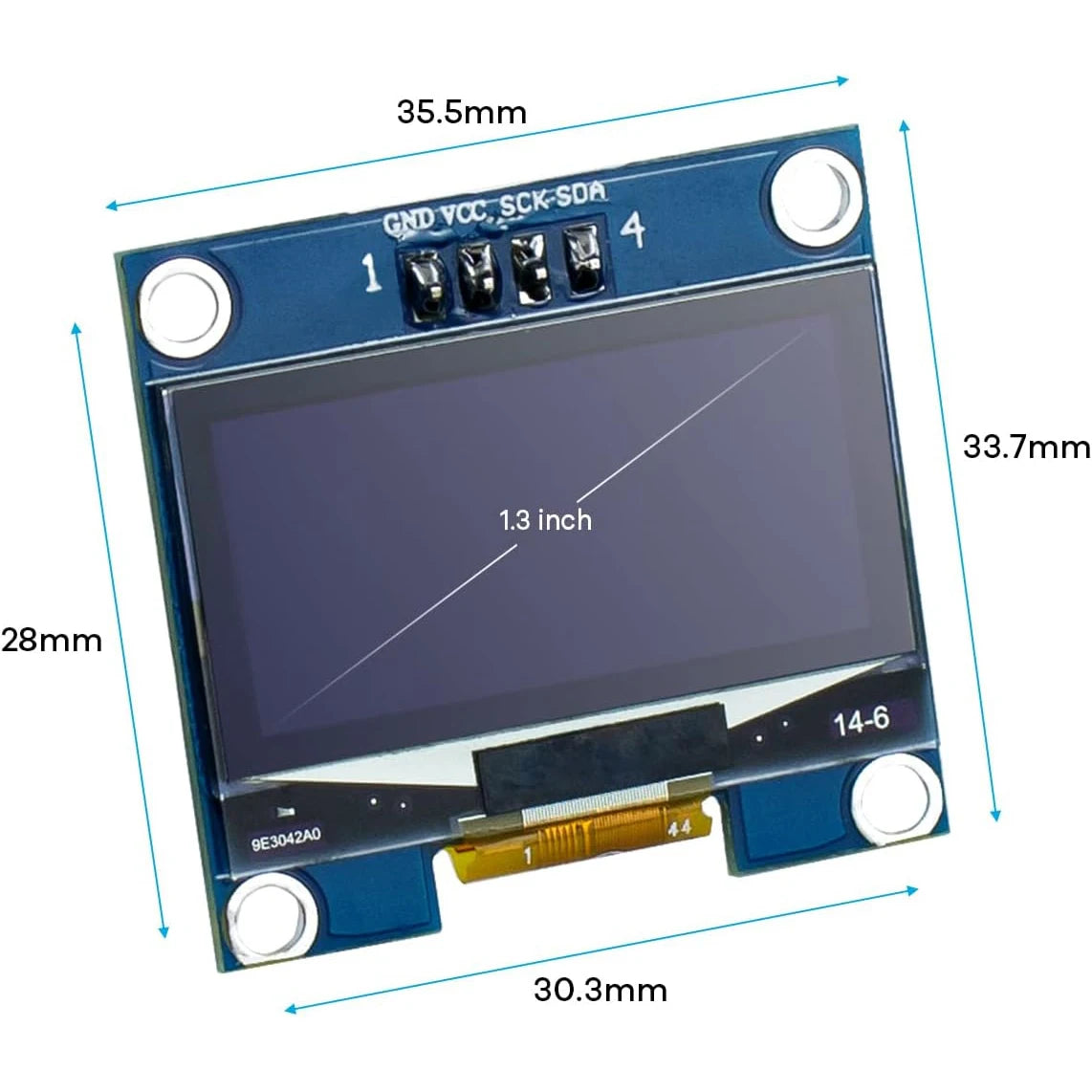

• Size: 1.3 inches, Resolution: 128 x 64;Viewing angle:>160°;Supported voltage: 3.3V-5V DC,no need for level conversion chips;Power consumption during normal operation: 0.06W;Full screen illumination: 0.08W;Color:Blue

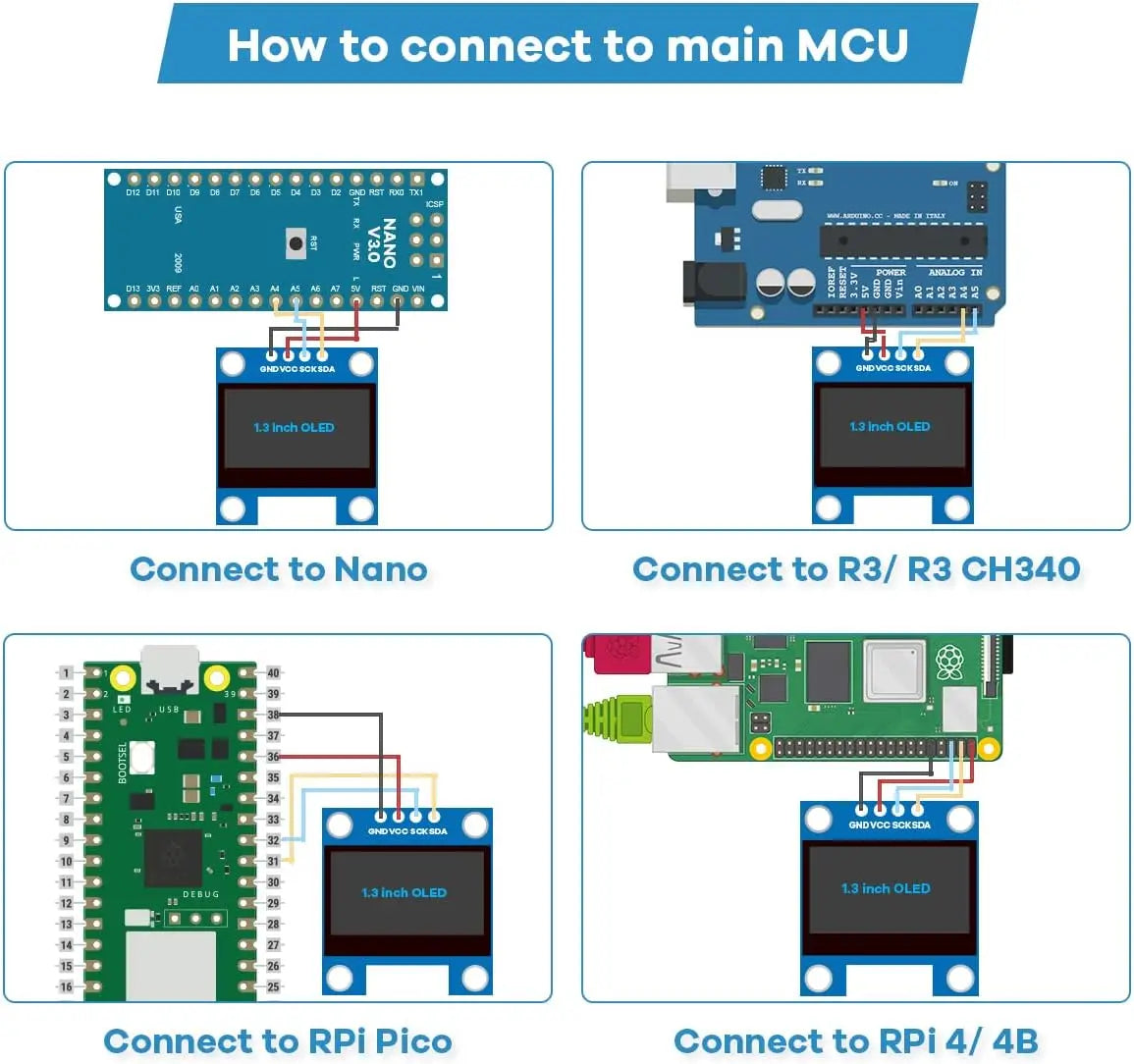

• Embedded driver IC: SH1106;Communication: I2C/IC interface, only requires two I/O ports, compatible with R3 board and Arduino Mega, Raspberry Pi, 51 MCU, STIM 32, MMDVM, Pi Star, etc

• No backlight required, each pixel emits light independently. It has ultra-high contrast, high resolution, bright and clear dots, making it easy to read even in small fonts

• Graphics and text information can be directly displayed on microcontroller projects, and OLED controllers do not have embedded fonts. Users can create fonts through font generation software
