1pc Upgraded Adjustable DC Motor Speed PWM Controller 10V 12V 24V 30V Reversing Switch 120W

1pc Upgraded Adjustable DC Motor Speed PWM Controller 10V 12V 24V 30V Reversing Switch 120W

$12.99 USD
$0.00 USD $12.99 USD
Sale Sold out
Color

SPECIFICATIONS

Application: Computer

Brand Name: AOKIN

Choice: yes

Condition: New

Dissipation Power: 120W

High-concerned chemical: None

Operating Temperature: 1pc Upgraded Adjustable DC Motor Speed PWM Controller

Origin: Mainland China

Package: SOP

Supply Voltage: 10v 12v 24V 30V

Type: buck (stepdown) regulator

is_customized: Yes

• Adjustable Speed Controller :This upgraded adjustable speed controller allows for precise control over the motor's speed, providing seamless operation for your device.


• PWM Regulator :The PWM (Pulse Width Modulation) regulator feature ensures a smooth and consistent power supply, enhancing the performance and efficiency of your equipment.


• Reversing Switch :Equipped with a reversing switch, this controller offers added flexibility and control, allowing you to change the direction of power flow as needed.


• High Power Capacity :With a power rating of 120W, this controller can handle high power demands, making it suitable for heavy-duty applications.


• Wide Voltage Range :Designed to work with a wide voltage range from 10V to 30V, this controller is versatile and adaptable, making it ideal for various devices.


• Integrated Circuits :As an integrated circuit, this controller provides efficient and reliable operation, making it a cost-effective choice for your power management needs.



  1. Working Voltage: DC 10V - DC 30V

  2. Maximum power: 120W

  3. Rated Current: 3A

  4. Max Current: 4A

  5. Maximum continuous output current:3A ;Overload short circuit protection current:4A ,short circuit time does not exceed 30 seconds

  6. PWM frequency: 500 kHz

  7. PWM pulse width modulation range: 5% -95%

  8. Engine Type:Brush

  9. Control power: 12V*3A= 3 6W, 24V*3A= 72W, more than 24A maximum 120W

  10. Potentiometer: resistance value B10K; wire length 20 cm; opening 8mm;

  11. The output voltage is approximately：0-100% of the input voltage.

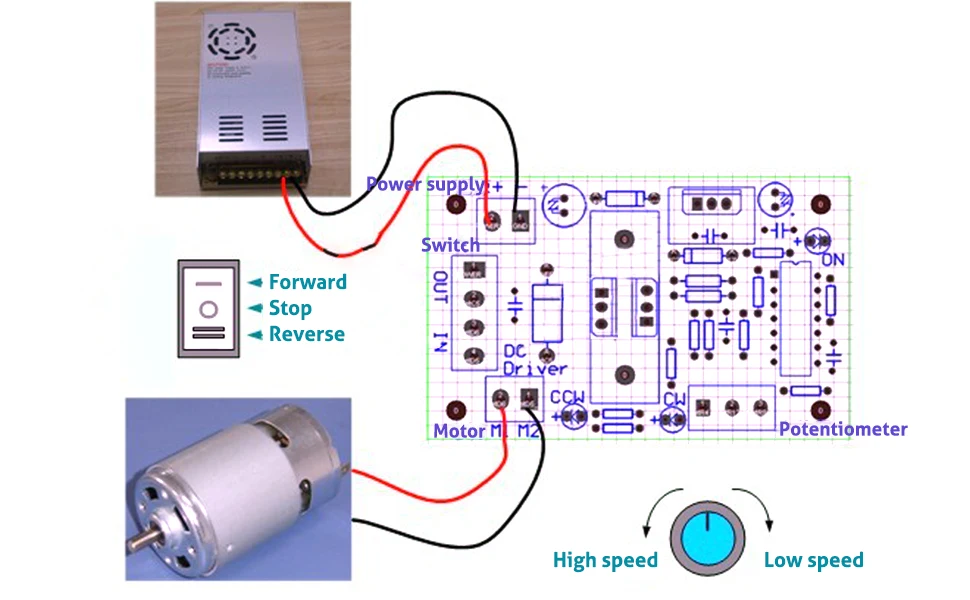

  • Pls do not connect AC power directly(Such as:110V AC),the input volt of this controller should be DC,otherwise it will be burned out

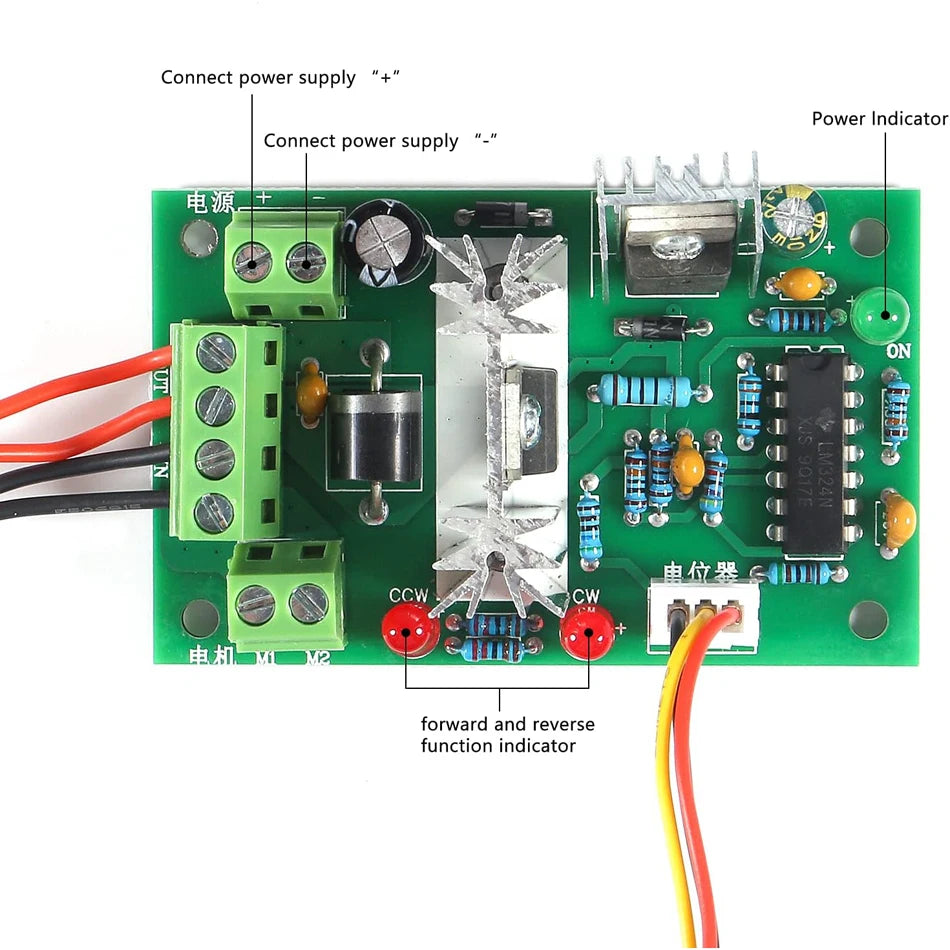

  • Positive and negative pole of the POWER can not be reversed

  • Positive and negative pole of the MOTOR can be reversed.When the direction of operation is inconsistent with your expectations,you can change the direction by adjusting the order of the line

  • Adjust the potentiometer knob to change output duty cycle
