4 Relay Module 5V 4 Channels Relay Module Compatible with Arduino R3 1280 Arm PIC AVR STM32

Features:

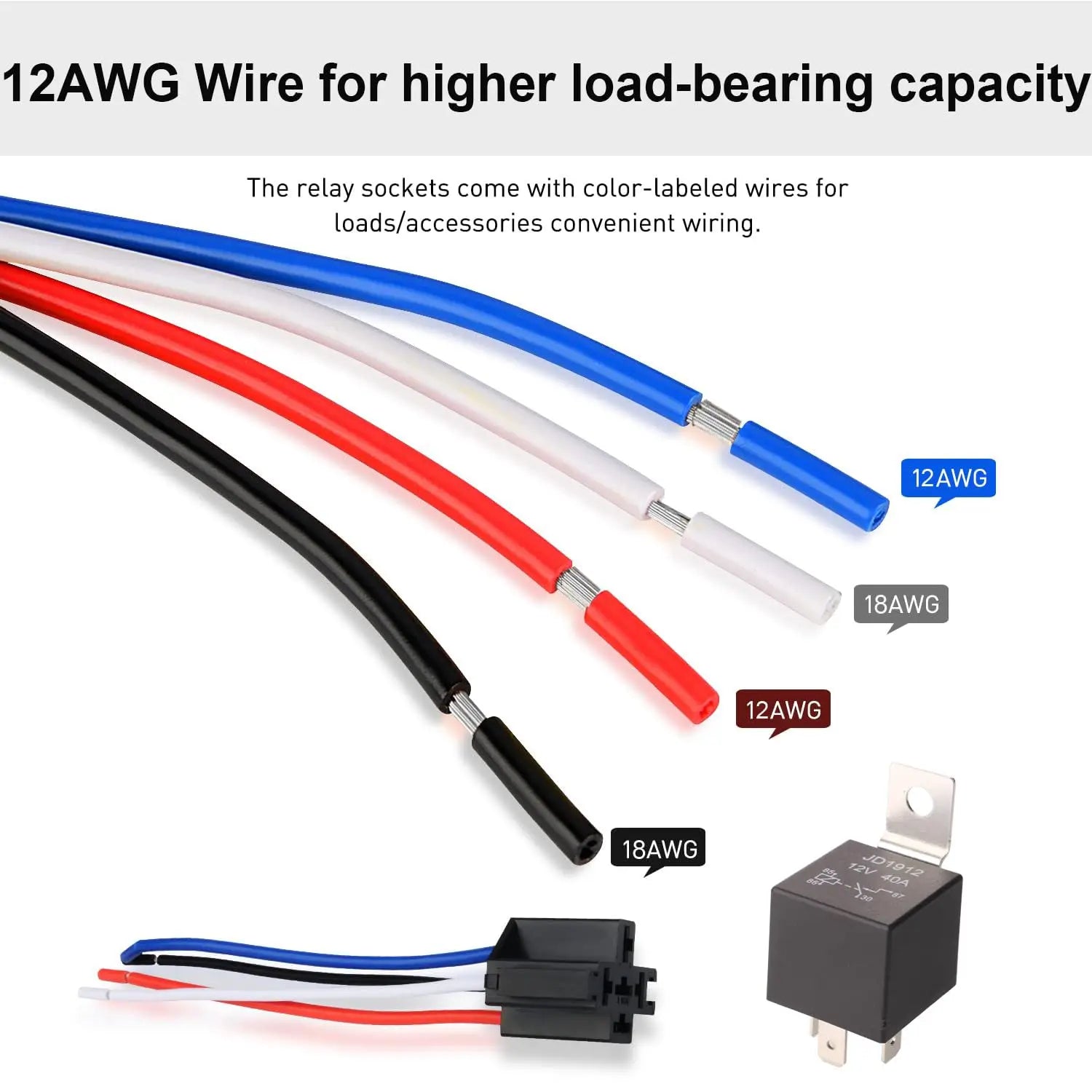

• Brand new heavy duty SPST(Single Pole Single Throw) relays with color-labeled wires.

• Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.

• Small size/Low power consumption/High contact voltage/ High sensitivity.

• Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ.

• Life Expectancy Electrical: 100,000 Operation, Life Expectancy Mechanical: 10,000,000 Operation.

Sepcificattion:

Relay load: 40A/12VDC

Contact Resistance: ≤ 100MΩ

Contact Material: Ag Alloy

Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)

Life Expectancy Mechanical: 10,000,000 Operations

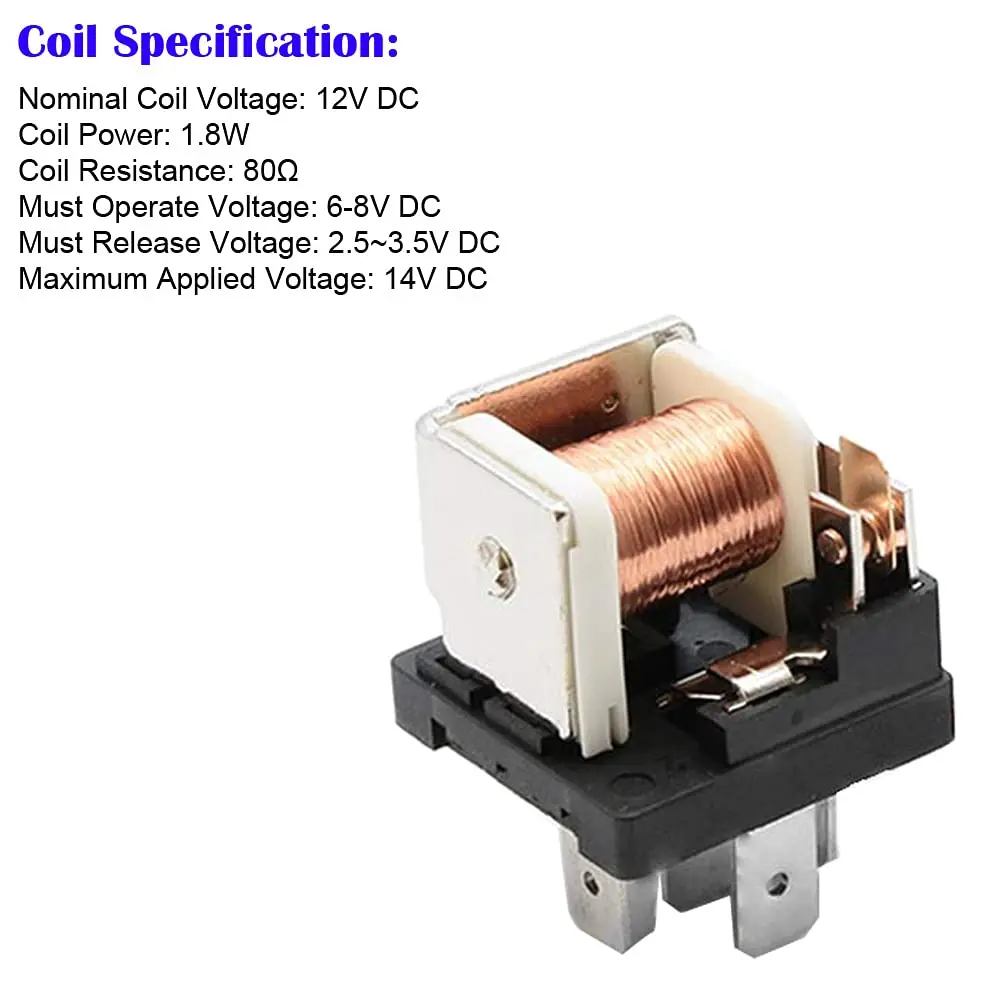

Coil power:1.8W

Operate Time: 15ms

Release Time: 10ms

Initial withstand voltage of Contact and Contact: 1000VAC/1min

Initial withstand voltage of Contact and Coil: 1500VAC/1min

Insulation Resistance: 100MΩ/( 500VDC)

Temperature Range: -55°C ~+70°C

Humidity Range:35%-80%

Atmospheric Pressure:86-106K

PaPackage Contents:

1XJD1912 Car Relay
