2 Pack 6V 12V 24V 28V 3A 80W 1203BB DC Motor Speed Controller PWM Speed Adjustable Reversible Motor Driver Switch Reversing
2 Pack 6V 12V 24V 28V 3A 80W 1203BB DC Motor Speed Controller PWM Speed Adjustable Reversible Motor Driver Switch Reversing
Couldn't load pickup availability
SPECIFICATIONS
Application: Electric Toy
Brand Name: AOKIN
Choice: yes
Condition: New
Dissipation Power: 3A 80W
High-concerned chemical: None
Origin: Mainland China
Package: SOP
Supply Voltage: 6v 12v 24V 28v 3
Type: buck (stepdown) regulator
1203BB DC Motor Speed Controller regulate the speed of the motor by adjusting Pulse-Width Modulation (PWM).
Working Voltage: DC 6-28V. Maximum continuous output current: 3A. Maximum output power: 80W.

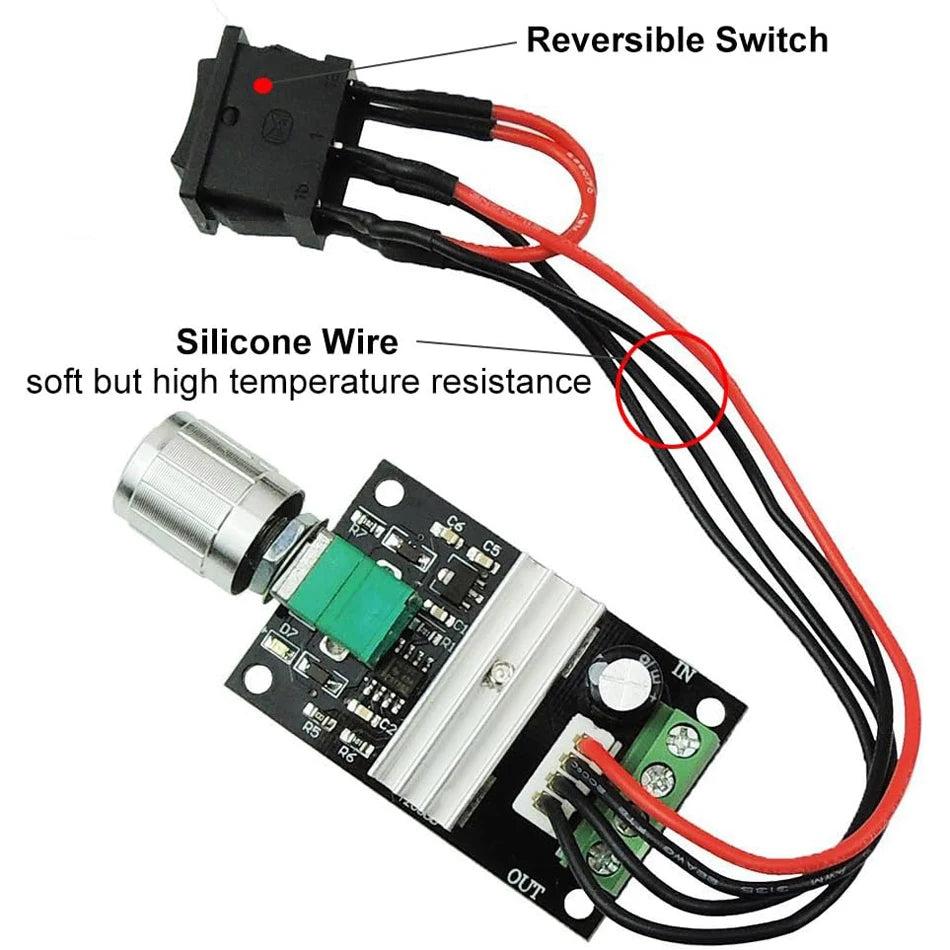

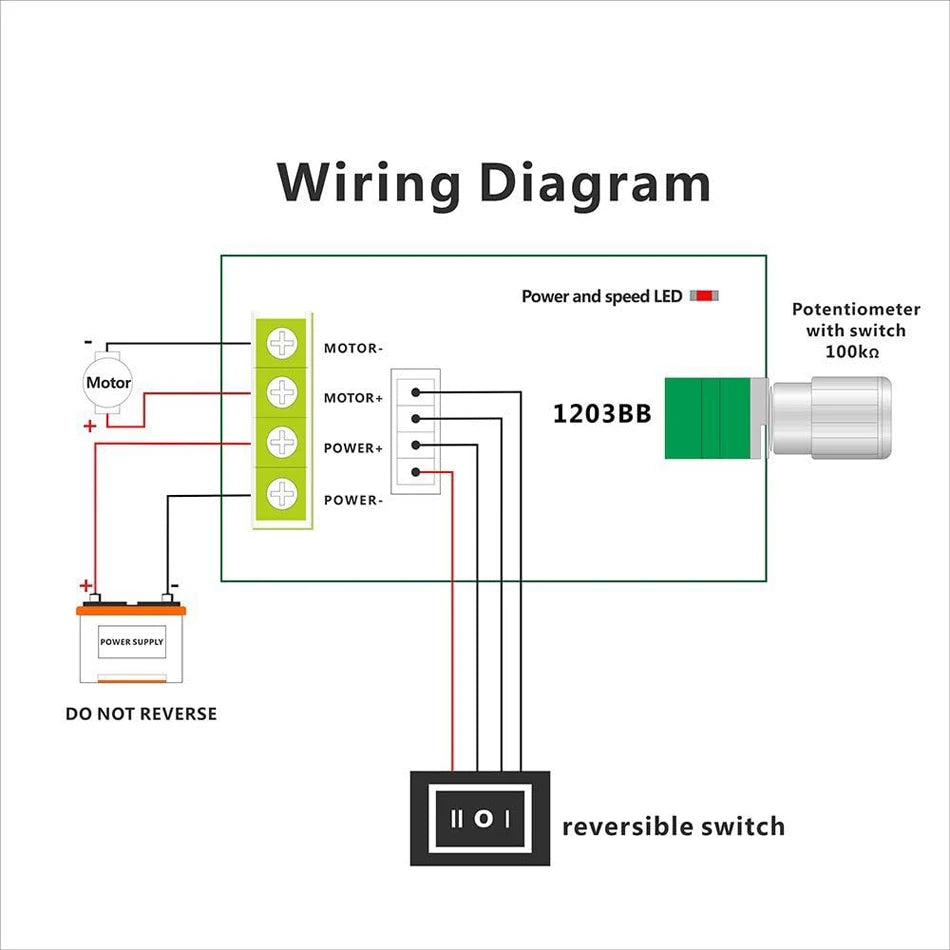

The Motor Speed Controller built-in switch. You can control the forward or reverse direction and the stop of DC motor by the switch.
Item Size: 3.2*5*1.5 cm/1.3*2*0.4 inches; Net Weight: 1.13 ounces; The Switch Cable Length: 15cm/5.9in.
Note: DC motor speed controller is connected to DC power supply. Never connect directly to household 220V AC power supply.
