20 Pcs Double Sided PCB Board 2X8 3X7 4X6 5X7 Tinned Through Holes FR4 Prototype Kit Printed Circuit Universal Perfboard for DIY

$14.99 USD

~~$0.00 USD~~ $14.99 USD

Sale Sold out

Color 20pcs kit

SPECIFICATIONS

Application: Electric Toy

Brand Name: other

Choice: yes

Condition: New

Model Number: 20 Pcs Double Sided PCB Board

Origin: Mainland China

Package: SOP

Type: Module

is_customized: Yes

• High-Quality PCB Board :This product features a high-quality PCB board, ensuring durability and long-lasting performance for your electronic projects.

• Double-Sided Design :The double-sided design of this PCB board allows for more complex circuits, offering greater flexibility and versatility in your designs.

• Versatile Size Options :Available in various sizes (2X8, 3X7, 4X6, 5X7), this PCB board can accommodate a wide range of applications, making it a versatile choice for DIY projects.

• Tinned Through Holes :Equipped with tinned through holes, this PCB board ensures secure connections and reduces the risk of short circuits, enhancing the overall user experience.

• Universal Perfboard :This universal perfboard is designed to accommodate a wide range of components, making it an ideal choice for diverse electronic projects.

• Prototype Kit :The included prototype kit allows for easy testing and troubleshooting, facilitating the debugging process and saving you time and effort.

20 Pcs Double Sided PCB Board 2X8 3X7 4X6 5X7 Tinned Through Holes FR4 Prototype Kit Printed Circuit Universal Perfboard for DIY Soldering Project Compatible with Arduino Kits

Features:

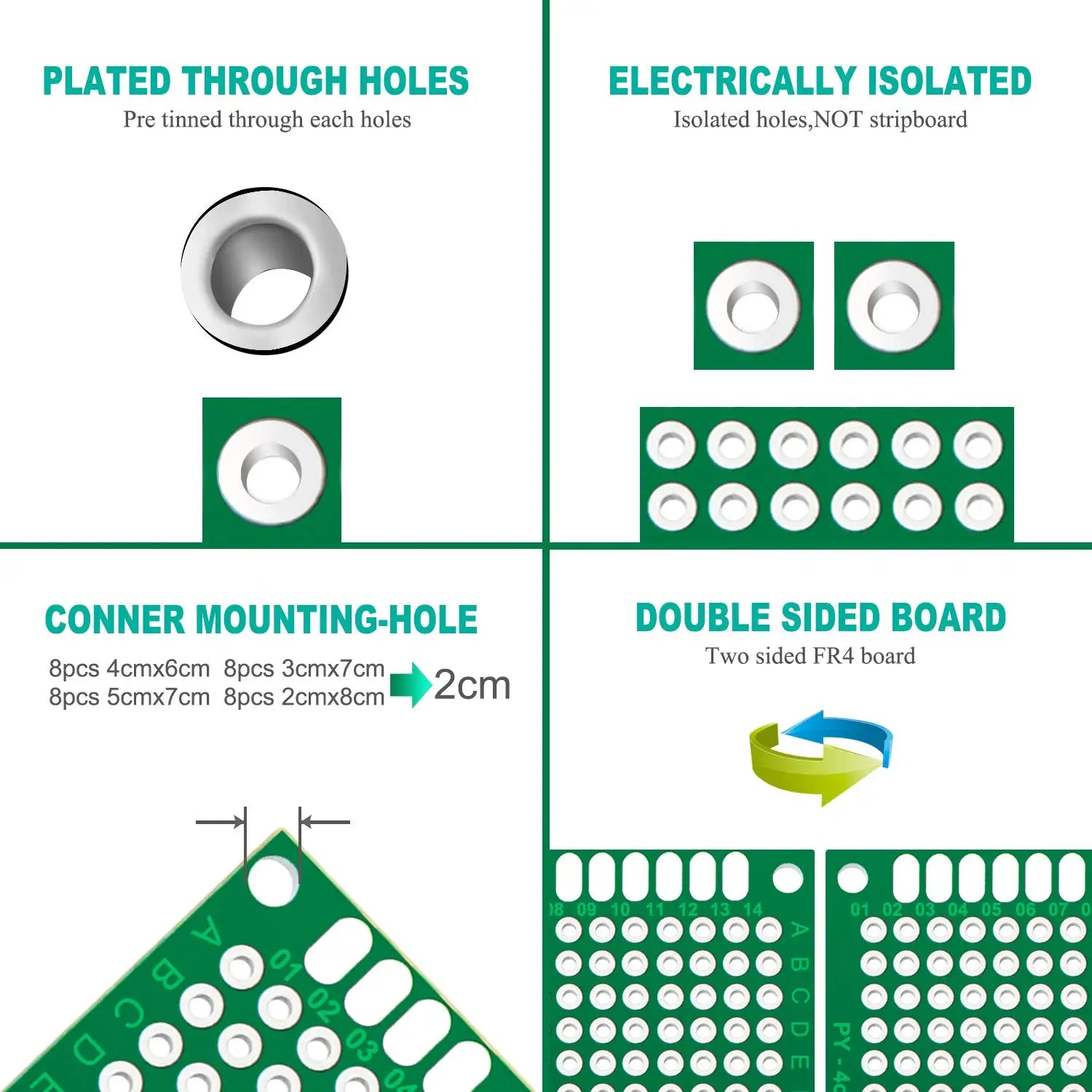

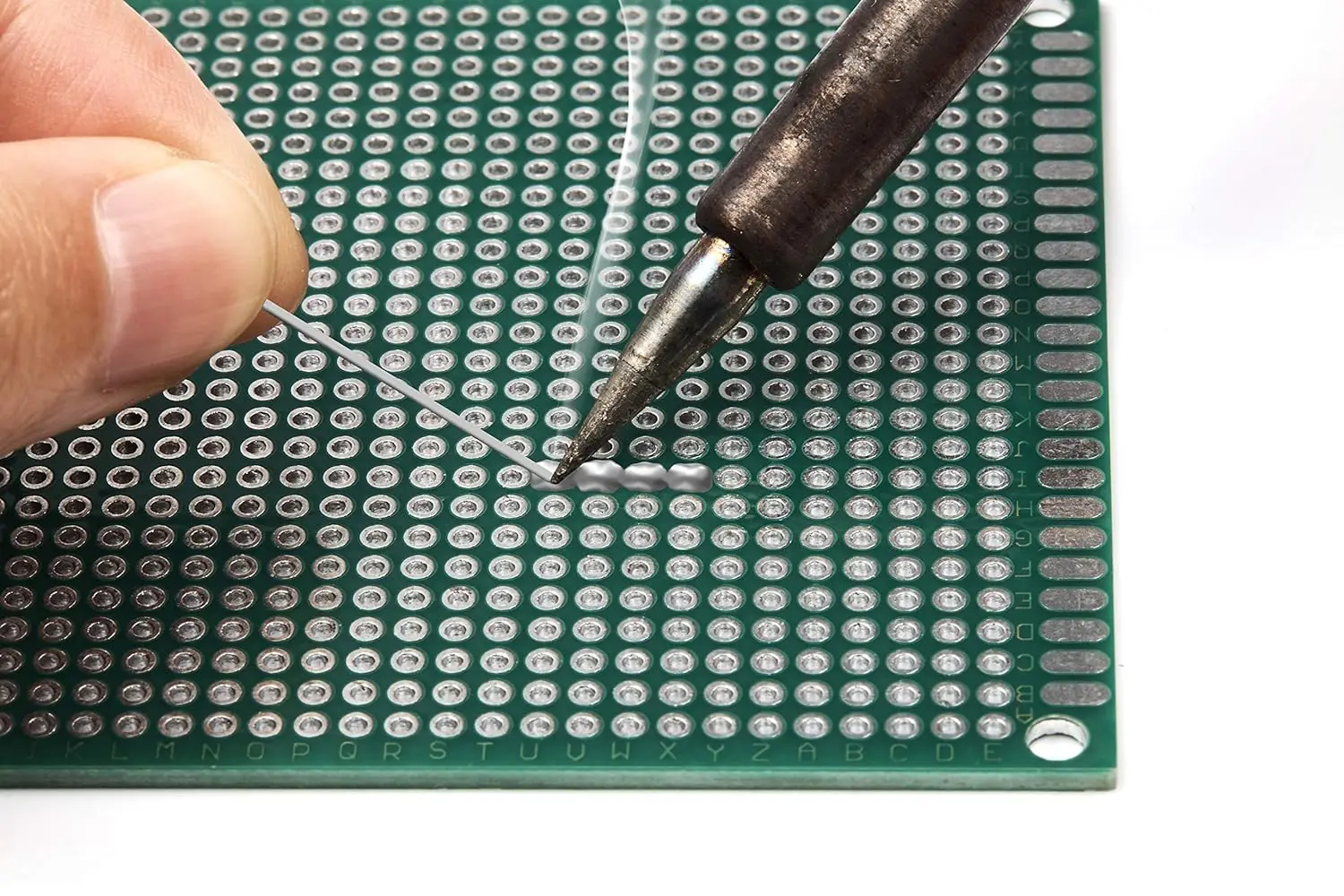

• These double side (DS) pcbs with plated through holes design, Each hole on the same side are electrically isolated (NOT a stripboard or sigle side) solderable, You can solder to bridging holes together or use 22-29awg jumper wires for connection. Isolate points bare perfboard.

• Lettering on both side of the PC board makes it easier for prototyping projects, Cuttable fiber glass and FR-4 flame resistant good for soldering,Muti Pins, easy to cut and solder with appropriate tools. Flux for easy soldering and extended serving life of printed blank perforated board. Pre-tined plating thru holes

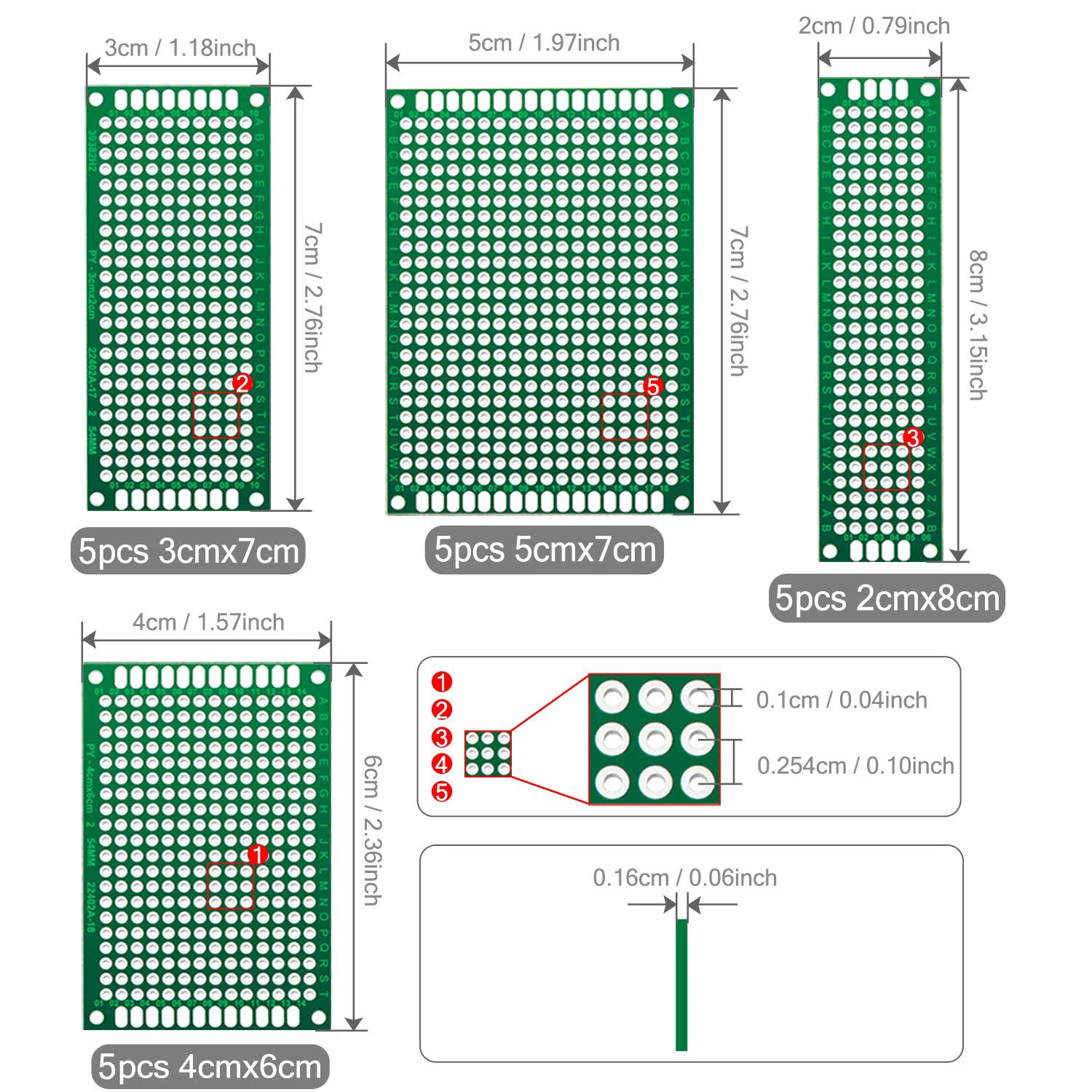

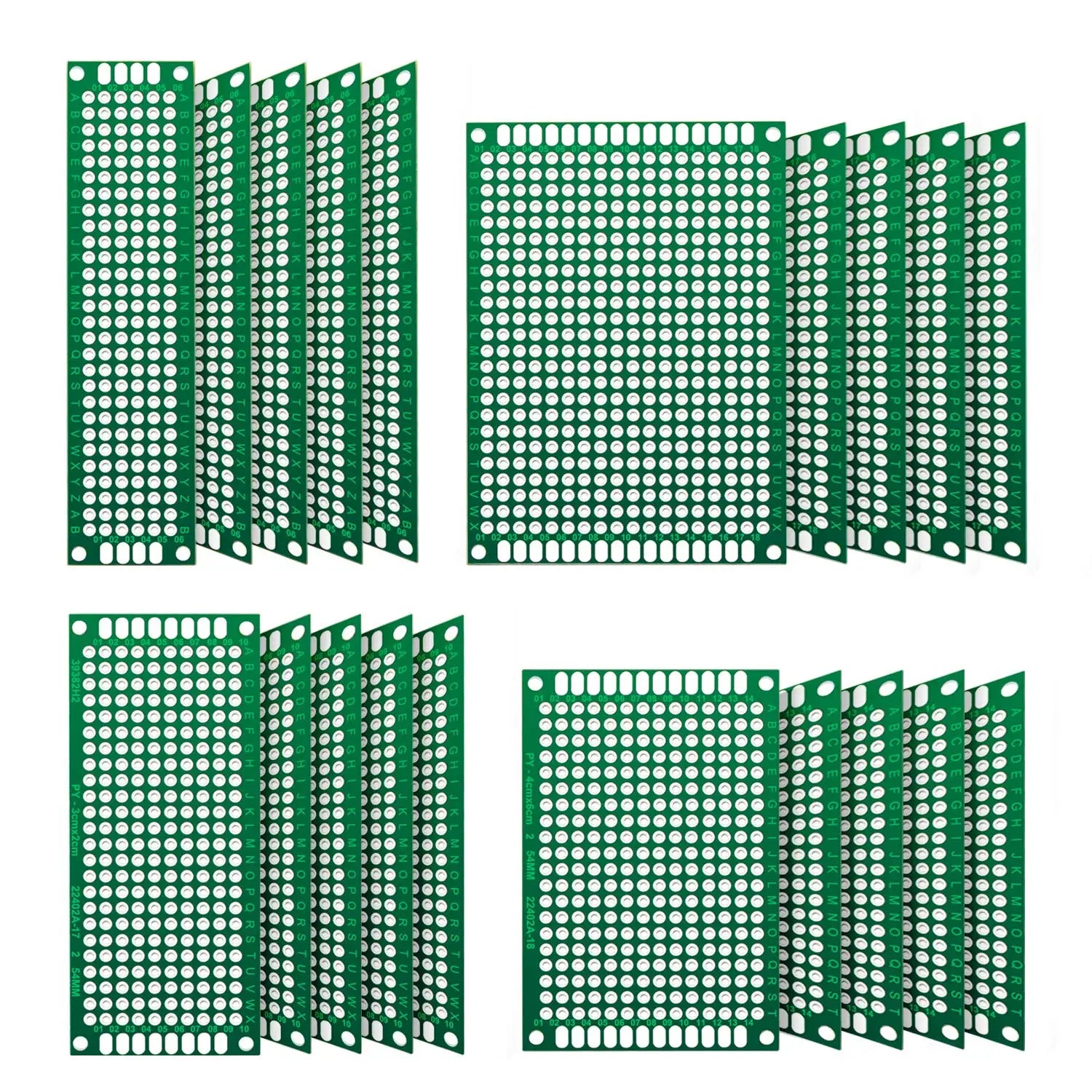

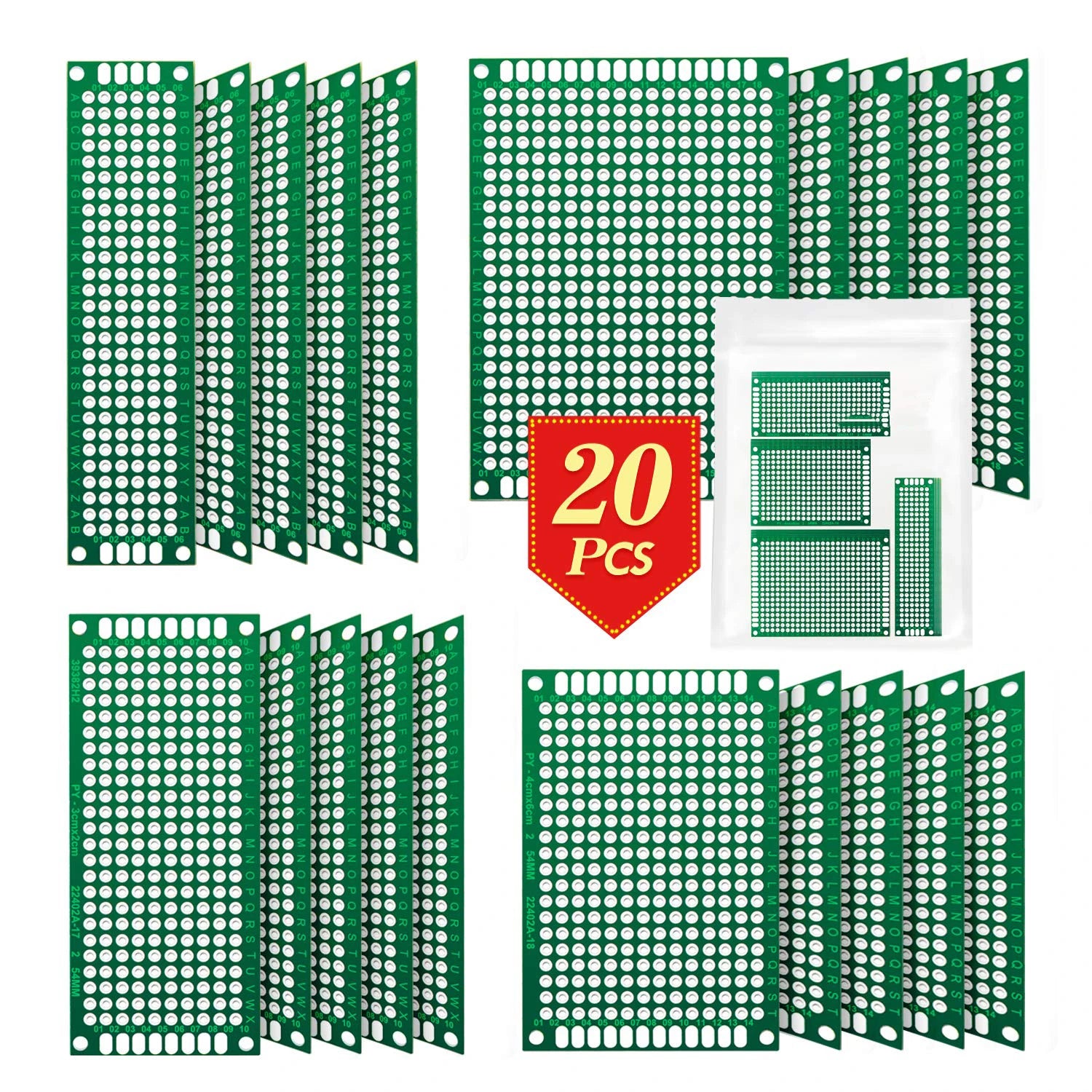

• Kits : 20pcs set ( 5pcs 4x6 / 5pcs 3x7 / 5pcs 5x7 / 5pcs 2x8 ) 2*8 3*7 4*6 5*7 CM protoboard | Hole-diameter: 1 mm / 0.04 inches | Hole-pitch point: 2.54mm / 0.1 inches | Conner Mounting-Hole: 2 mm / 0.08 inch | Thickness: 1.6mm / 0.06 inch 5pcs 4 X 6CM double-sided PCB board with 280 holes 5pcs 3 X 7CM double-sided PCB board with 240 holes 5pcs 5 X 7CM double-sided PCB board with 432 holes 5pcs 2 X 8CM double-sided PCB board with 168 holes

• Work with: led diode, screw terminal, dupont wire, connector, resistor, IC, DIP, sensors, transistor and other eletronic power components or devices with .1" pin spacing. For Hobby Test, Computer Science Class,Raspberry rasp Pi connection Perf Board.widely used among electronic experiments and point-to-point DIY IoT projects.

Specification:

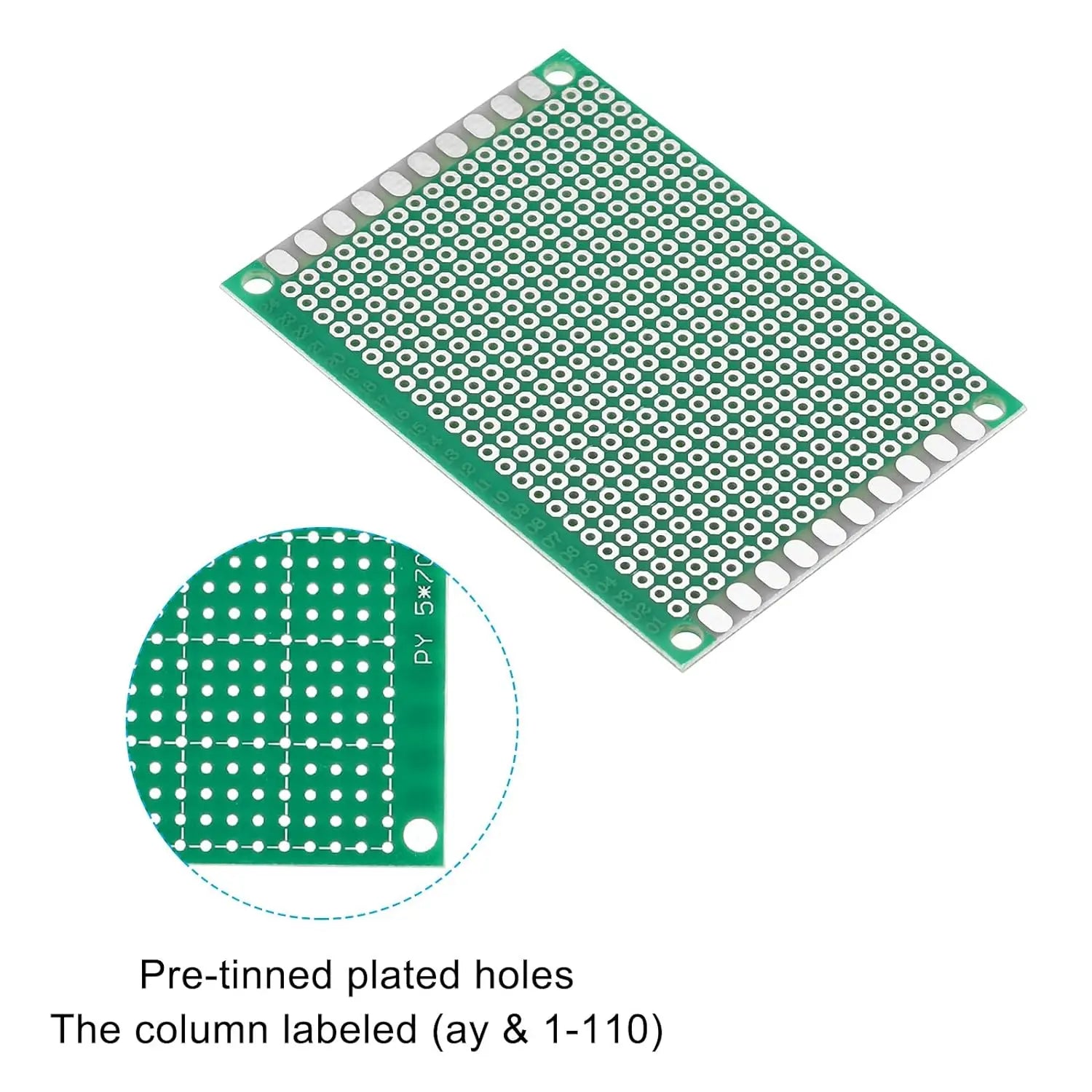

Holes: Pre-tinned

Dimension: 4x 6/ 3x 7/ 5x 7/ 2x8 cm

Quantity: 20 pieces in total of 4 different sizes

Thickness: about 1.6mm

Hole-pitch: 2.54 mm / 0.1 inches

Hole-diameter: 1 mm / 0.039 inches

Material: glass fiber FR-4

Color: Green

Package List:

5pcs 4 X 6CM double-sided PCB board with 280 holes

5pcs 3 X 7CM double-sided PCB board with 240 holes
