SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

High-concerned chemical: None

Origin: Mainland China

Output: Analog Sensor

Theory: Resistance Sensor

Use: Pressure Sensor

• [Enhanced Sensing Capabilities] - Incorporating advanced embedded infrared, eye-safe laser, and high-speed photon detection arrays, the VL53L0X offers longer distance measurements with increased speed and accuracy.

• [Versatile Applications] - Supports various functionalities, including gesture sensing, obstacle detection for robots, presence detection for home appliances, and power switch monitoring for laptops.

• [Precision Measurement] - Utilizes flight sensing technology, allowing precise measurement of the time taken for an infrared pulse to reach and reflect back from obstacles.

• [Long-Range Measurements] - VL53L0X integrates a flight time measurement system in a compact module, providing distance reports with a resolution of 1 mm up to a distance of 2 meters.

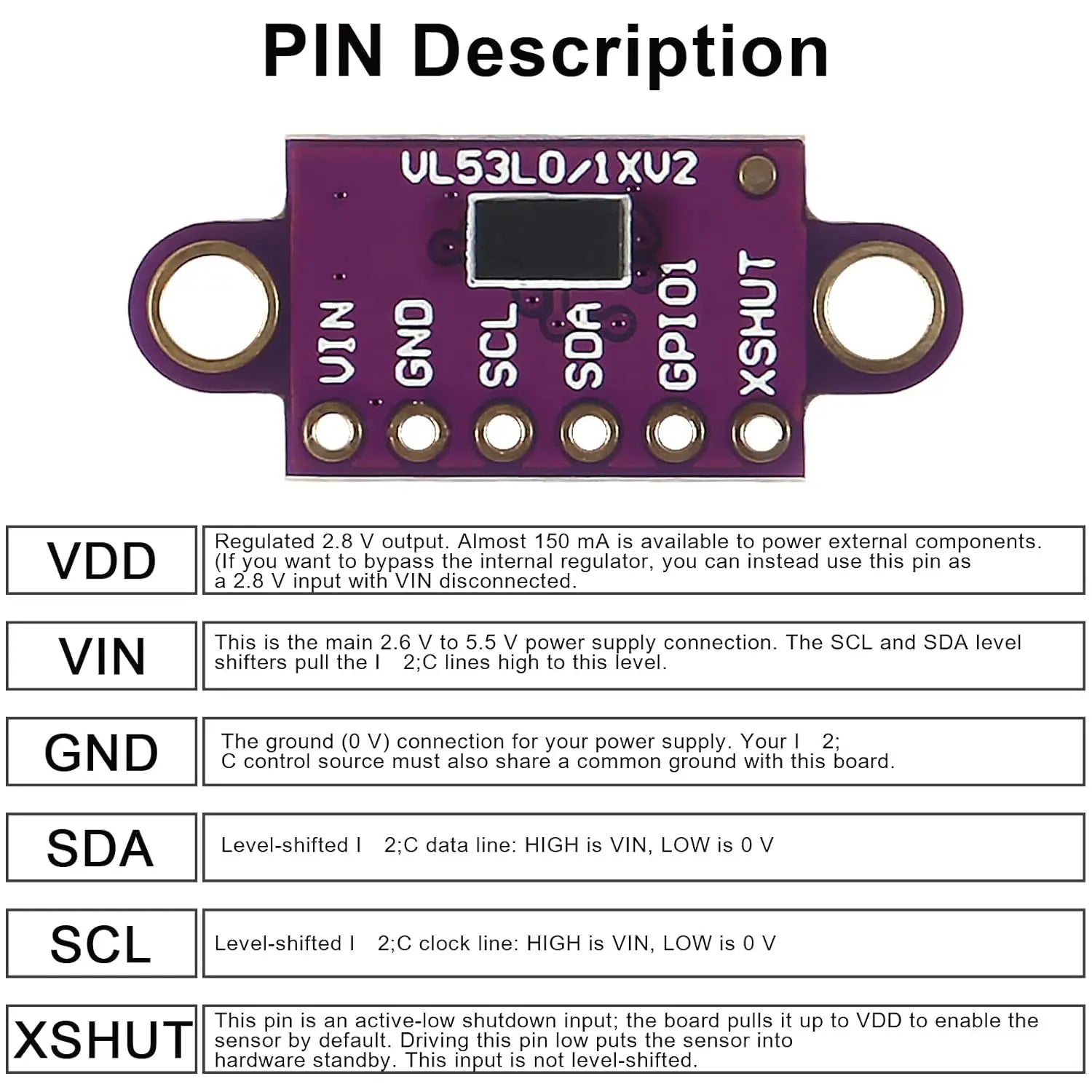

• [Wide Compatibility and Interface] - Operates within a 2.6V to 5V DC voltage range, uses 940nm infrared light, and communicates data to microcontrollers through the I2C interface.
