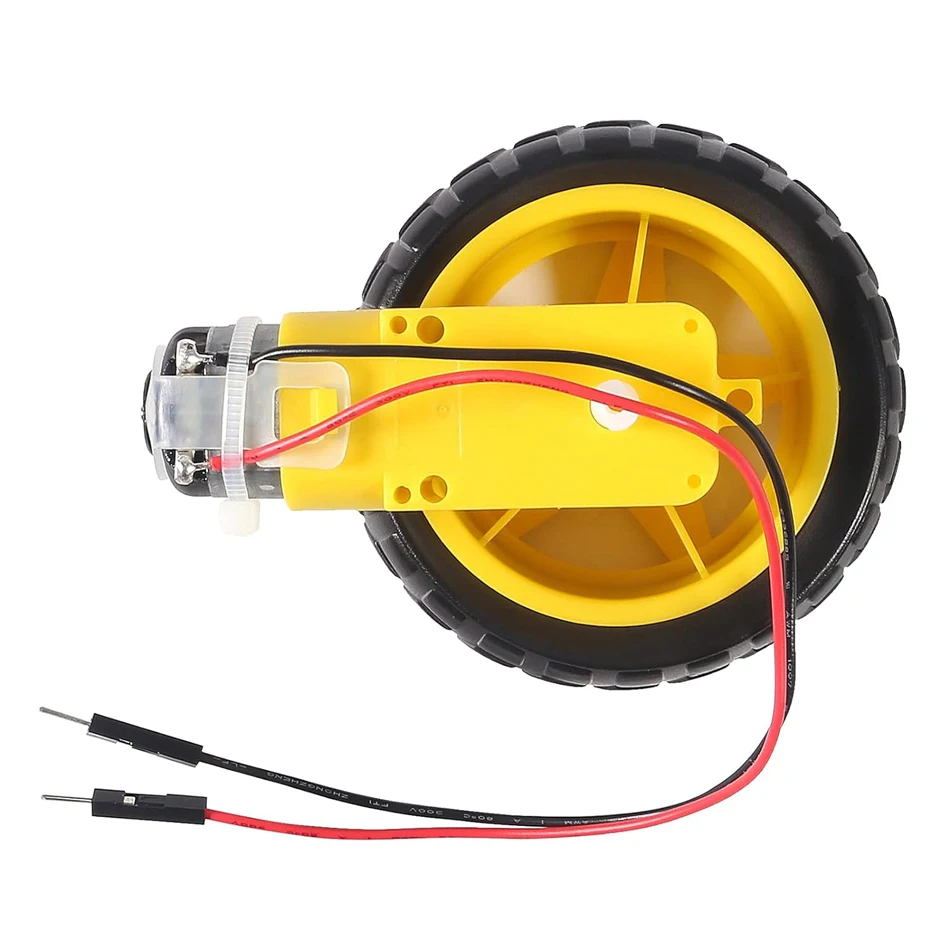

• This is a TT DC Gearbox Motor with a gear ratio of 1:48, and each comes with 2 x 200mm wires with breadboard-friendly 2.54mm(0.1") male connectors.

• Dimension of the Tire: Outside Φ65mm/2.56"; Width 27mm/1.06".

• Maximum torque: 800k.cm. Also compatible with the motor whose reduction ratio is 1:120.

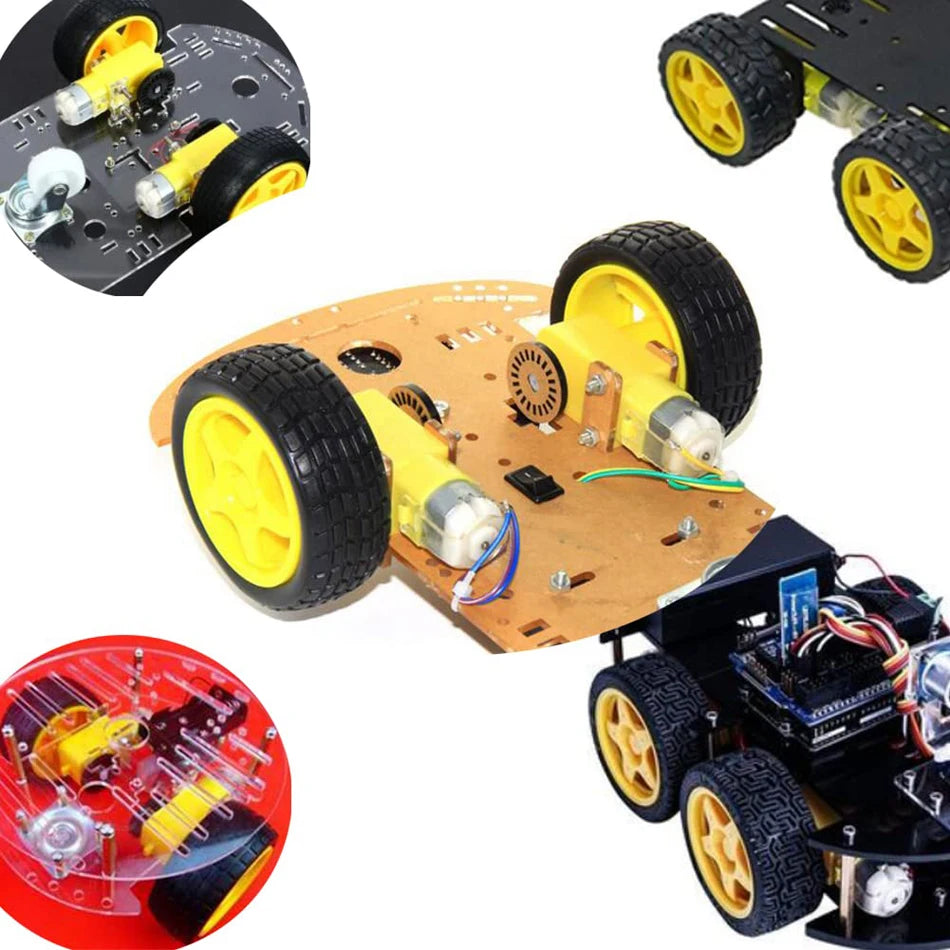

• Great for RC car DIY or other electronic production.

Motor:
This is a TT DC Gearbox Motor with a gear ratio of 1:48, and it comes with 2 x 200mm wires with breadboard-friendly 2.54mm(0.1") male connectors. Perfect for plugging into a breadboard or terminal blocks
Rated Voltage: 3 -- 6V
Continuous No-Load Current: 150mA ± 10%
Min. Operating Speed (3V): 90 ± 10% RPM
Min. Operating Speed (6V): 200 ± 10% RPM
Torque: 0.15Nm -- 0.60Nm
Stall Torque (6V): 0.8kg.cm
Gear Ratio: 1:48
Material: Plastic

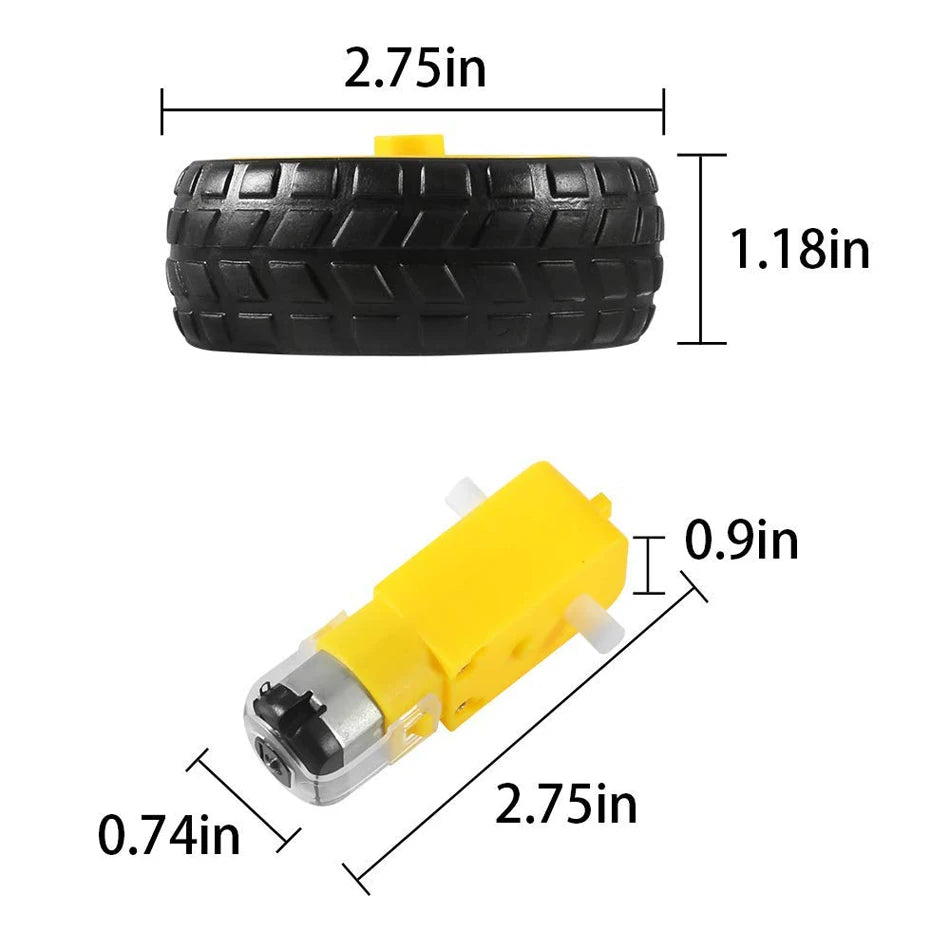

Body Dimensions: 70 x 22 x 18mm
Wires Length: 200mm 28 AWG
Product Weight: 29g / 1.02oz
Noise: <65dB

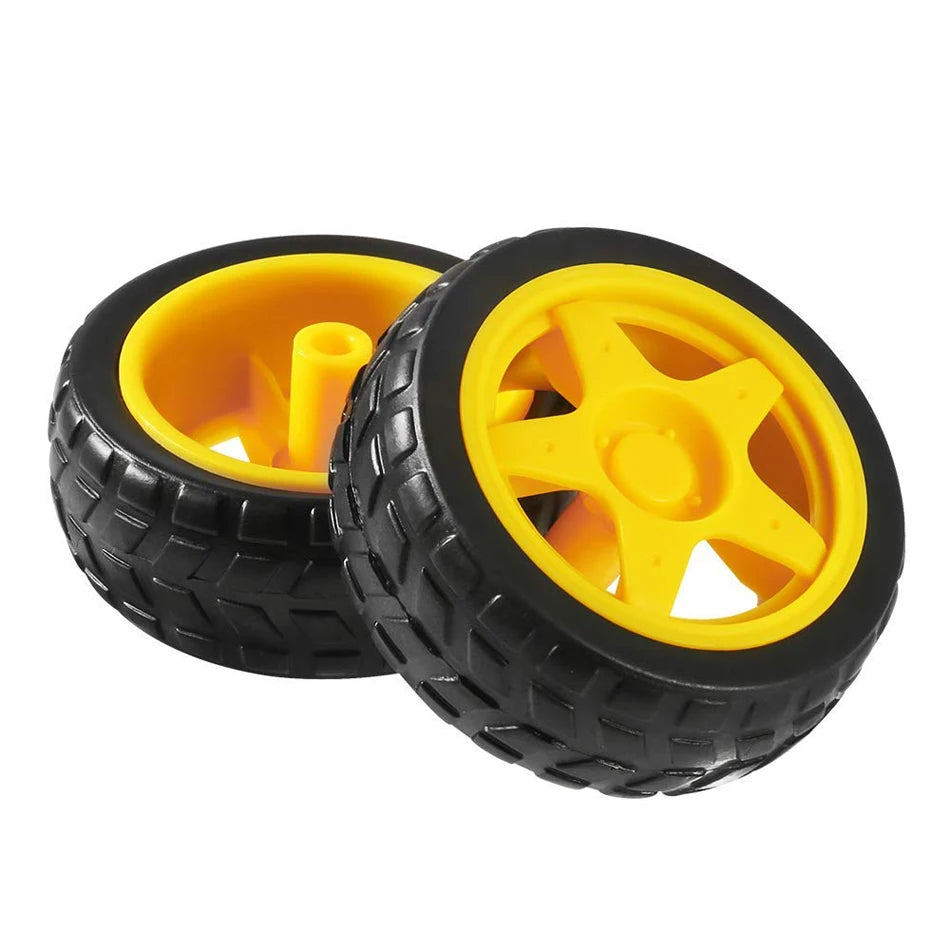

Wheel Parameter:
Center hole: 5.3MM x 3.66MM
Wheel diameter: 65mm
Wheel thickness: 28mm

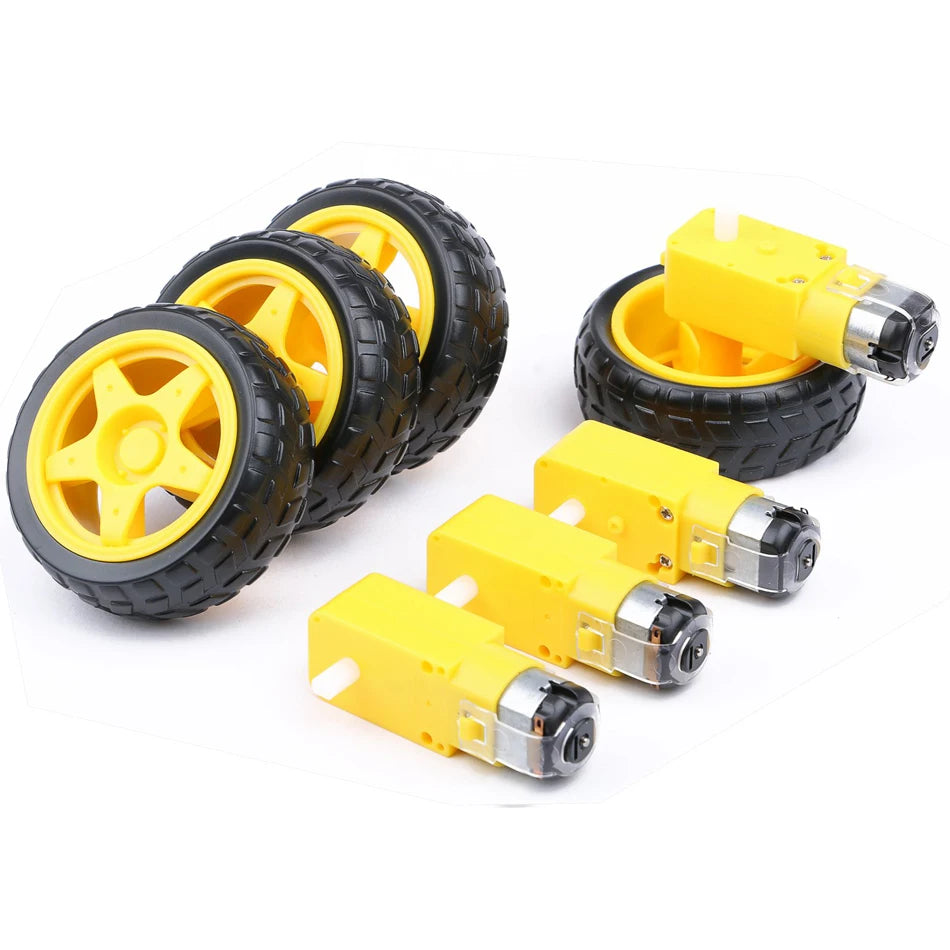

Package Includes:

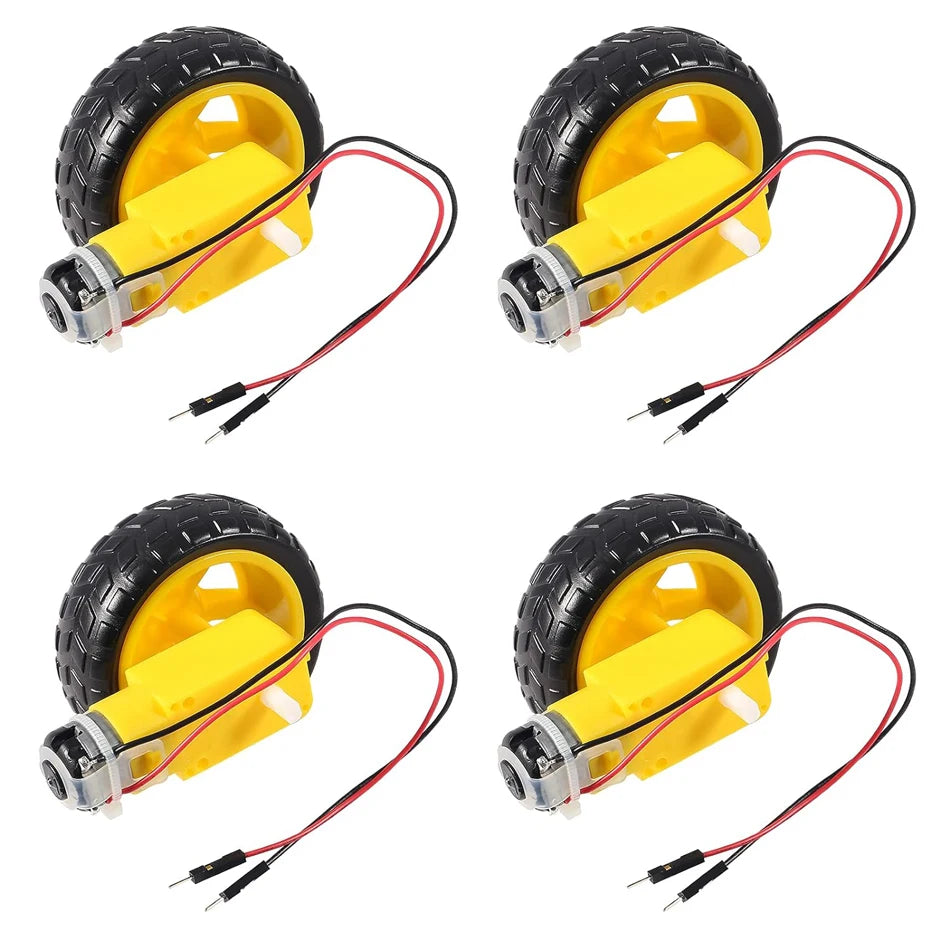

4 x DC Gear Motor
4 x Smart Car Robot Plastic Tire Wheel with/without 2 x 200mm wires
