SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

Condition: New

High-concerned chemical: None

Origin: Mainland China

Type: Relay

• 【Application】 --- This is a great 400W DC / DC boost power module for electrical devices, digital products, laptops, etc. It can also be used as a driver for high power LED lights or voltages controllers for solar panels are used.

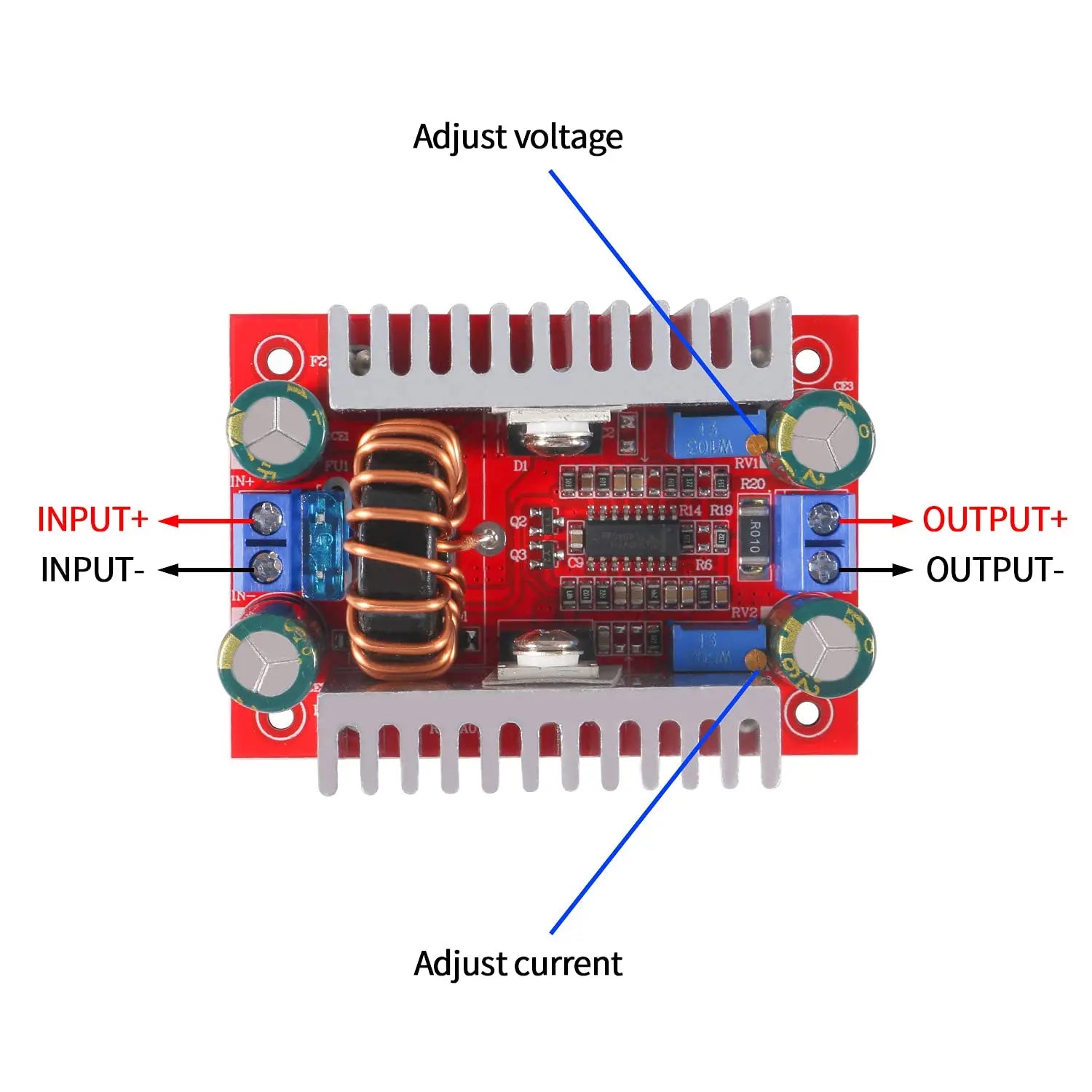

• 【Output Adjustment】 --- Adjust the potentiometer "CV-ADJ" clockwise to decrease the voltage, counterclockwise to increase the voltage. Adjust the potentiometer "CC-ADJ" counterclockwise by 30 circles to minimize the output current before connecting. Then adjust "" CC-ADJ "" clockwise to the current value.

• 【High efficiency】 --- High efficiency, the maximum conversion efficiency can be 96%, and the efficiency depends on the input / output voltage, current and voltage difference. Input voltage: DC8.5V to 50V; Output voltage: DC 10 V to 60 V, max. Input current: 15A; Max. Output current: 12A.

• 【Overcurrent 】 --- If the input current is more than 15A, the output voltage will be reduced automatically. However, reverse input is not used. When using the module to the battery, connect it to the outlet after the battery is completely discharged.

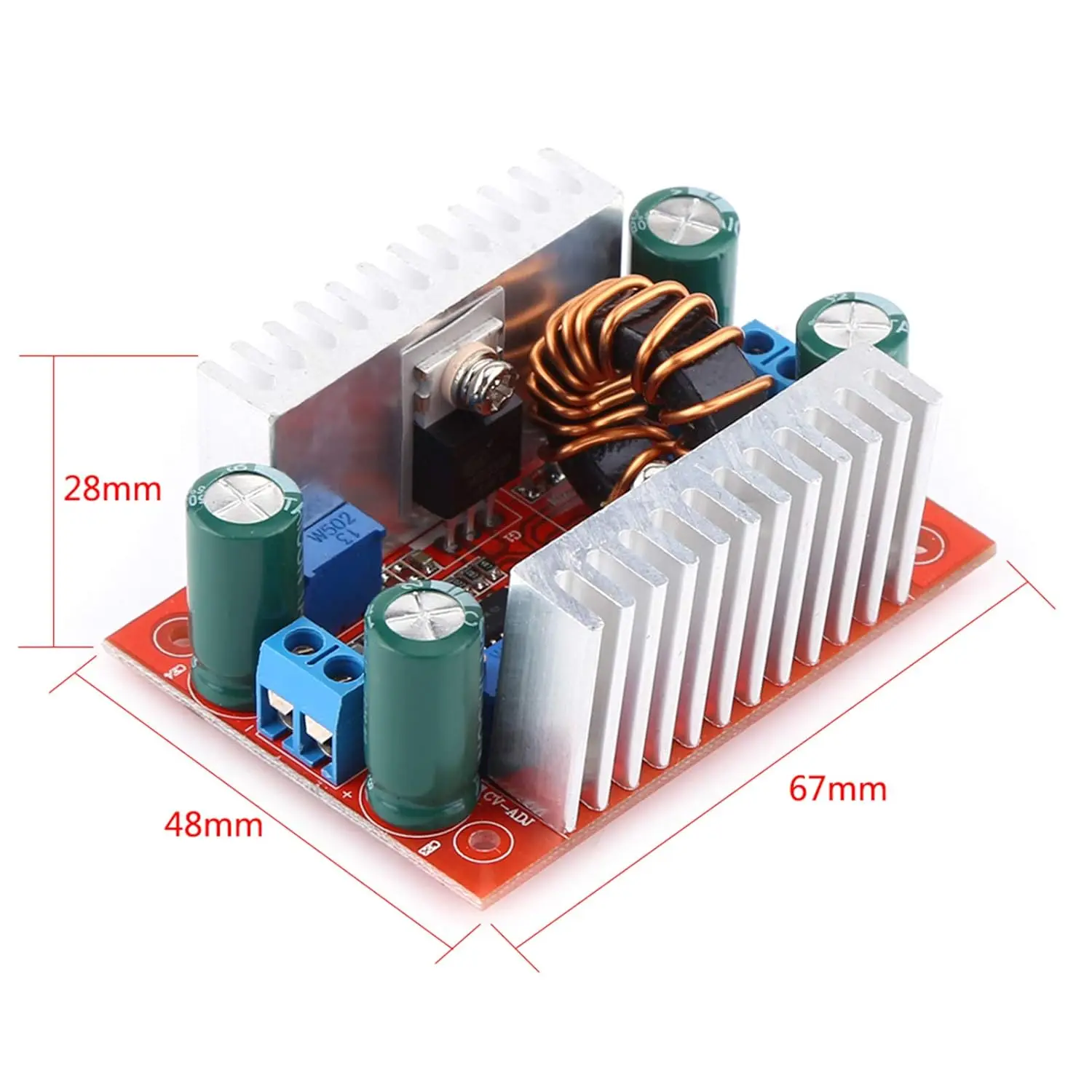

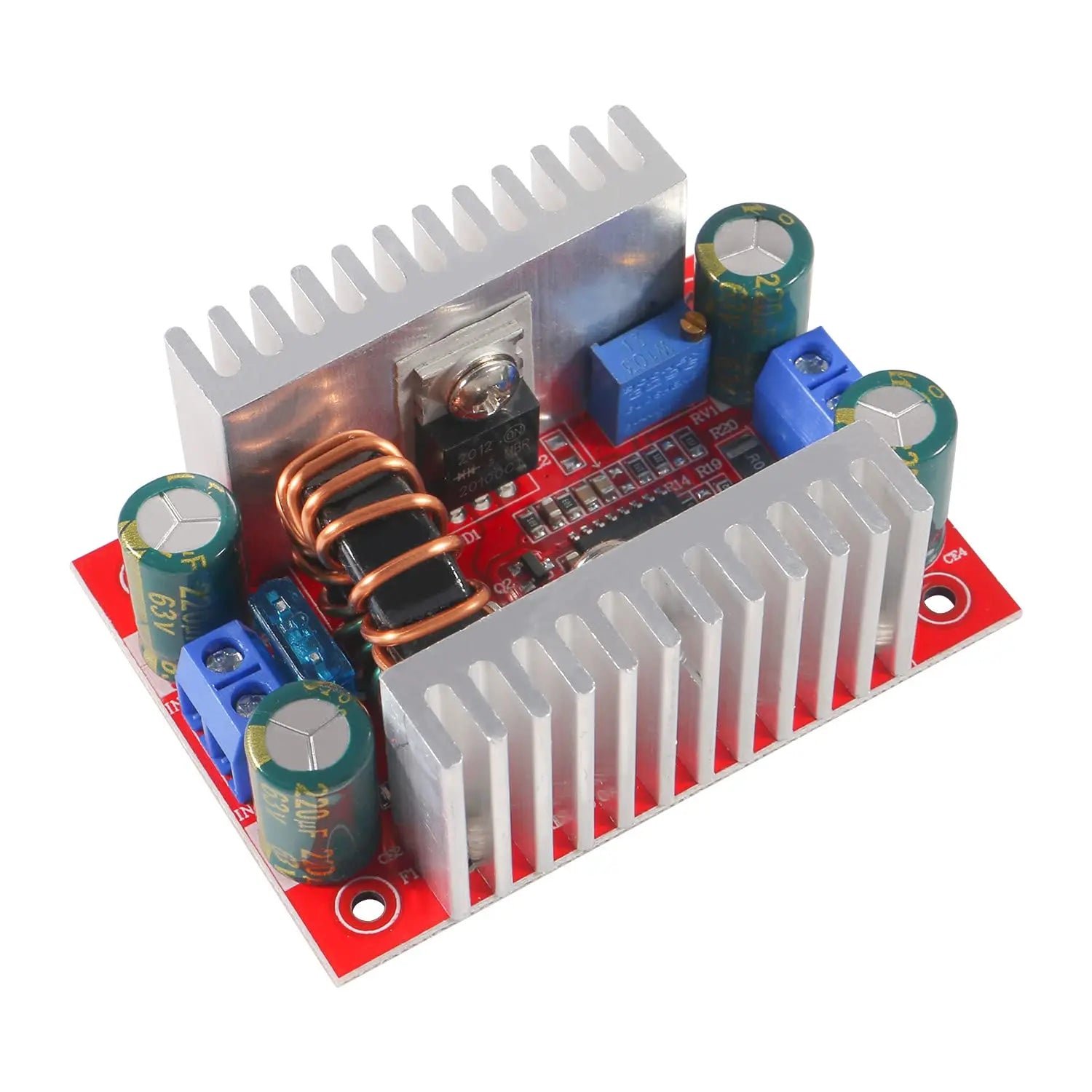

• 【Practical】 --- There are 2 heat sinks, which ensure better heat dissipation. The operating temperature is between -40 ° C and 85 ° C (If the temperature is too high, please improve the heat dissipation). The input and output are equipped with screw terminals for convenient cable connection and disconnection.
