SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

High-concerned chemical: None

Model Number: 40PCS/20pairs Solar Connector with 3pcs Spanners IP67 Waterproof Solar

Origin: Mainland China

Voltage: 380 V

40PCS Solar Connector with Spanners IP67 Waterproof Solar Panel Cable Connectors Male/Female 20Pairs(10AWG)-1 Spanner

Features:

• VALUE FOR MONEY: With 22 pairs of solar panel connectors£¨Male & Female£and 22 pairs of solar connector pins (Male & Female). In addition, we will present a pair of spanners to you in order to easy your installation.

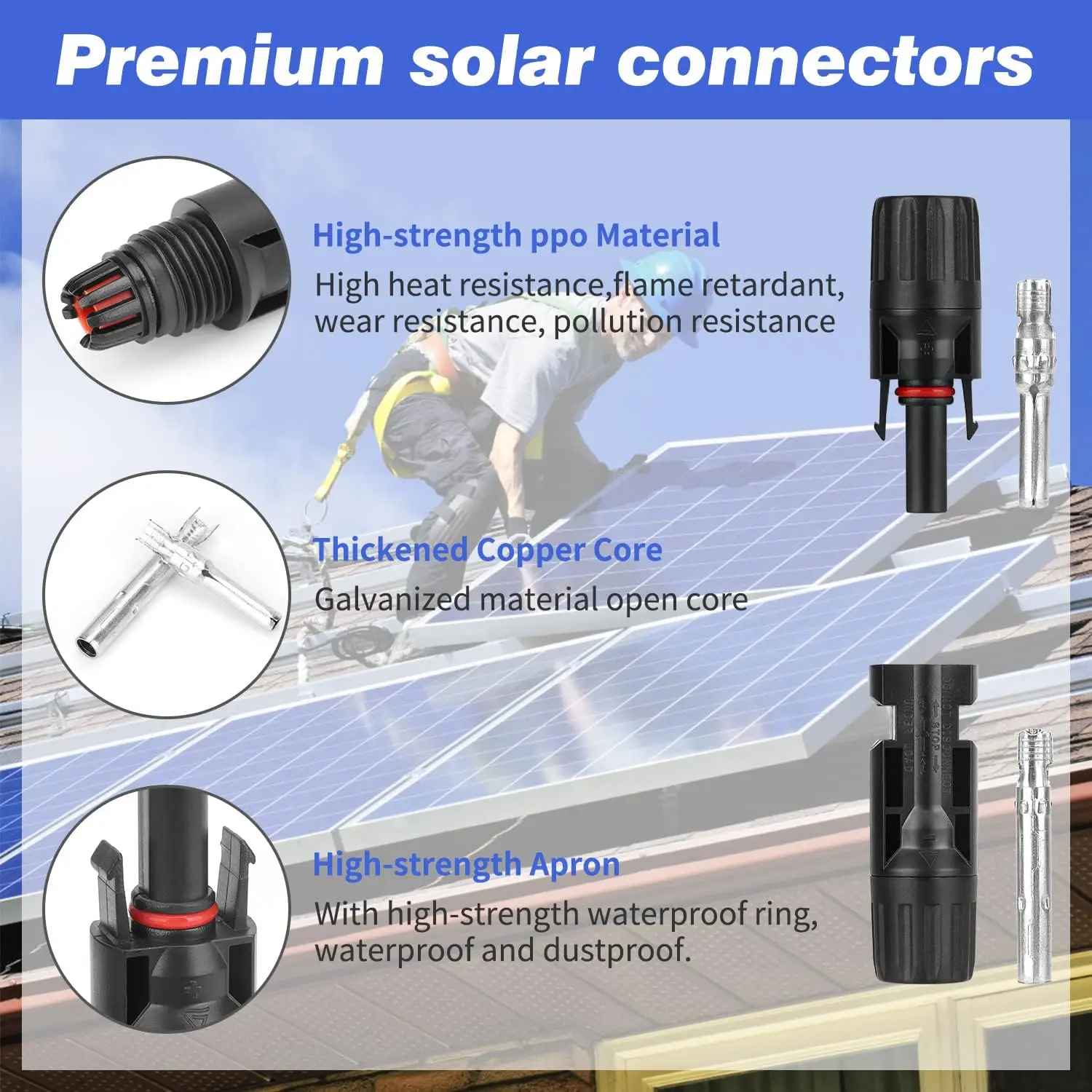

• CONDUCTOR PIN IS TINNED COPPER: It makes a rock-solid connection after crimping the pin into the wire and tighten the connectors, also, these solar connectors can keep operating perfectly under heavy load.

• WIDE APPLICATIONS RANGE: Compatible with PV cables (Solar Cable) with different insulation diameters (13AWG to 10 AWG), which is suitable for solar cables in various specifications on the market.

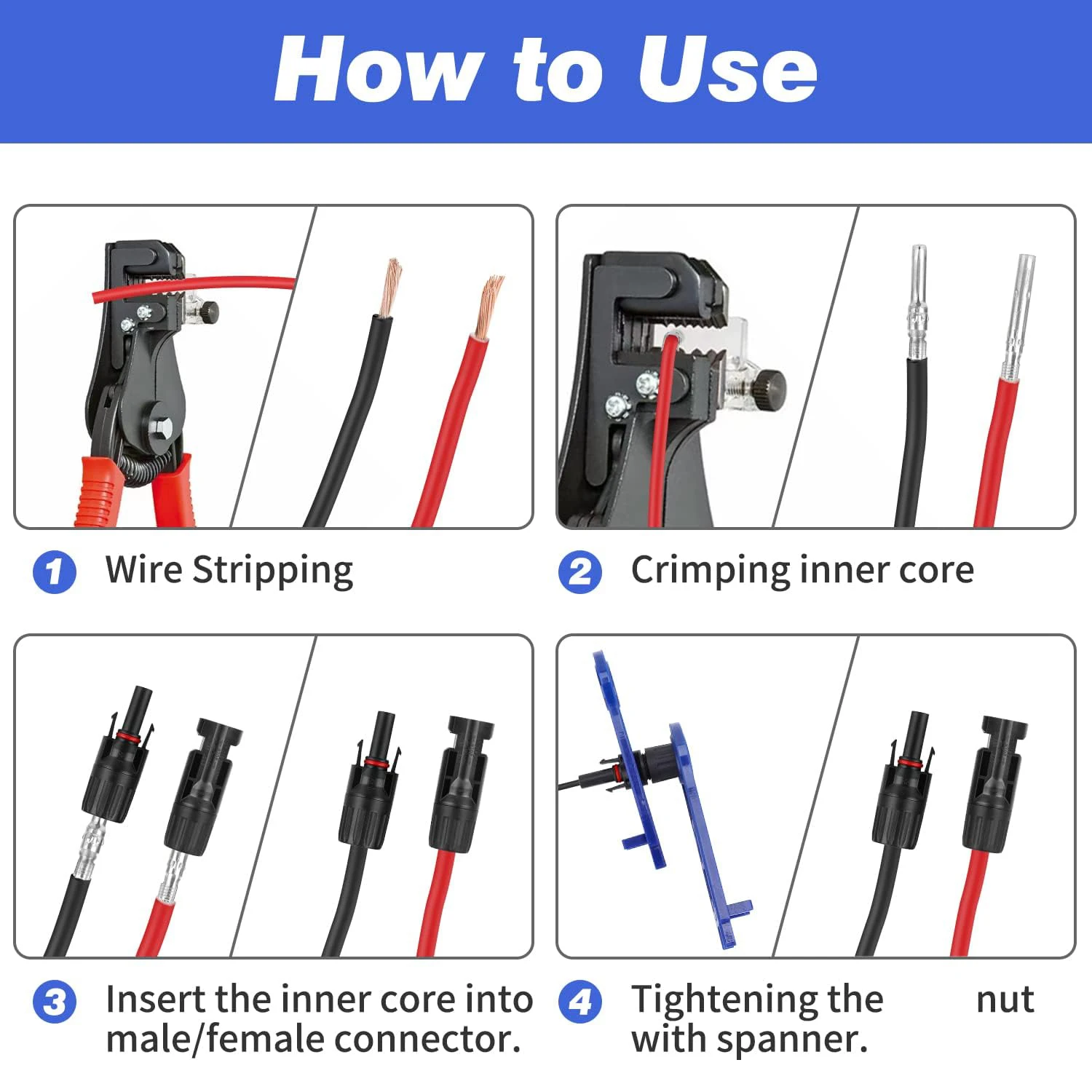

• WATERPROOF DESIGN & EASY INSTALLATION : Waterproof ring on connection is perfect to seal out water and dust to prevent corrosion. Quick & simple assembly processing and simple removal of plugs.

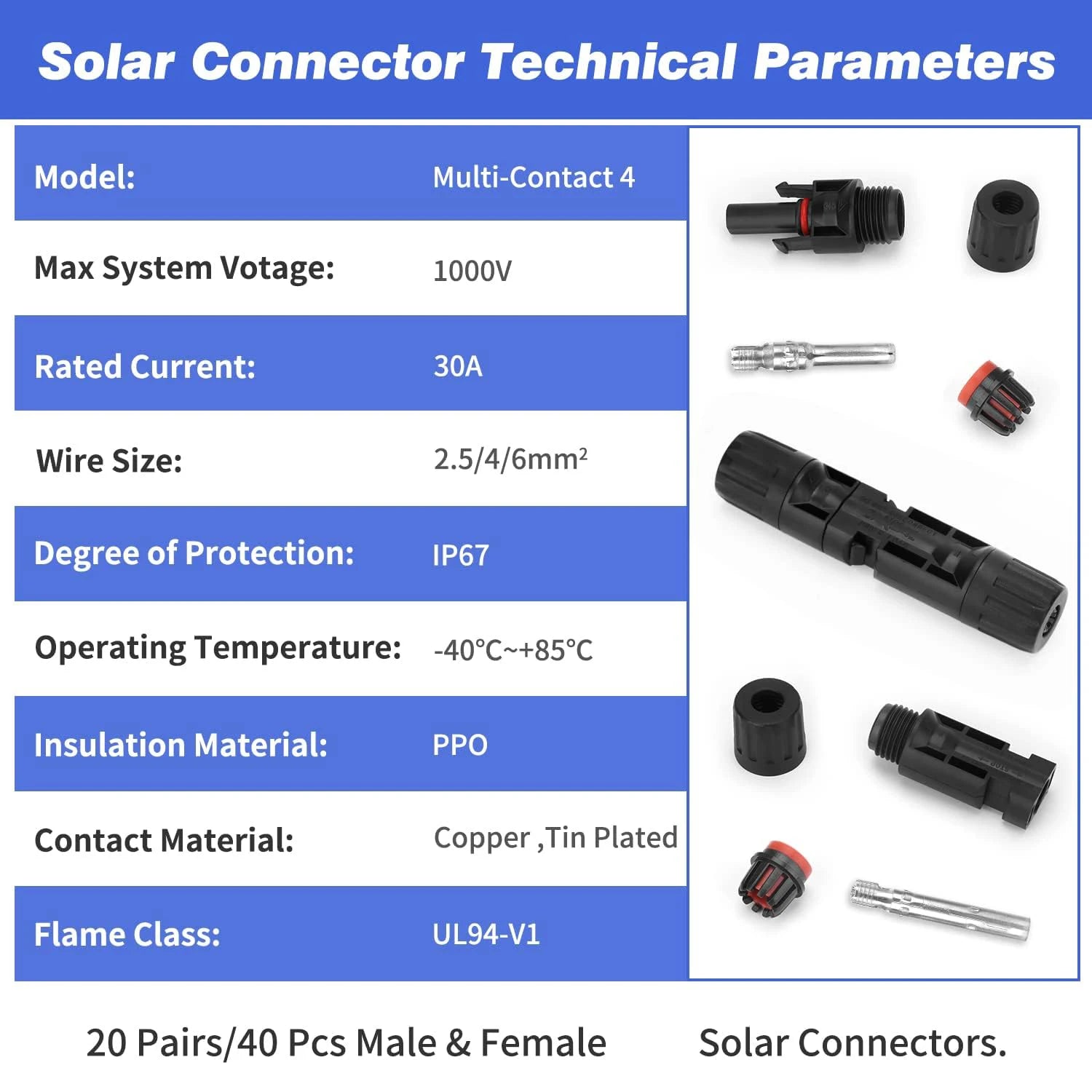

Specification:

 Rated current: 30A (2.5-4.0mm2)

 Rated voltage: 1000V DC

 Connector contact resistance:≤ 0.5mΩ

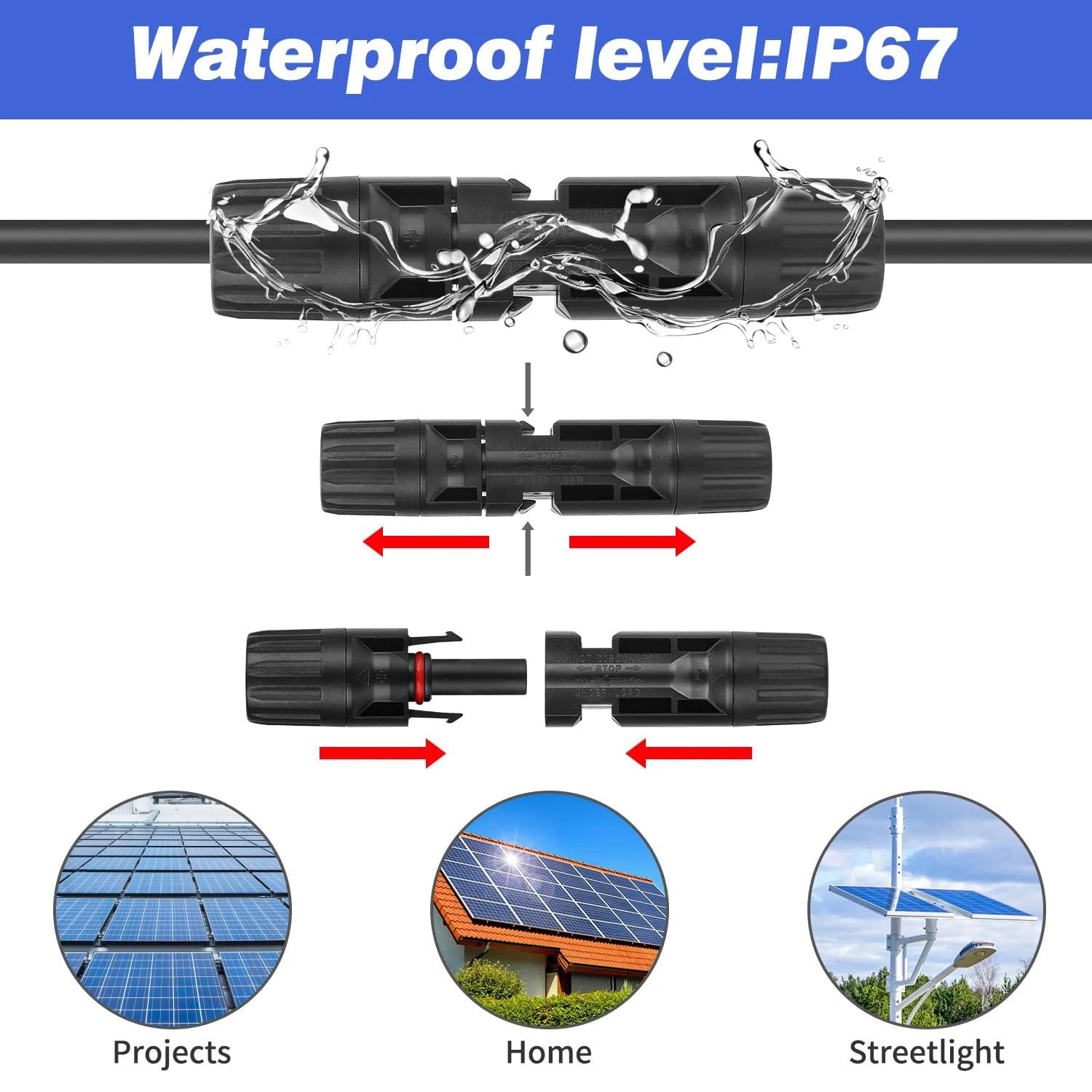

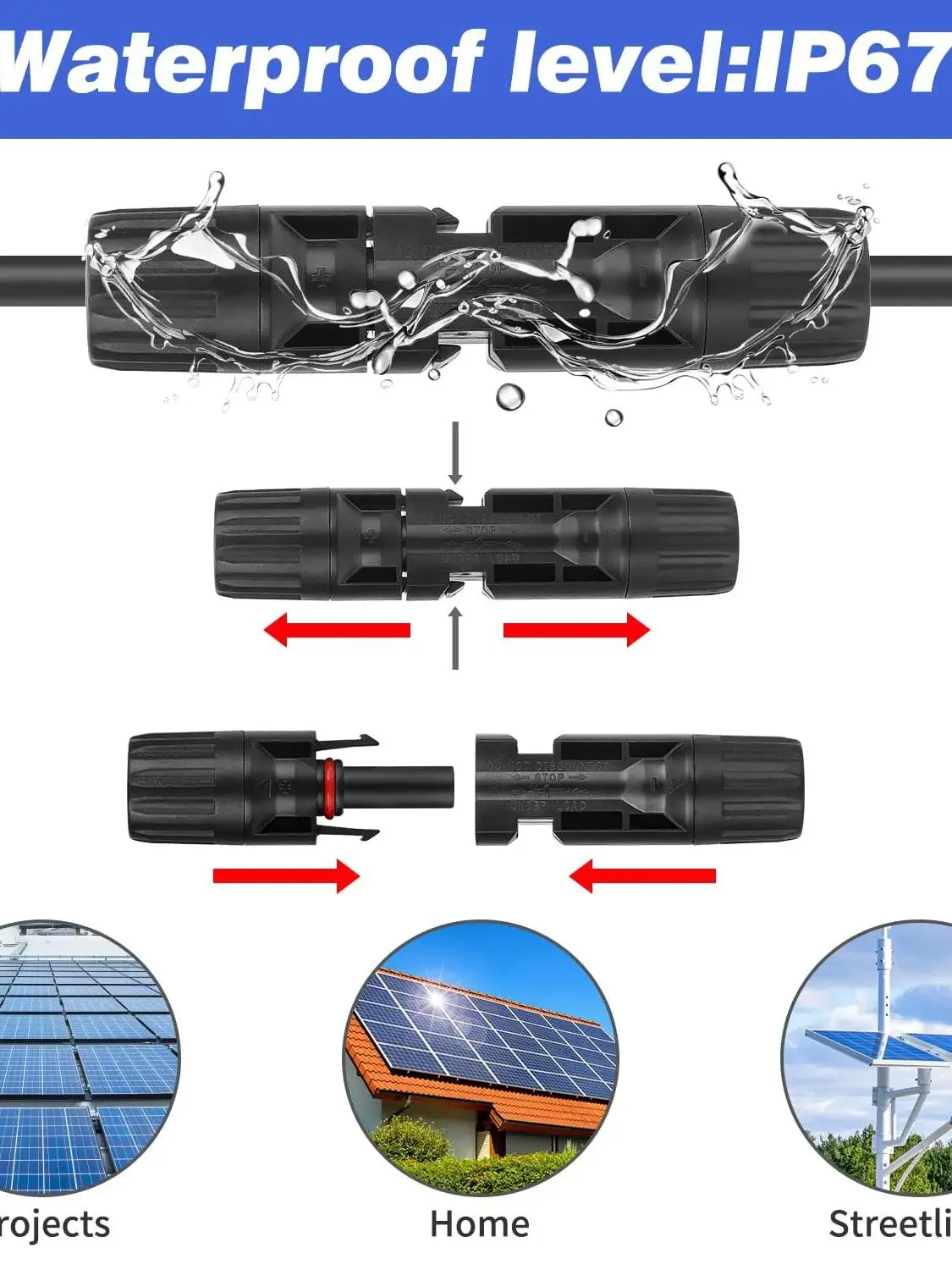

 Degree of waterproof: IP67

 Flammability rating: UL94-V0

 Safety: II

 Adapter Wire: OD 5mm-7mm

 Insertion force: less or equal to 50N

 Withdrawal force: over or equal to 50N

 Operating temperature range: -40℉~ 221℉

 Suitable cable: AWG 14/13/12/11/10

 Connector conductor material: copper, Tin

 Connector Insulation material: PPO or PBT

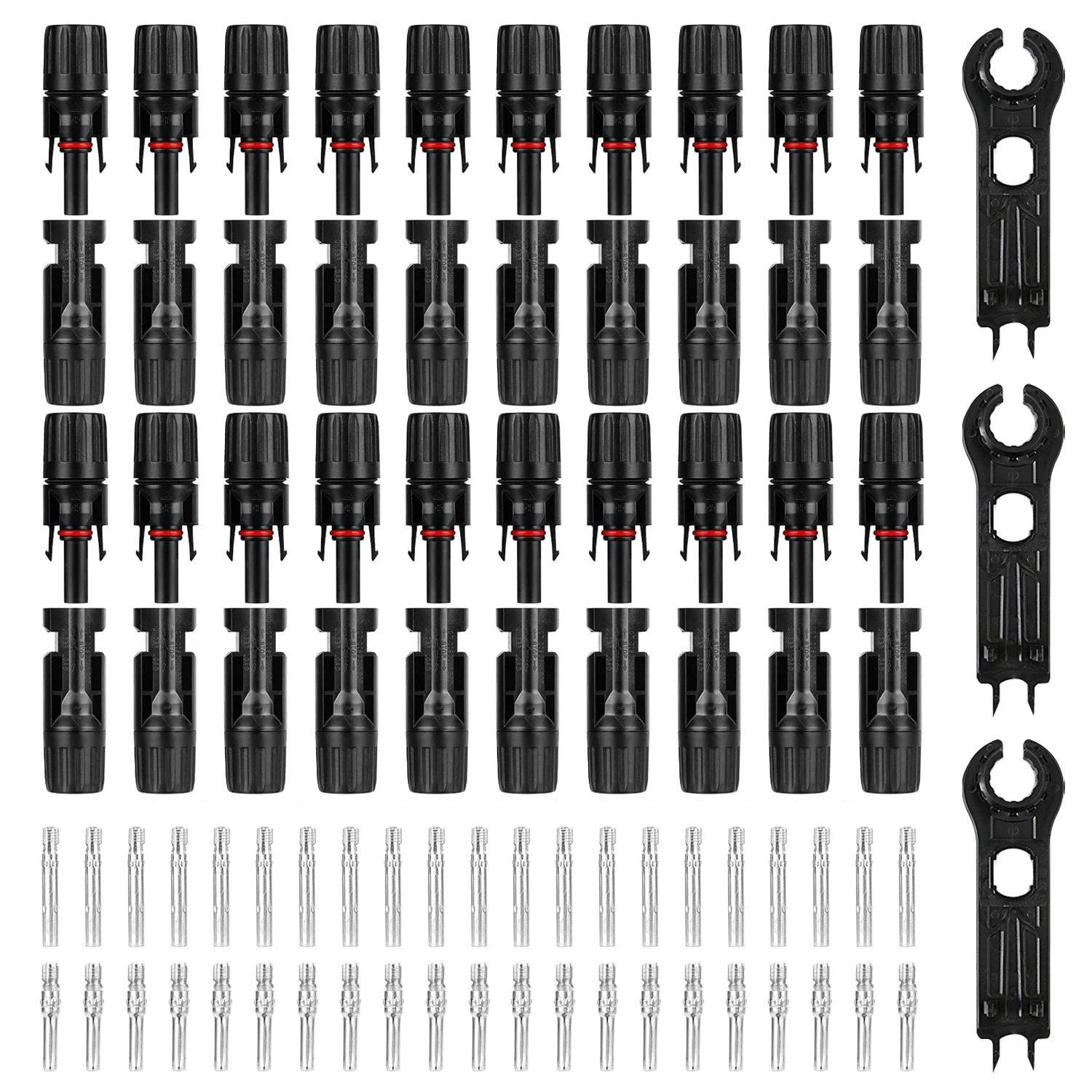

Package included:

• 20 × male solar connectors ( with solar connector pins )

• 20 × female solar connectors (with solar connector pins )

• 3 × solar connector spanners

1. Key away from Fire

2. Due to includeing small parts,please keep away from Children under Three.

3. Please leave 5 star feedback if you're satisfied with our products ad service, we will appreciate it

4. If the products you received was damaged or any more question, please feel free to contact us.
