SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Load Current: 40A

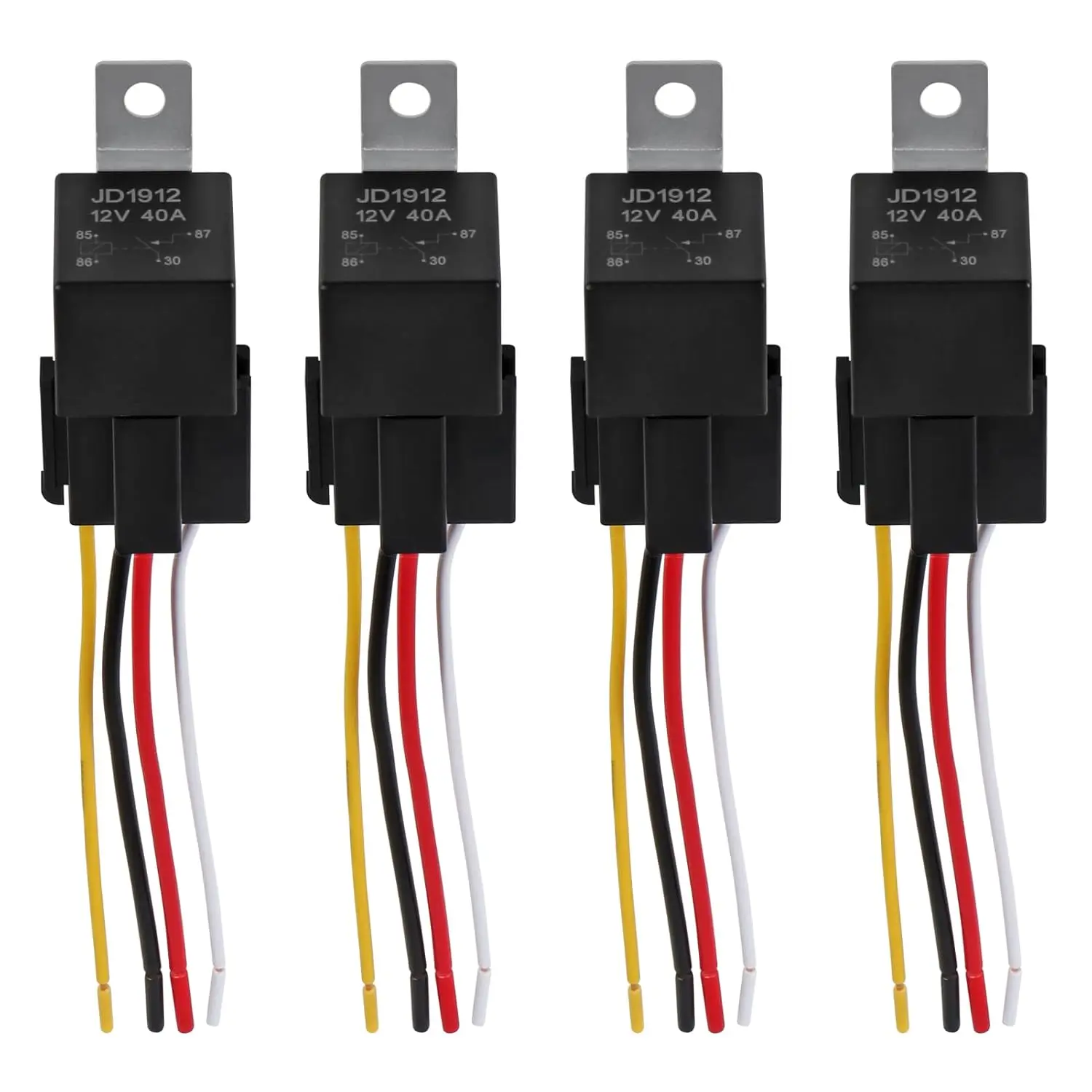

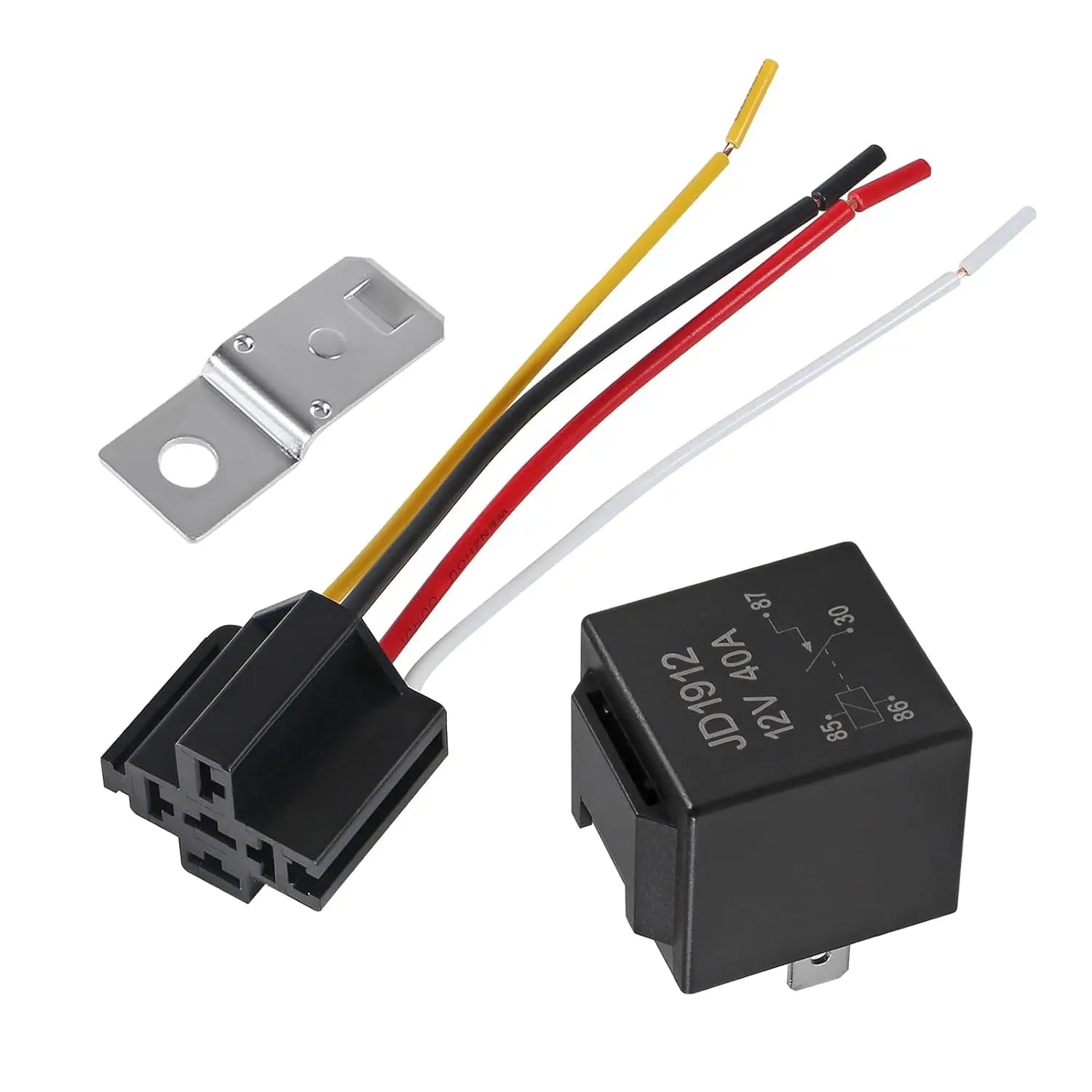

Model Number: 4Pack JD1912 Car Relay Harness 12V 40A 4 Pin SPST 12AWG

Origin: Mainland China

Power Source: DC,DC

Theory: Voltage relay

Use: General Purpose

Voltage: 12V

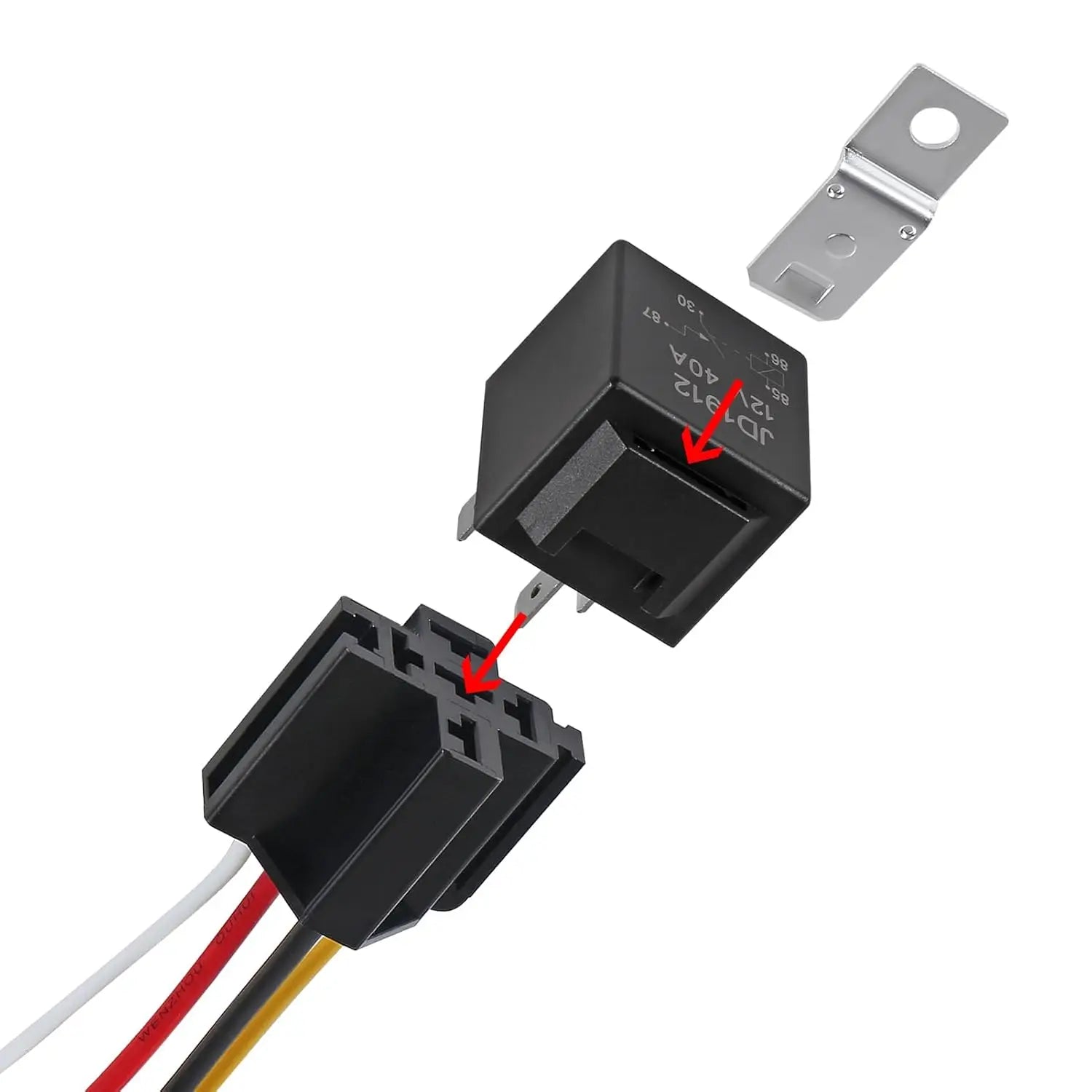

• 40Amp Connector Socket with 4 Terminals design; Relay load: 40A/12VDC

• Suitable for cars and motorcycles Automotive Truck Van Motorcycle Boat

• Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.

• Contact Material: Ag Alloy ; Contact Resistance: ≤ 100MΩ. Life Expectancy Electrical: 100,000 Operation, Life Expectancy Mechanical: 10,000,000 Operation.

• heavy duty SPST(Single Pole Single Throw) relays with color-labeled wires; The 4-Pin relays are tightly sealed with strong cap and seal ring, excellent performance of waterproof, dust proof and moisture proof,
