SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

Condition: New

Model Number: 4pcs Digital Mini Digital Voltmeter 0.28Inch

Origin: Mainland China

Type: Voltage Regulator

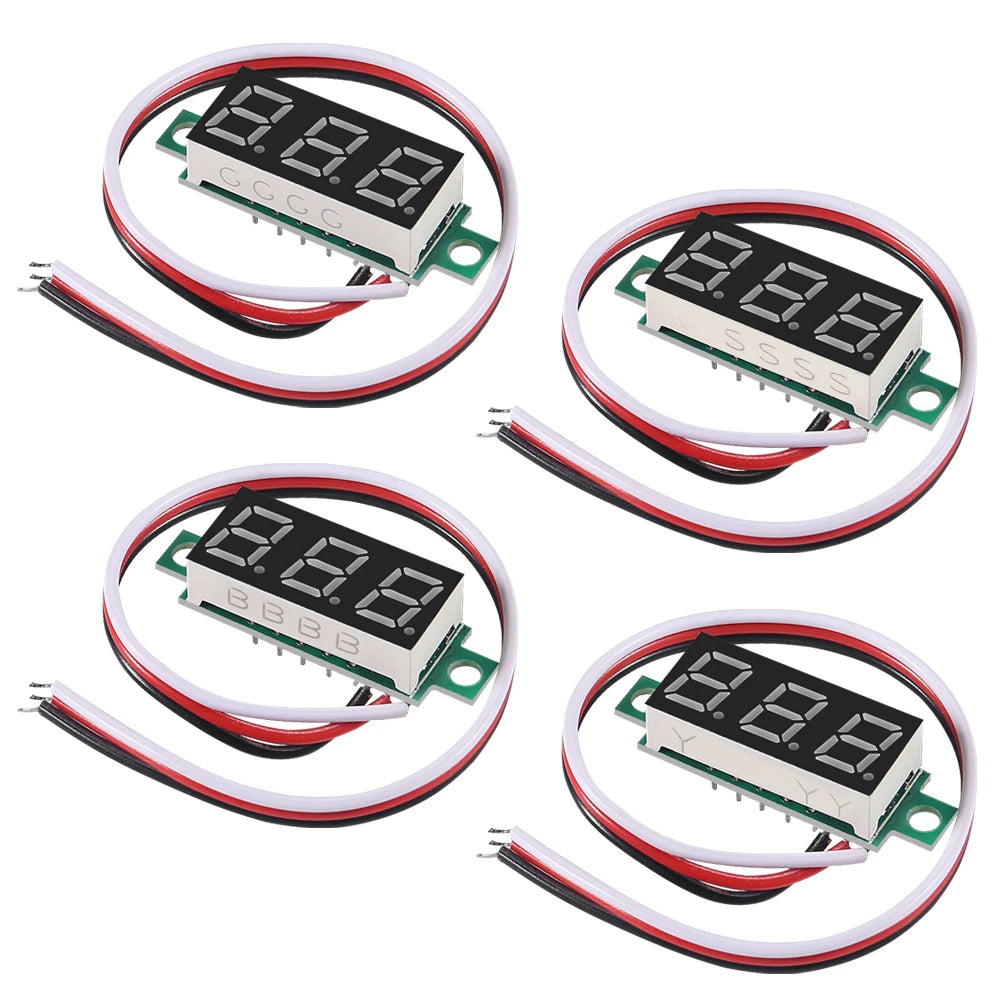

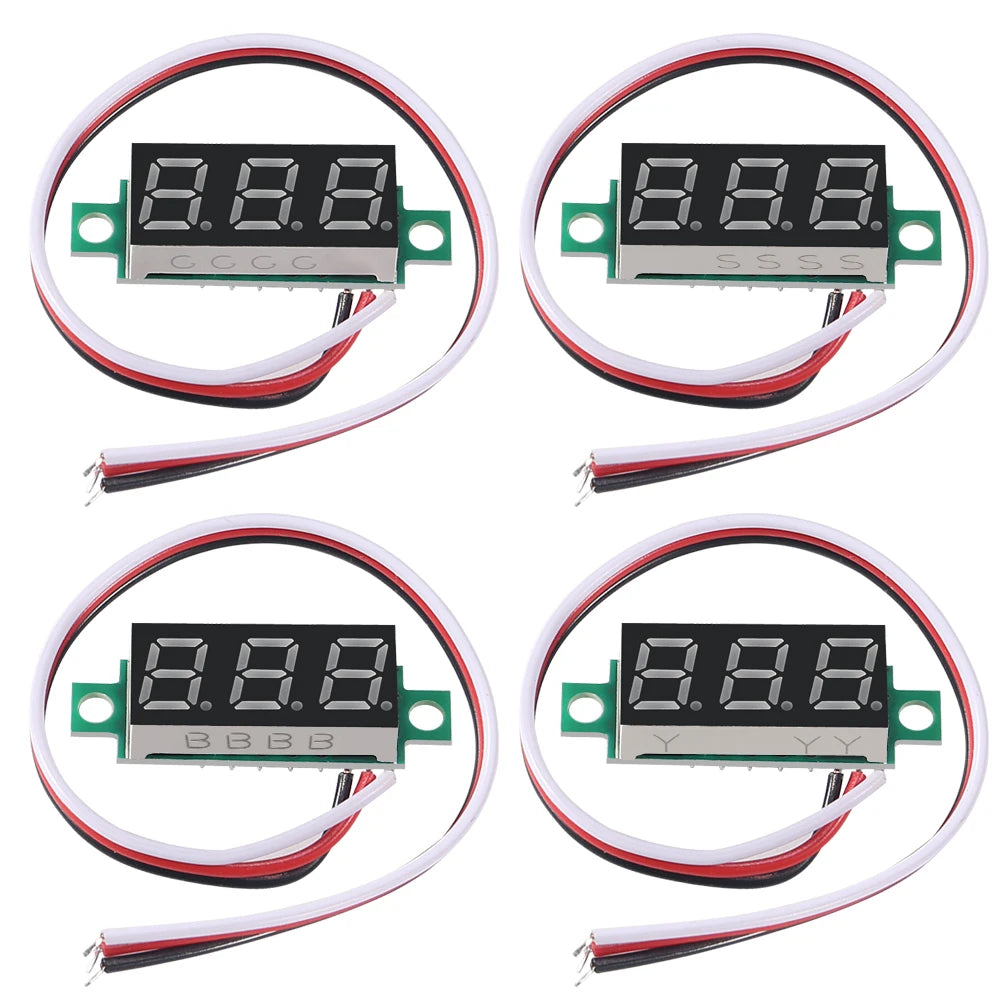

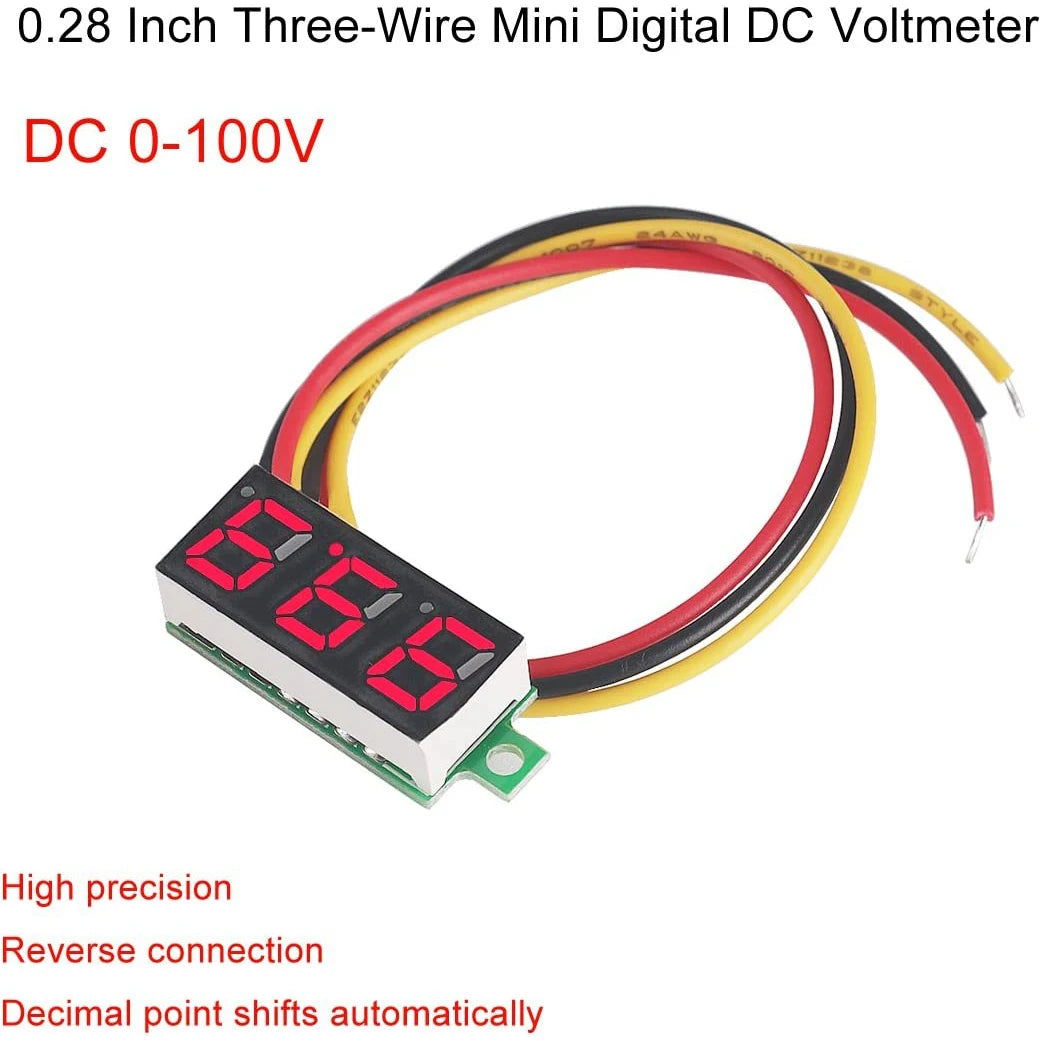

4pcs Digital Mini Digital Voltmeter 0.28Inch Three-Line 0-100V Digital Voltmeter Gauge Tester LED Display Panel Voltmeter Display Panel Mount

Features:

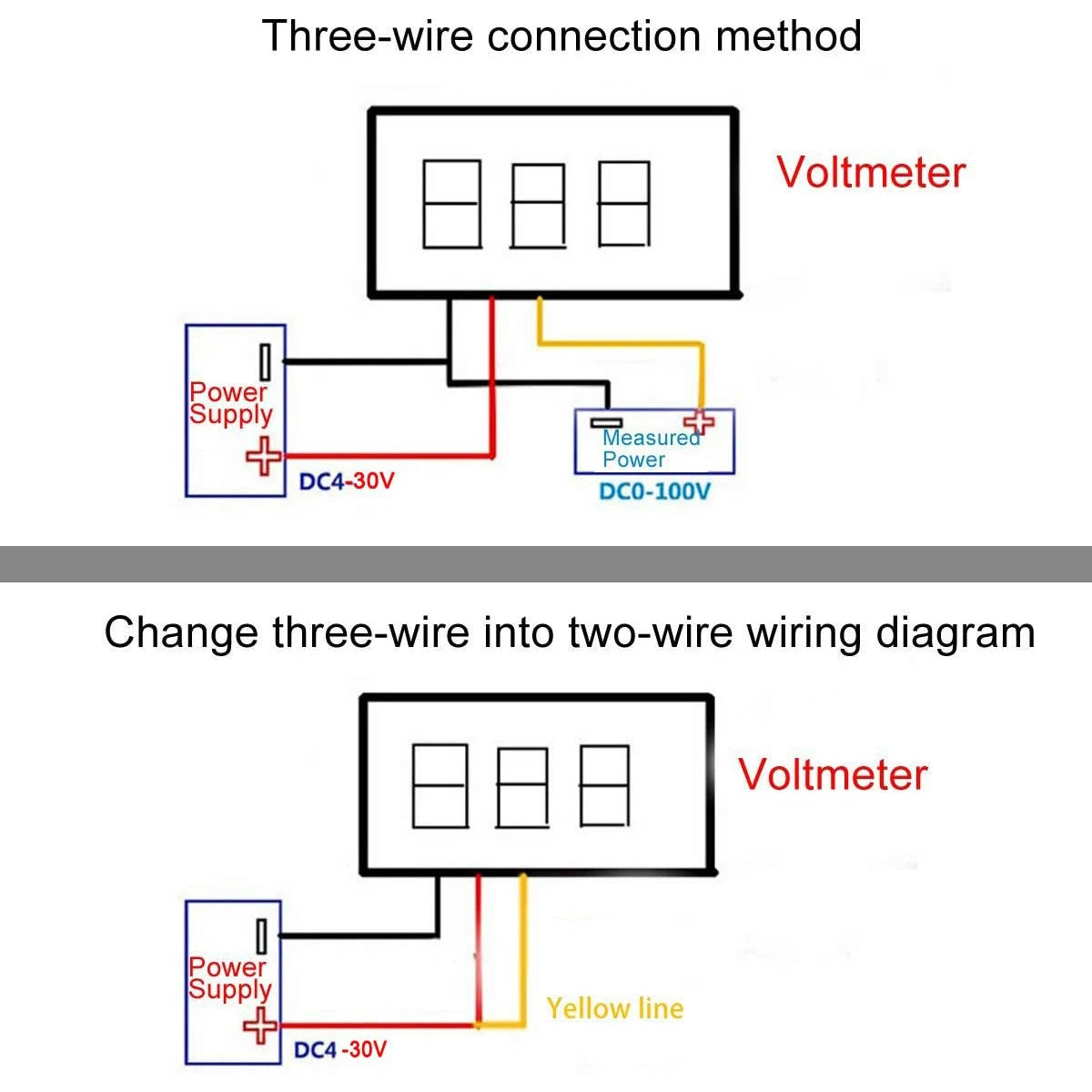

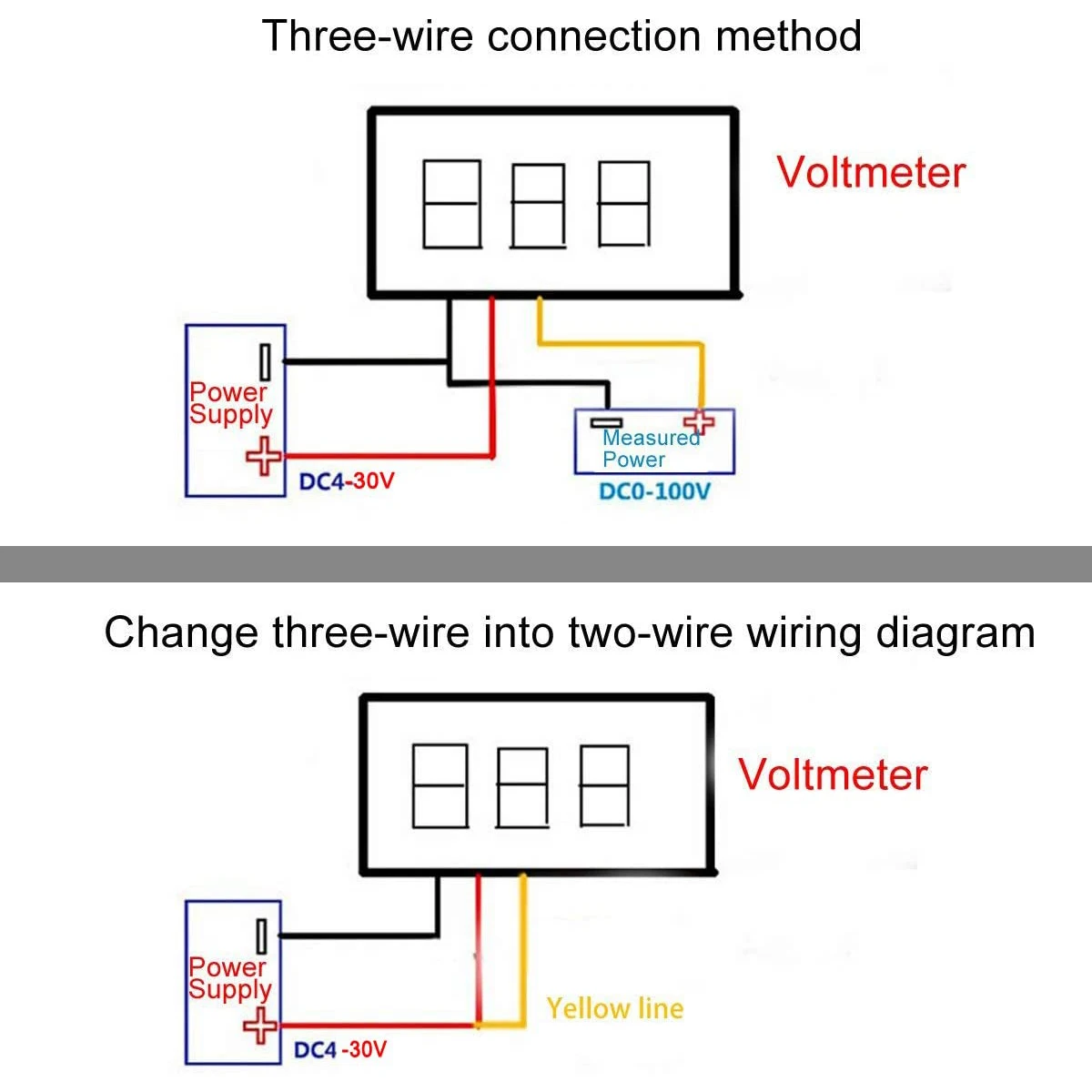

• 2 Connection Methods:3 wires are connected separately to measure voltage and power(yellow red is both forpos, black isneg); 3 wires are used as 2 wires, connected to measure voltage and Yellow can be pair forpos, black isneg).

• Mini Voltmeters:Total 4PCS, 4 colors optional each one; 0.28 inch LED Panel; small in size and light in weight.

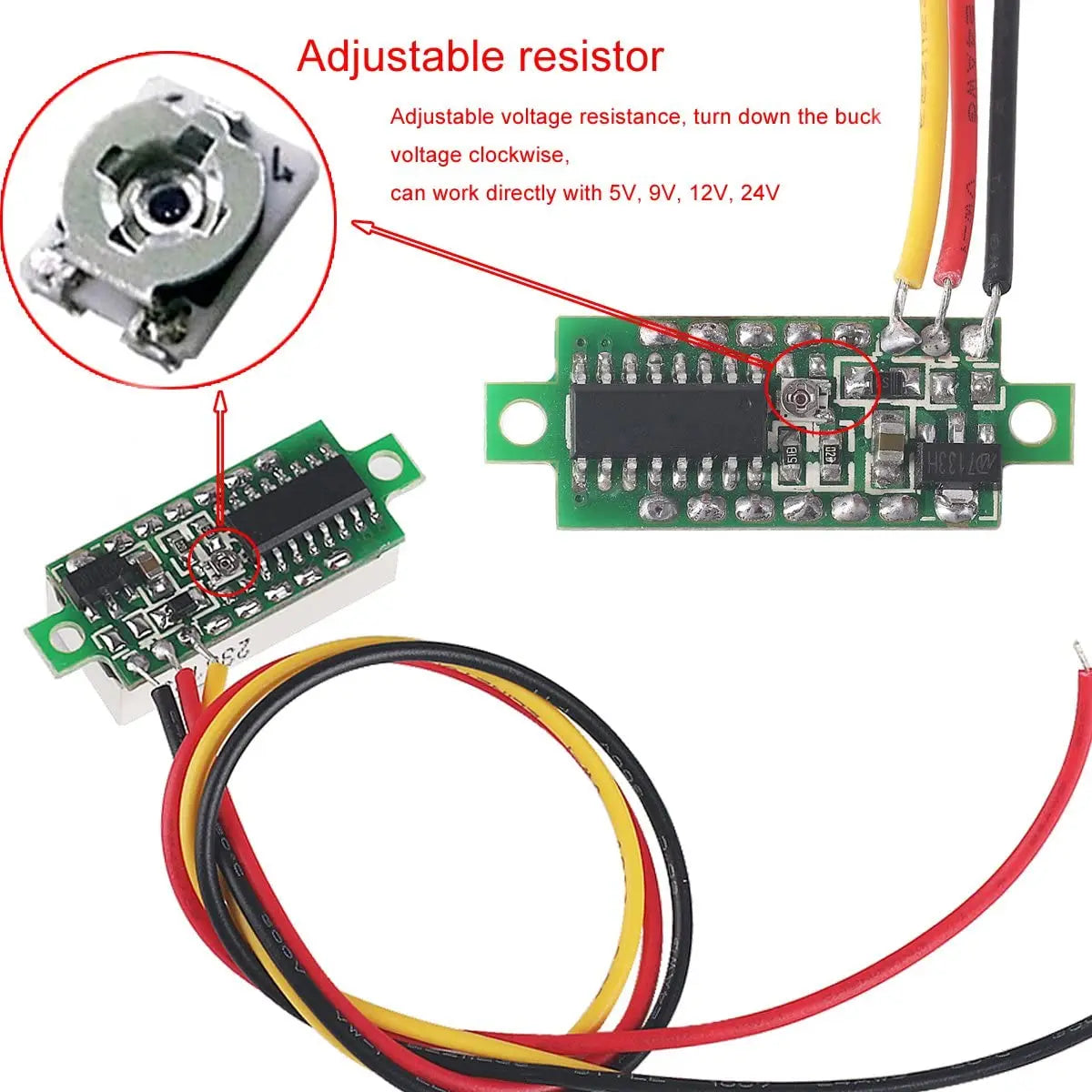

• Features:Reverse polarity-protection, voltmeter will not burn out if reverse-polarity is applied; high-precision; low starting working voltage; fine adjustment function.

• Good quality: This product is made of high-quality materials, exquisite workmanship, very good quality and long service life.

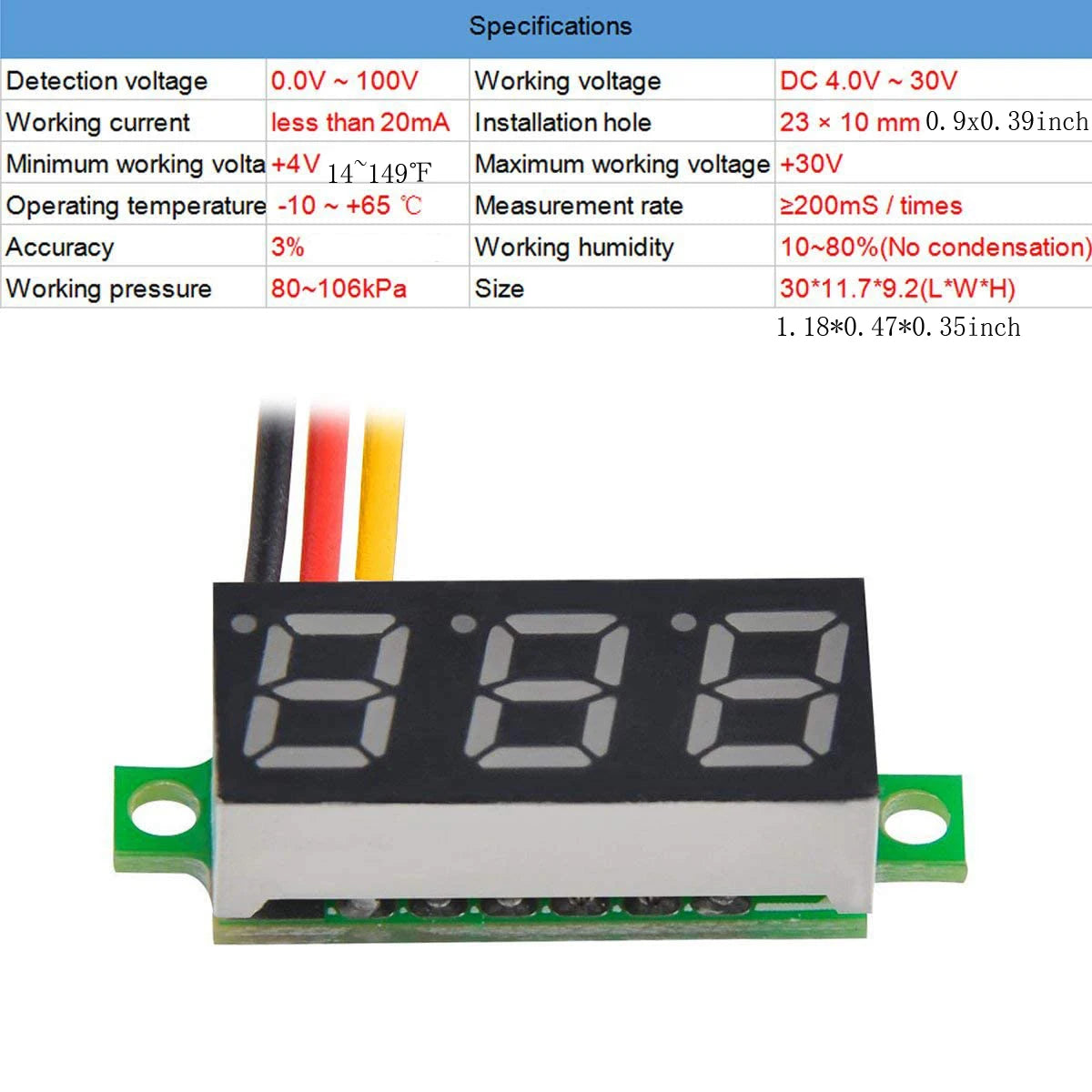

Specifications:

Measuring range: three-wire DC 0~100V

Working voltage: 4~40V (with reverse connection protection), higher than 40V may be damaged

Test accuracy: ±1% >10V error positive and negative 0.2V <10V positive and negative 0.03V

Input impedance: 50KΩ

Working current: <30mA

Refresh rate: about 100mS once

Display specifications: three wire 0.28" LED digital tube

Lead length: default 15cm

Shape ruler: 33 x 11.5 x 9 mm

Mounting hole: 23*10 mm

Opening size: hole distance: 26mm hole diameter: 2.2mm

Working temperature: -10 ~ +65 °C

Working humidity: 10 ~ 80%

Working pressure: 80 ~ 106kPa

LED Color:Red/Blue/Green/Yellow

Package included:

• 1X Red+Green+Blue+Yellow 0.28inch Digital Mini Digital Voltmeter 0.28Inch

• Total 4Pcs

1. Key away from Fire

2. Due to includeing small parts, please keep away from Children under Three.

3. Please leave 5 star feedback if you're satisfied with our products and service, we will appreciate it

4. If the products you received was damaged or any more question, please feel free to contact us.
