5pcs Momentary Toggle Switch DPDT (ON)-Off-(ON) 6 Terminal 3 Pin Toggle Switches 12V Heavy Duty Rocker Toggle Switch waterproof
5pcs Momentary Toggle Switch DPDT (ON)-Off-(ON) 6 Terminal 3 Pin Toggle Switches 12V Heavy Duty Rocker Toggle Switch waterproof
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: AOKIN
Choice: yes
Current: 10A
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: None
Item Type: SWITCHES
Material: Alloy

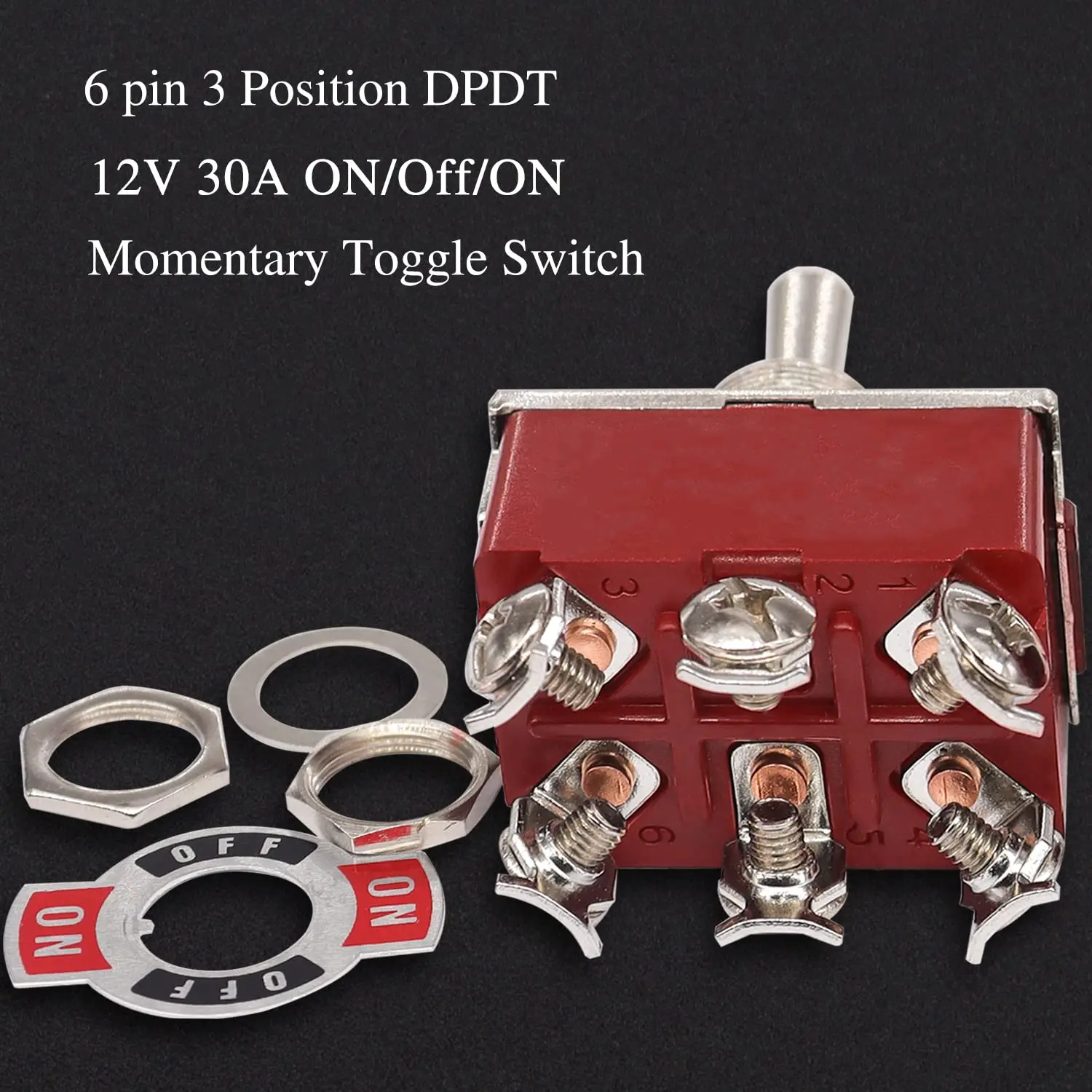

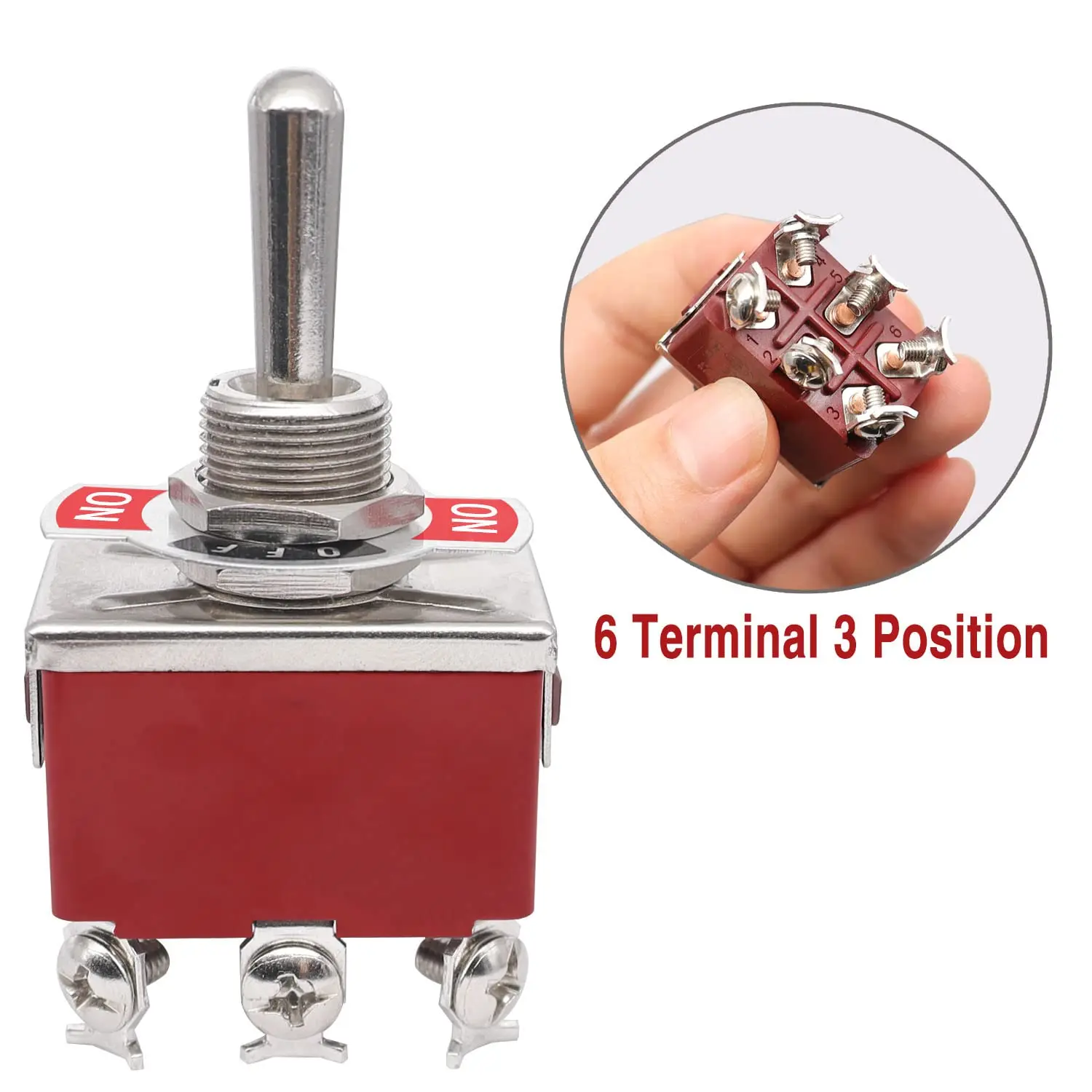

Model Number: Momentary Toggle Switch DPDT (ON)-Off-(ON) 6 Terminal 3 Position
Origin: Mainland China
Switch Type: Toggle Switch
Special note: this switch is Momentary Toggle Switch Product name:Toggle Switch；Connector type: DPDT (ON)-OFF-(ON) ；Action type:Momentary.

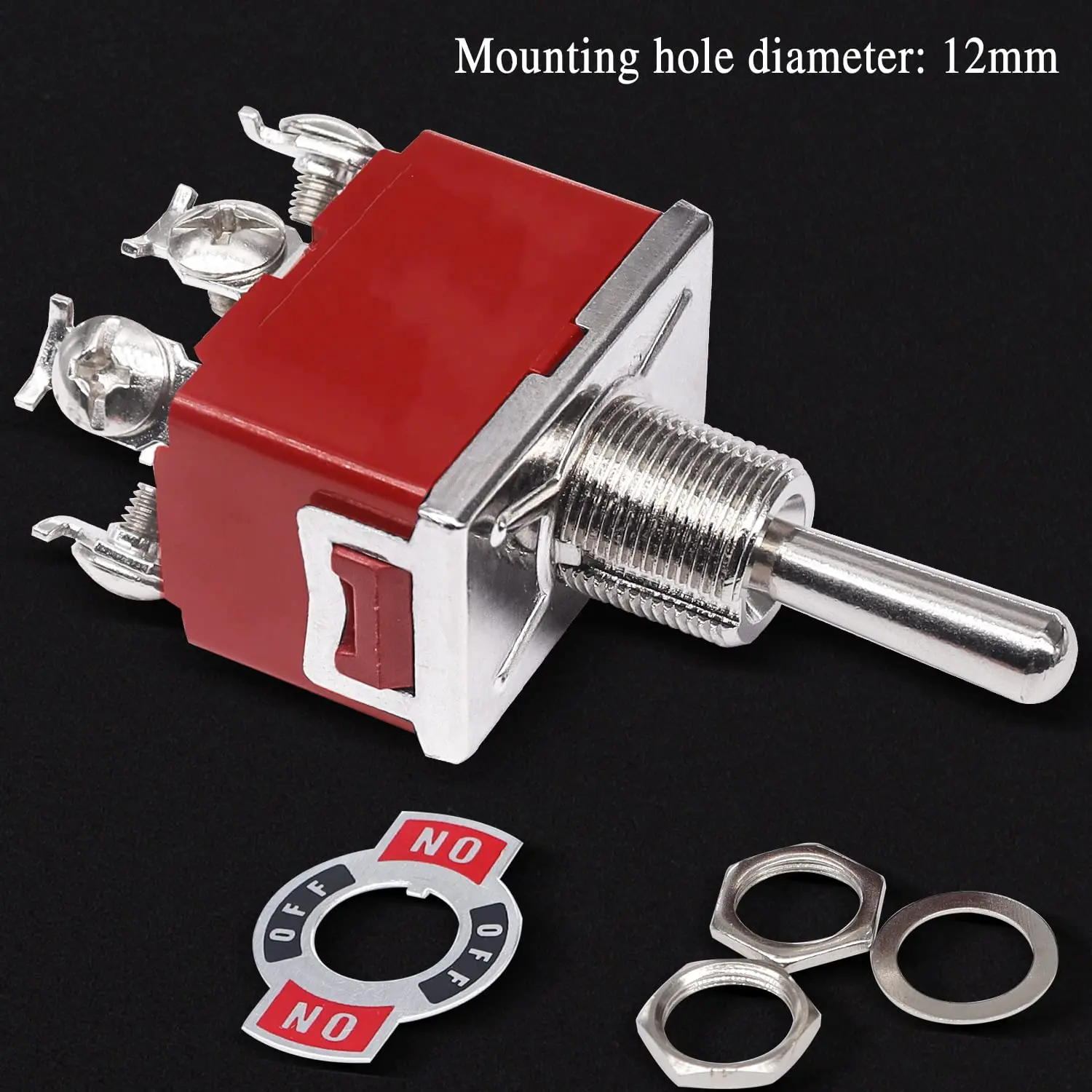

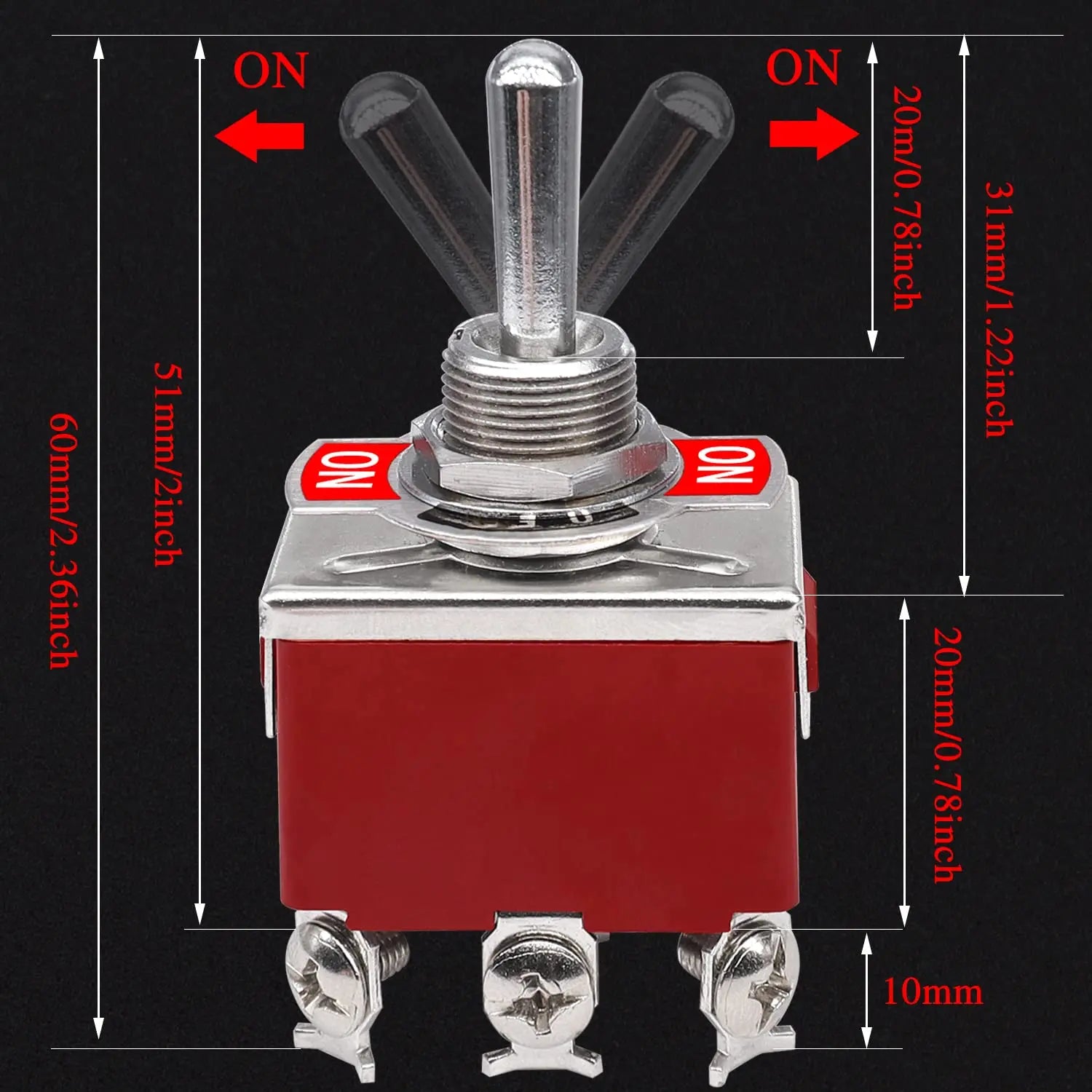

Product parameters:Mounting hole diameter: 12mm;Terminals: 6 Screw Terminals;Overall dimensions:60mmx32mmx20mm(2.3inx1.25inx0.78in).
Rated Voltage & Current : 16(10)A 250V AC,20A 125VAC; 12VDC.Mechanical life: more than 80.000 cycles. Electrical life: more than 10, 000 cycles.
Package content: 5 X toggle switch, 5 x Waterproof Cover
