SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Model Number: 6PCS DC Motor PWM Speed Controller

Motor: DC Motor

Motor Type: DC Motor

Origin: Mainland China

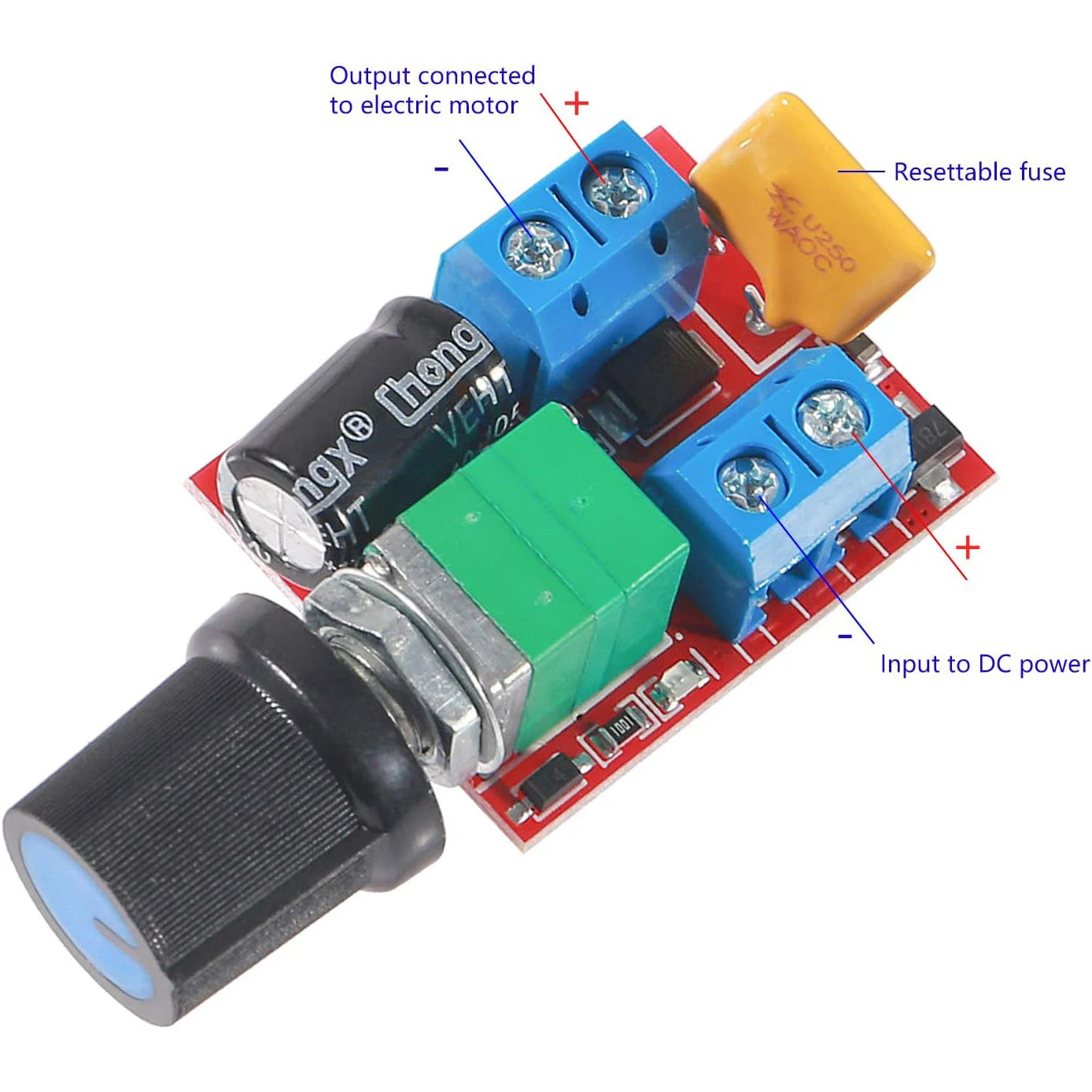

• The Motor Speed Controller with a self-recovery fuse 5A and a Power-On LED light; The DC Motor Speed Controller controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).

• Operating voltage: DC3V-35V; Control power:90W(maximum);Quiescent current:0.015A(standby);PWM Duty Cycle: 1%-100%;PWM frequency:10khz.

• Protection Function:The controller is safe with a 5A resettable fuse.If the current is too large, the fuse will automatically open to avoid the module from damaging, After cooling, the fuse is automatically restored.

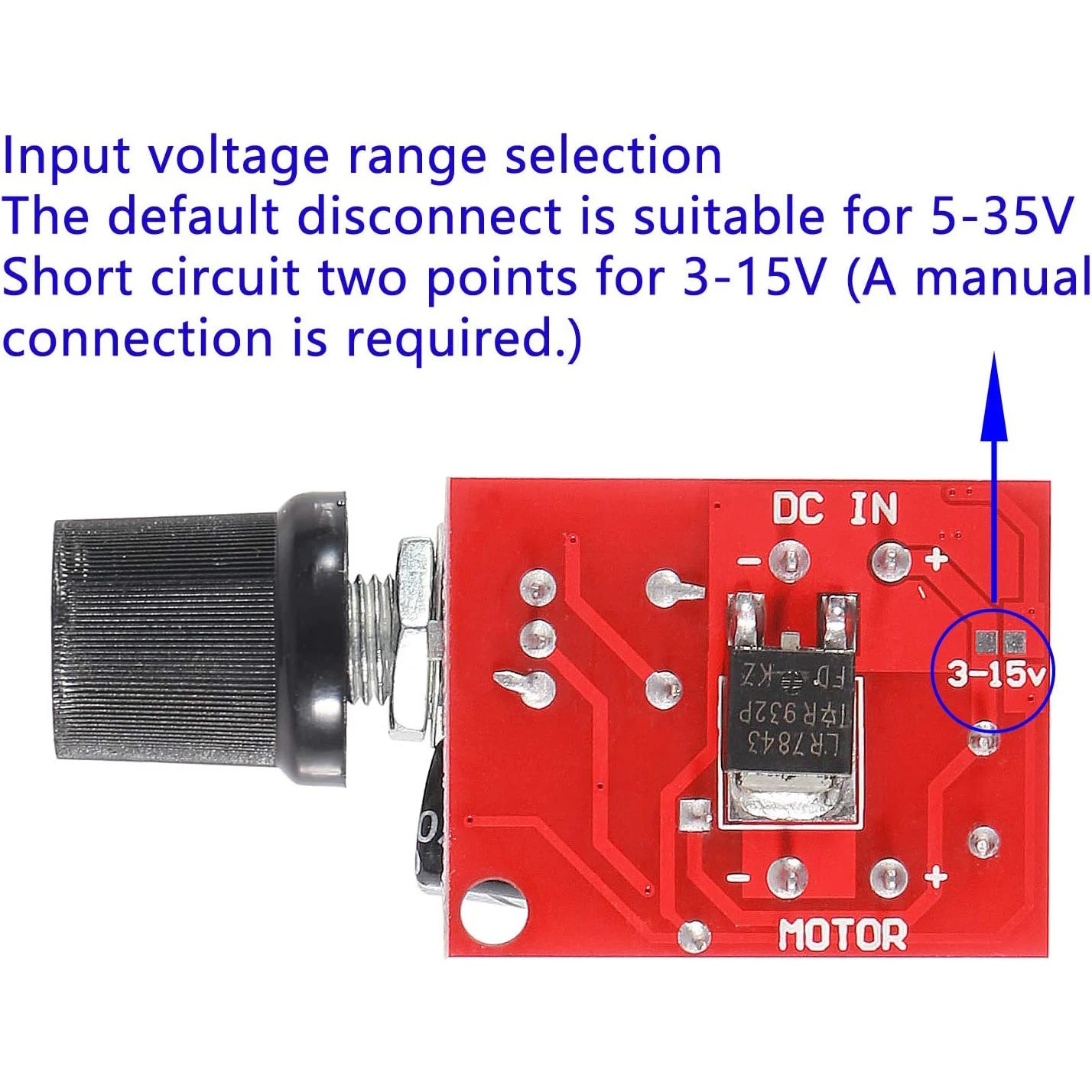

• Default disconnection of short circuit point, suitable for 5-35V input; Manually connect the short circuit point according your needs, suitable for low power 3-15v input. Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.

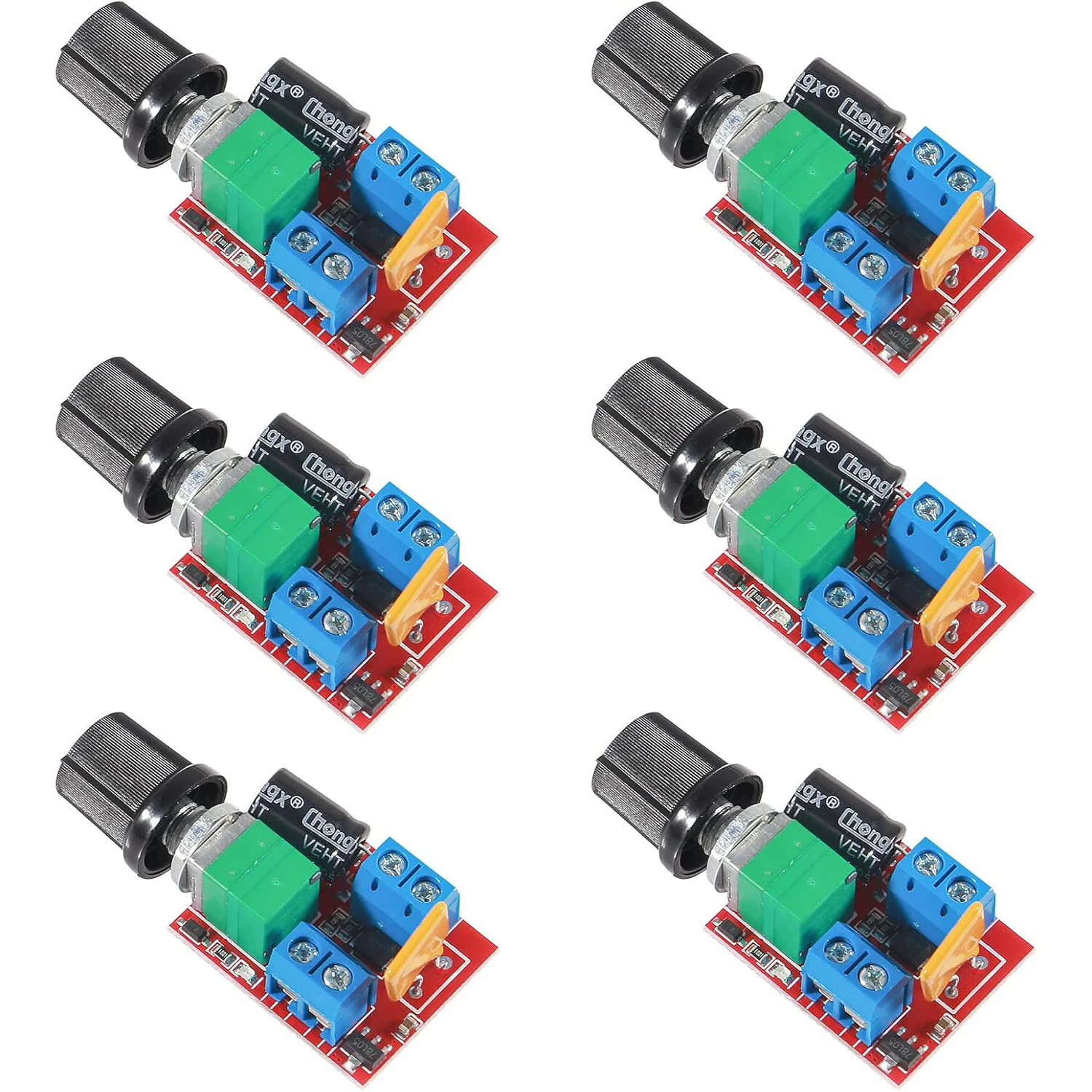

• Package includes:6Pack 5A mini DC Motor Speed Controller.
