6pcs Mini L298N 2 Channel H Bridge DC Motor Driver Board with MX1508 Chip for Electric Projects, Smart Car Robot

$11.99 USD

~~$0.00 USD~~ $11.99 USD

Sale Sold out

Voltage 6PCs

SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

High-concerned chemical: None

Model Number: 6PCs LN298

Motor: DC Motor

Motor Type: DC Motor

Origin: Mainland China

Power Supply: DC

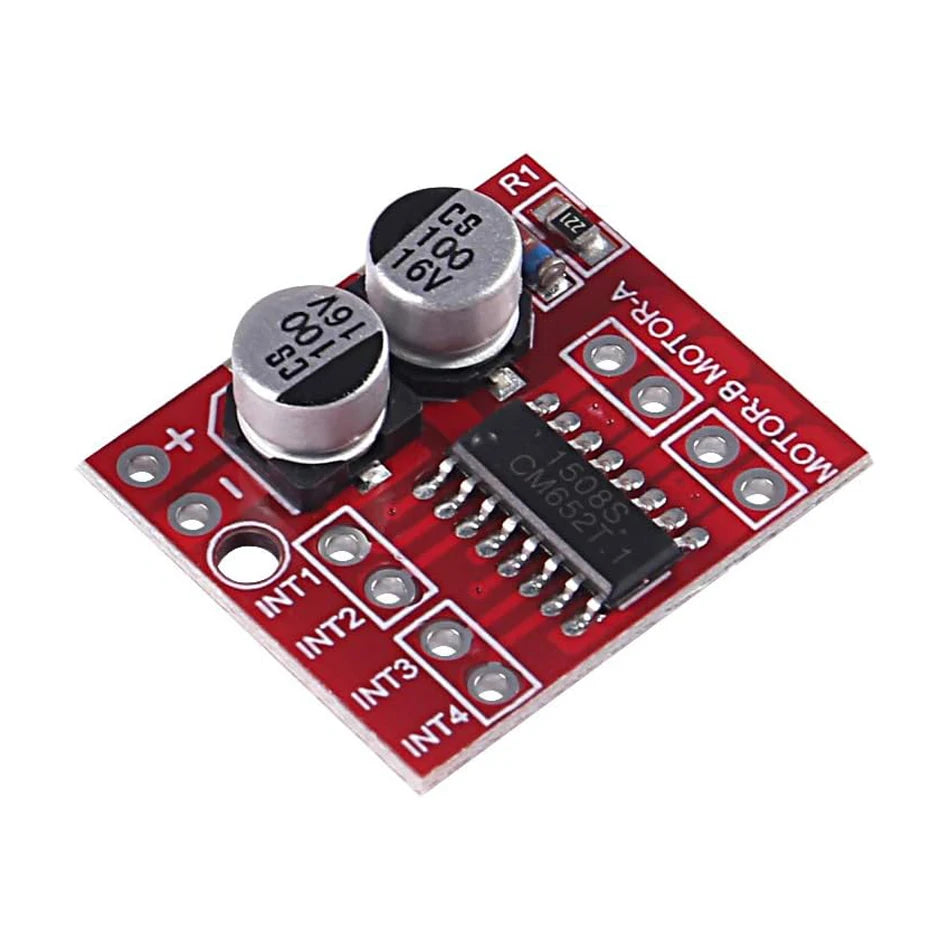

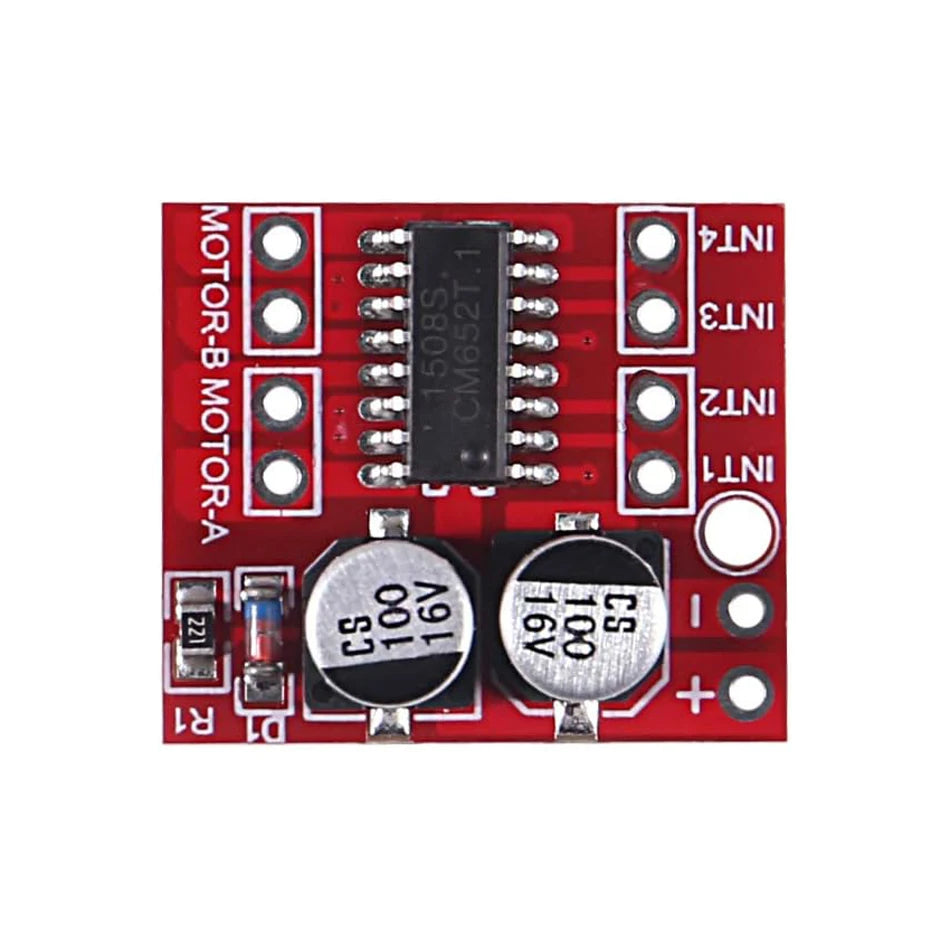

6Pcs Mini L298N 2 Channel H Bridge DC Motor Driver Board with MX1508 Chip for Electric Projects, Smart Car Robot.

Features:

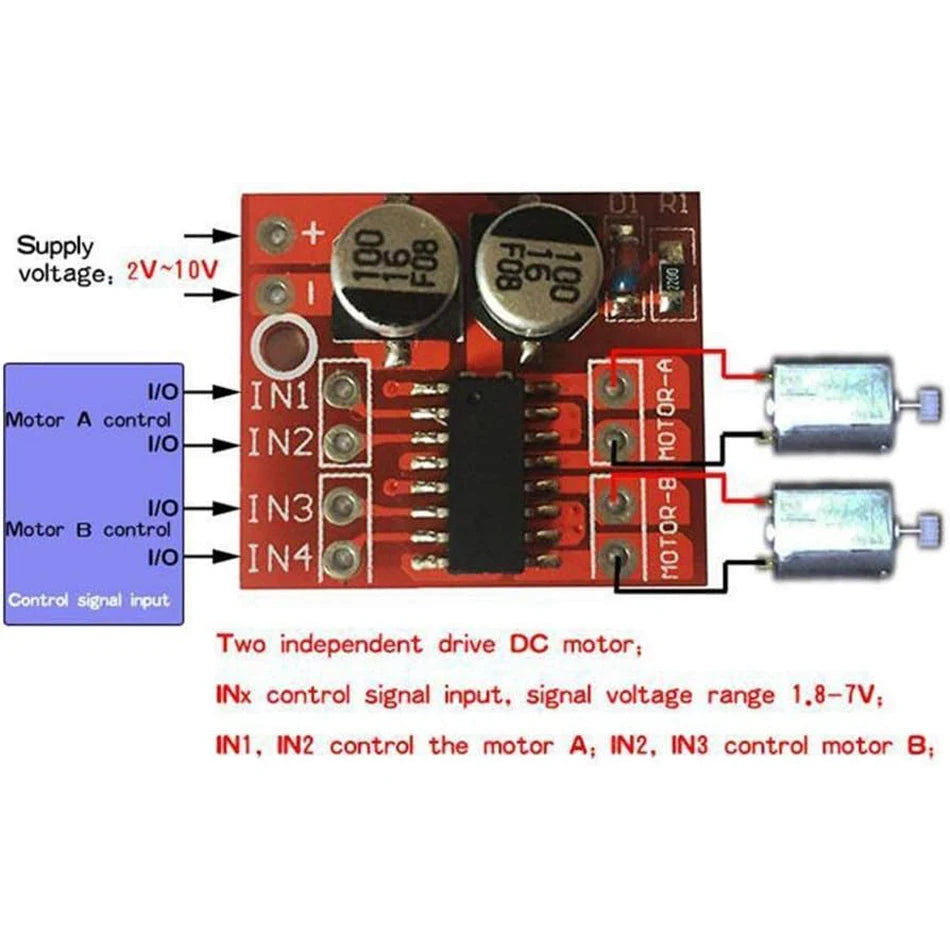

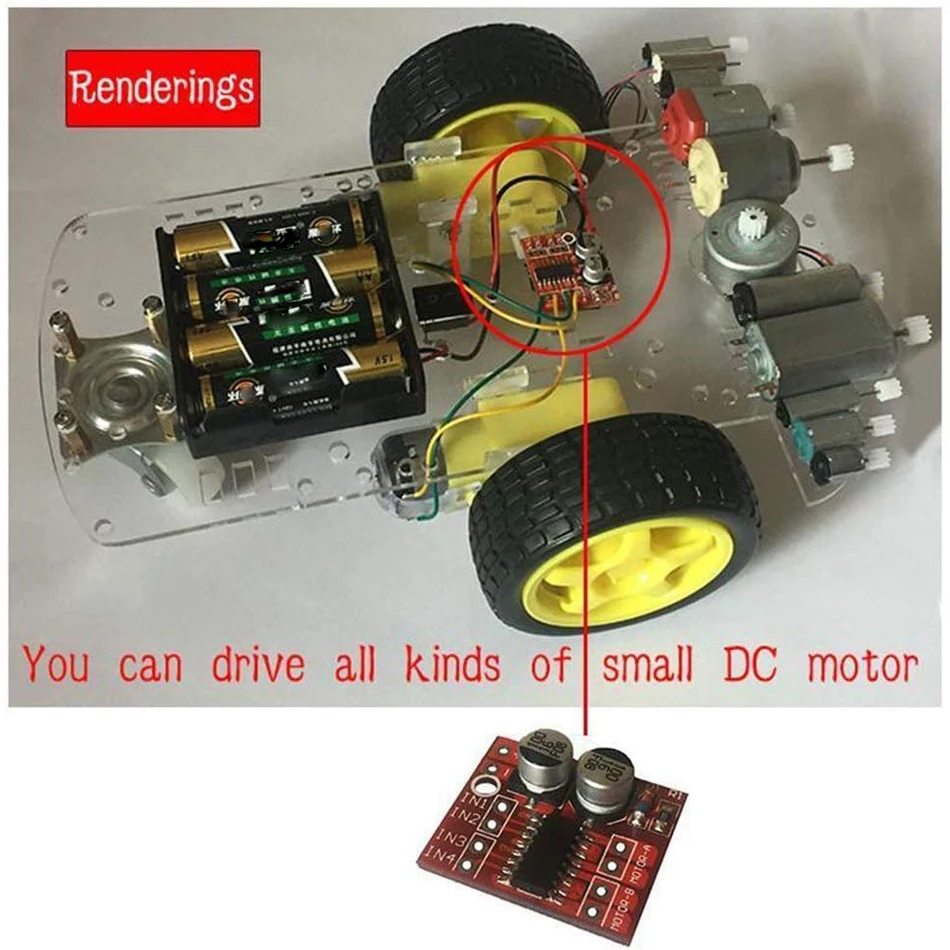

• 💎【Mini L298N 2 Channel H Bridge DC Motor Driver Board】: Can drive two DC motors or a 4-wire 2-phase stepper motors ,can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed.for Electric Projects, Smart Car Robot.

• ⚡【Supply voltage】: 2~10V.

• ⚡【Input Voltage】: 1.8~7V

• ⚡【Output Current】: Single Operating current 1.5A, peak current up to 2.5A, low standby current (less than 10uA).

• 🥇Use of imported original chip, built-in low on-resistance MOS switch, minimal heat, no heat sink, small size, low power consumption, is ideal for battery powered.

Specifications

💎【Mini L298N 2 Channel H Bridge DC Motor Driver Board】: Can drive two DC motors or a 4-wire 2-phase stepper motors ,can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed.for Electric Projects, Smart Car Robot.

💎【Dual H-bridge motor driver】：It can drive two DC motors or a 4-wire two-phase stepper motor.

💎【Can be rotated forward or backward】：Supply voltage 2V -- 10V, can drive two DC motors or a 4-wire 2-phase stepper motors ,can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed.

---Product parameters---

⚡【Supply voltage】: 2~10V.

⚡【Input Voltage】: 1.8~7V

⚡【Output Current】: Single Operating current 1.5A, peak current up to 2.5A, low standby current (less than 10uA).

⚡【Built-in common conduction circuit】：when the input pin is left floating, the motor does not malfunction.

⚡【Built-in thermal protection circuit】：Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about motor stall.

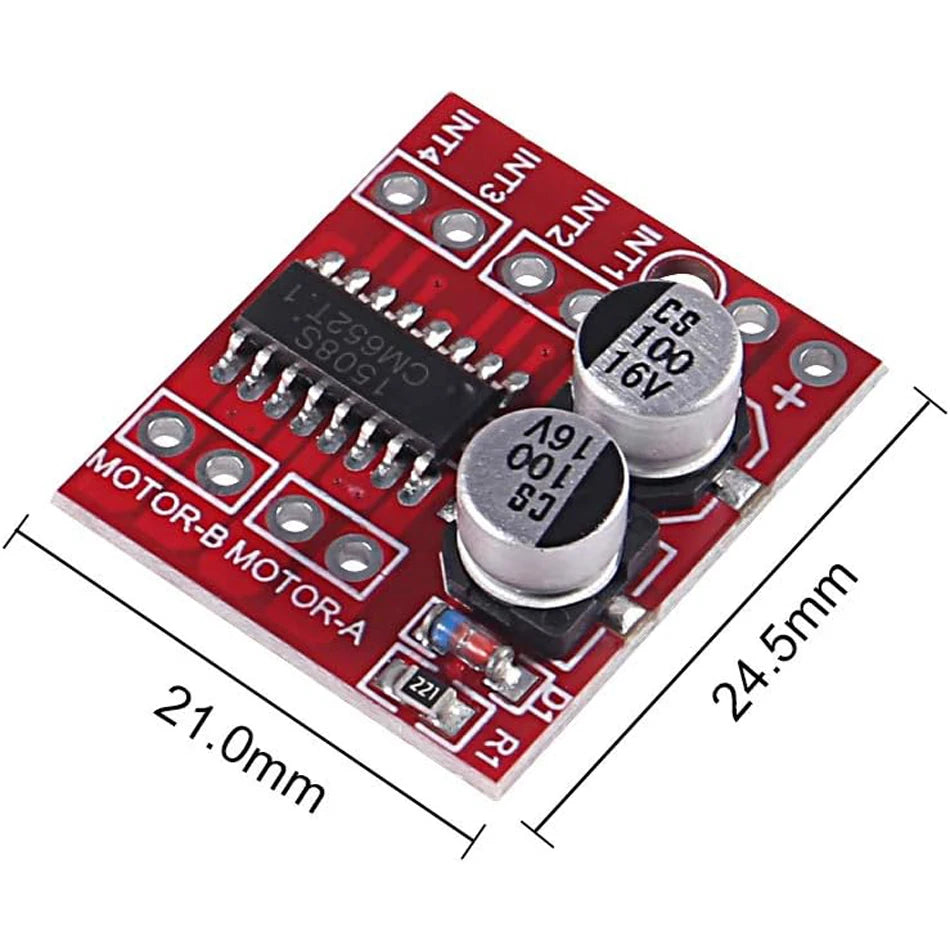

【Product size】: 24.7 * 21 * 5mm (length, width, height), ultra-small size.The mounting hole diameter: 2 mm.

🥇Use of imported original chip, built-in low on-resistance MOS switch, minimal heat, no heat sink, small size, low power consumption, is ideal for battery powered.

Package Include:

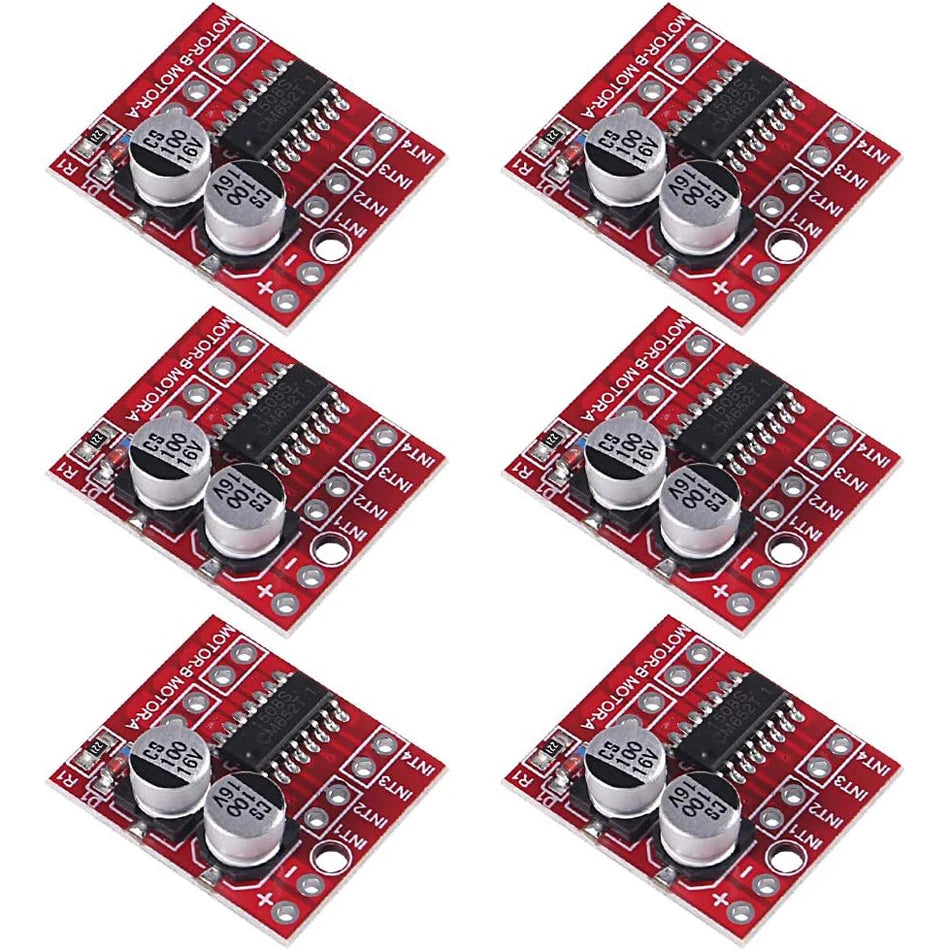

Mini L298N*6
