• DC-DC buck module has short circuit protection, over current protection and output reverse current protection.

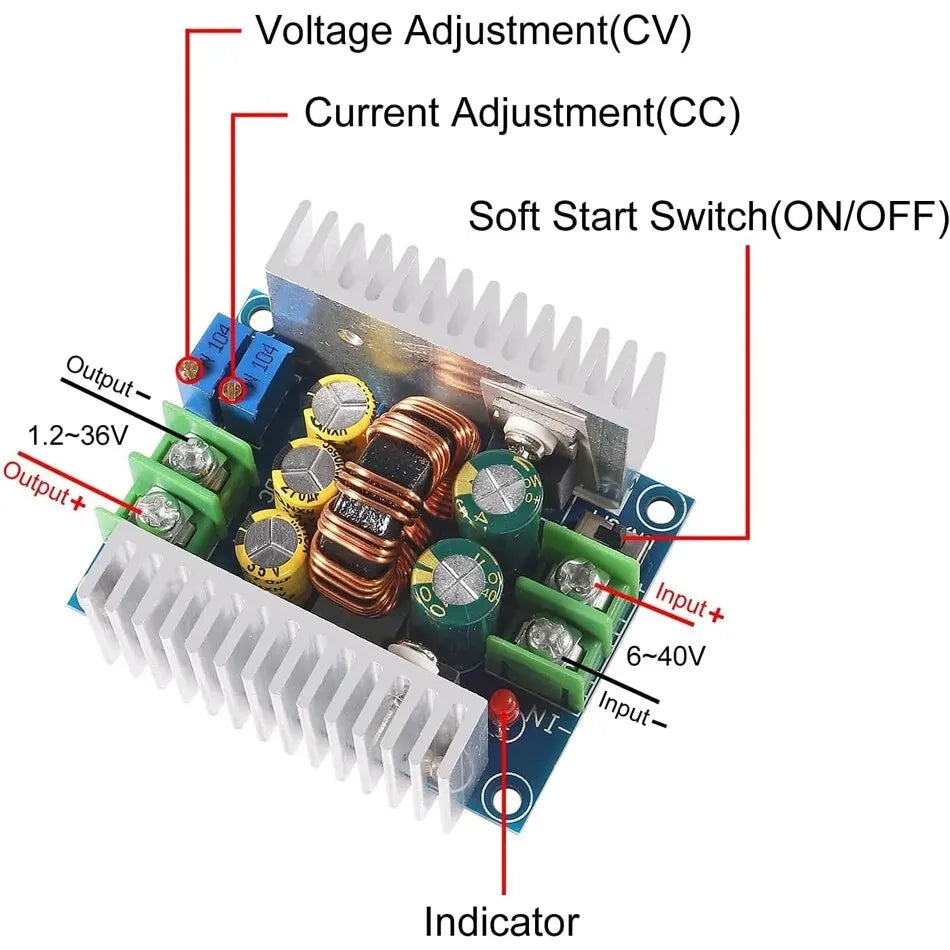

• 20A DC-DC buck module can provide constant voltage and constant current for high power supply, support output voltage and output current regulation (CV CC adjustable).

• The operating temperature of this buck module is -20°C to 75°C (-4°F to 167°F) and the operating humidity is 5% to 95% relative humidity.

• The buck board is equipped with 2 heat sinks so that the performance can be fully utilized and the service life can be extended.

• The buck module is widely used in industrial automation, scientific research equipment, LED lighting, air purification, civil engineering equipment, solar panel voltage regulator, wind turbine, battery charging.

Parameters:

• Output ripple: ≦ 50mV

• Wiring method: Terminal

• Output voltage: 1.2V to 36V DC

• Efficiency: 95%

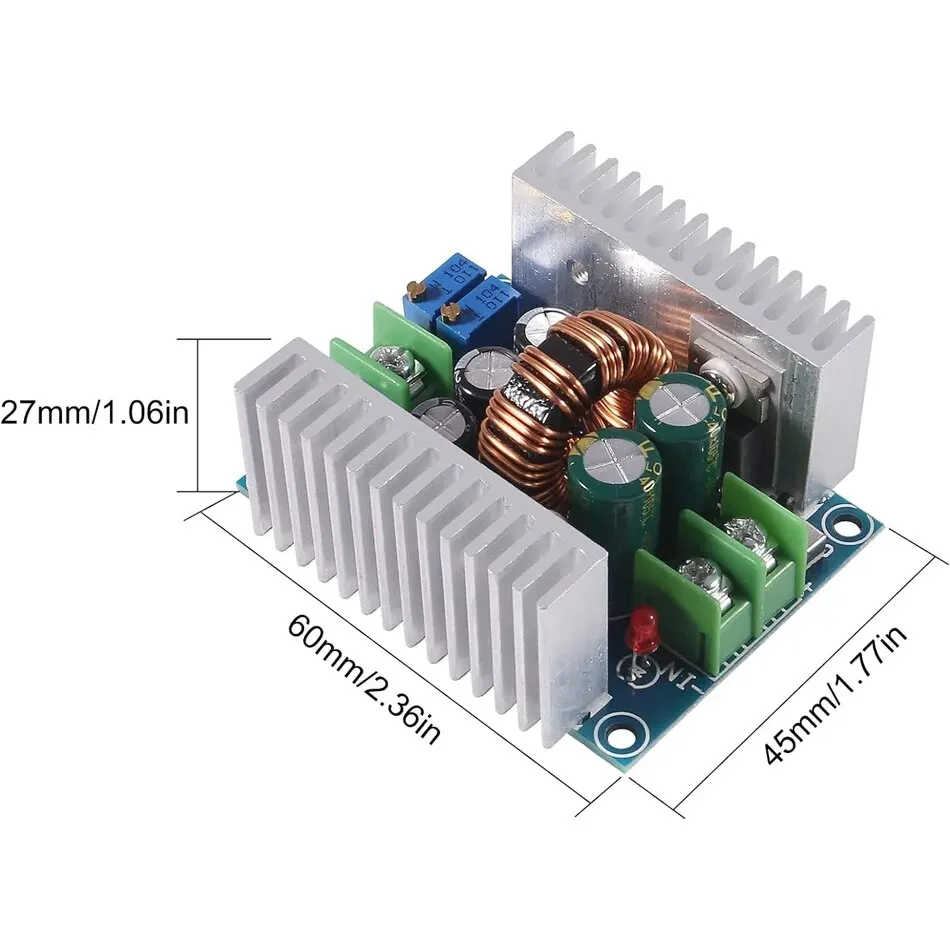

• Size: 6 x 4.5 x 2.7 cm/2.36 x 1.77 x 1.06 inch

• Output current: 20A (Max), 15A (recommended)

• Input voltage: 6V to 40V DC (10V to 40V recommended)

• The 20A DC-DC buck module high power supply constant voltage constant current, supports output voltage and output current adjustment (CV CC adjustable)
