The Matter Shop

DC Motor Speed Controller,Brush Motor Driver Controls Module DC 9V-60V 12V 24V 36V 48V 60V Motor Pulse Width Modulator Regulator

$15.99 USD

~~$0.00 USD~~ $15.99 USD

Sale Sold out

Default Title Default Title

SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Model Number: DC Motor Speed Controller

Motor: DC Motor

Motor Type: DC Motor

Origin: Mainland China

• Versatile Motor Type :This speed controller is designed for DC motors, making it a versatile choice for various motor types. It ensures efficient and smooth operation.

• Wide Voltage Range :With a voltage range of 9V-60V, this controller provides flexibility to accommodate a wide range of motor applications.

• Pulse Width Modulation :The pulse width modulation feature allows for fine-tuning of the motor speed, ensuring optimal performance for your specific needs.

• Integrated Control Module :The product comes with an integrated control module, simplifying the setup and operation of your motor system.

• High-Quality Material :Originating from Mainland China, this controller is made from high-quality materials, guaranteeing durability and long-lasting performance.

• Regulatory Compliance :Being compliant with regulations, this controller ensures safe and reliable operation, giving you peace of mind.

DC Motor Speed Controller, brush Motor Driver Controls Module DC 9V-60V 12V 24V 36V 48V 60V Motor Pulse Width Modulator Regulator 20A 1200W PWM Monitor Dimmer Governor with Switch & Knob + 1

Features:

• Parameters: motor speed controller input voltage range is 9-60V, output current range is 0-20A, continuous power is 1200W.

• Application: the dc motor driver can be used to brush motor speed regulation, light dimming regulation in the DC circuit.Note: The motor cannot be used in electric vehicles.

• Speed Control: our motor control board can regulate motor speed by potentiometer; what's more, it support clockwise/anticlock-wise rotation adjustment.

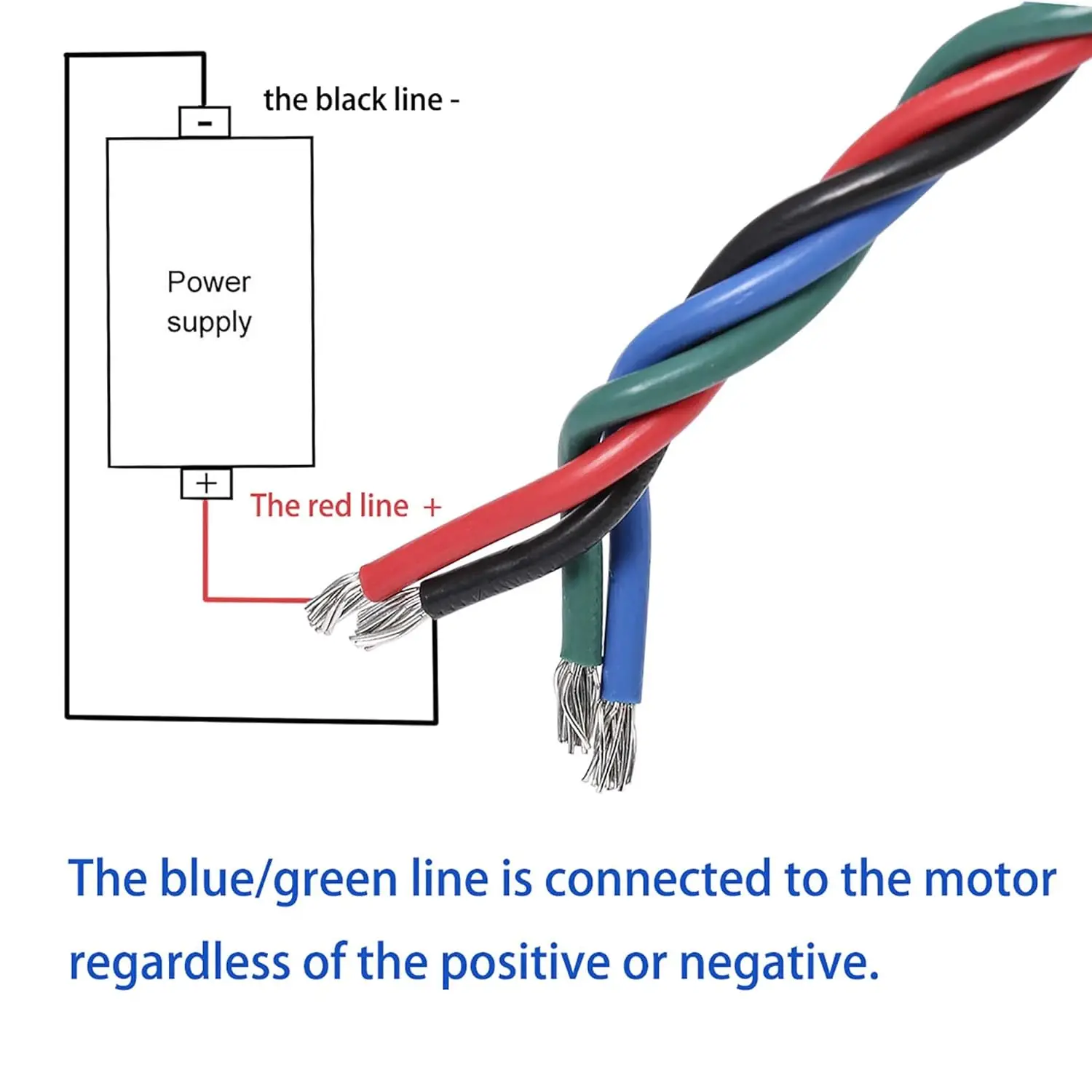

• Easy Wiring: thick red wire for the positive of the power supply, and thick balck for the negative; thick blue wire for the motor positive, and the thick green for the motor negative.

• PWM: the advantage of using a pulse width modulation (PWM) method for dimming / speed regulation is that the energy of the power supply can be fully utilized and the circuit is highly efficient.

Specification:

Includes: 1x DC motor controller

Note: The motor cannot be used in electric vehicles.

Input voltage range: DC9-60V output voltage

Linear load output current: 0-20A

Continuous power: 1200W

Speed control mode: potentiometer (linear)

Speed range: 0-100%

Input current: requires more current than the motor

Continuous current: within 18A

The input voltage should be equal to the rated voltage of the motor.

Control frequency: 25KHz clockwise / counterclockwise rotation; support Fit motor:
