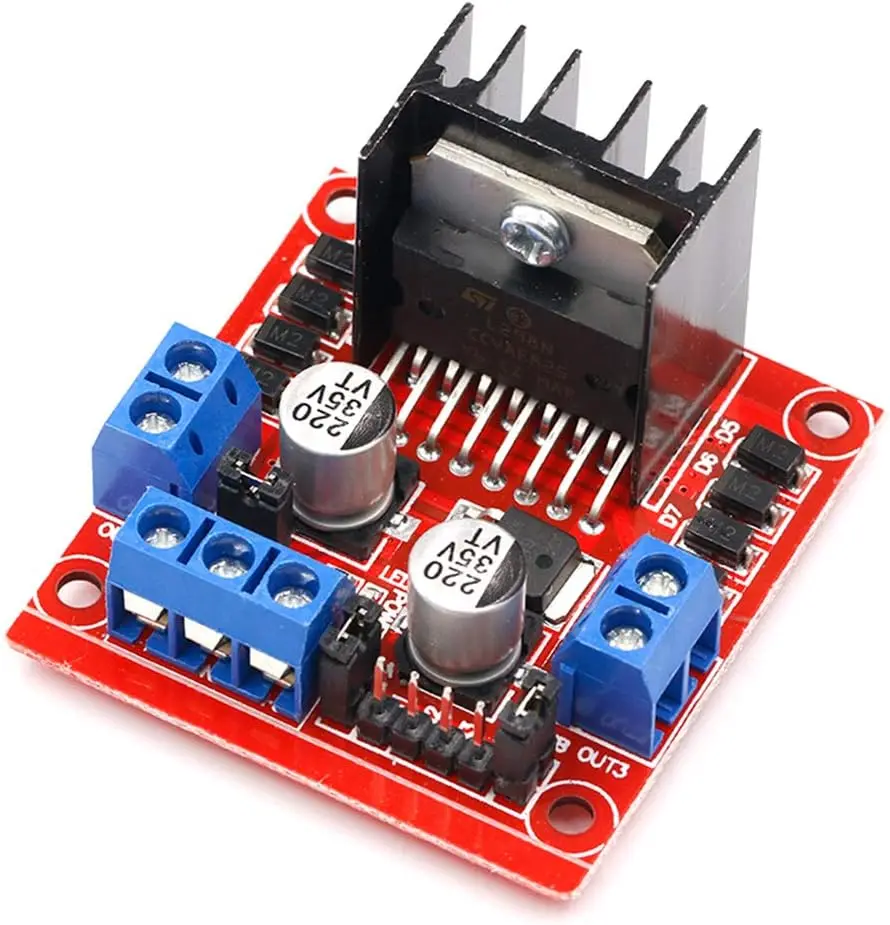

L298N Motor Drive Controller Board DC Dual H-Bridge Robot Stepper Motor Control and Drives Module for Arduino Smart Car Power for Arduino UNO MEGA R3 Mega2560

Features:

• Using L298N made by ST company as the control chip,the module has such characteristics as strong driving ability,low calorific value and strong anti-interference ability.

• This module can use built-in 78M05 for electric work via a driving power supply part.But to avoid the damage of the voltage stabilizing chip,please use an external 5V logic supply when using more than 12V driving voltage.

• Using large capacity filter capacitor,this module can follow current to protect diodes,and improve the reliability.

• Dual-channel H-bridge driver working mode creates higher working efficiency

• To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage

Specifications

Module name : dual H bridge motor drive module

Work mode : H bridge drive (double road)

Main control chip : ST L298N dual H-bridge driver chip

Logical voltage : 5V

Drive voltage : 5v-35v

Logical current : 0mA-36mA

Driving current : 2A(MAX single bridge)

Storage temperature : - 20 ℃ to + 135 ℃

Maximum power : 25W

Package included:

1* L298N Motor Driver controller Board Module
