SPECIFICATIONS

1x M.2 Slot: Support M.2 NVMe SSD (2230/2242/2260/2280), up to 8TB, 10Gbps.

1x3.5MM Ports: In & out combo, 4PIN interface, support line control, independent sound card interface.

1xDisplayPort: Support DP1.4, supports up to 4K240Hz (Mac mini M4 Pro), and is backward compatible with 4K144/120/60Hz, 2K240/144/120/60Hz, 1080P240/120/60Hz, 720P, 480P, etc.

1xUSB-C Ports: USB3.2 Gen2 10Gbps

4xUSB-A Ports: USB3.2 Gen2 10Gbps

Brand Name: UGREEN

Certification: CE,FCC

Choice: yes

Compatible PC Devices: Mac Mini

Compatible Systems: MacOS

Funtion: Card Reader,DP,3.5mm,USB-A,USB-C

High-concerned chemical: None

Input Port: 2xUSB-C (Support DP1.4/USB3.2 Gen2 10Gbps)

Interface Type: USB Type-C

Model Number: CM841

Note: The Mac mini shown in the pictures is for display purposes only. Our store only sells the hub and does not include the Mac mini.

Origin: Mainland China

Output Port: 10 Ports

Package: Yes

Plug Type: None

Ports: 10

Product Name: Mac Mini M4 Docking Station / USB-C HUB / USB-C Expander

SD+TF Ports: SD3.0 (170MB/s). support 2 cards read & write simultaneously.

SSD/HDD Slot: M.2

Standard: USB 3.2 Gen2

semi_Choice: yes

Note: The Mac mini shown in the pictures is for display purposes only. Our store only sells the hub and does not include the Mac mini.

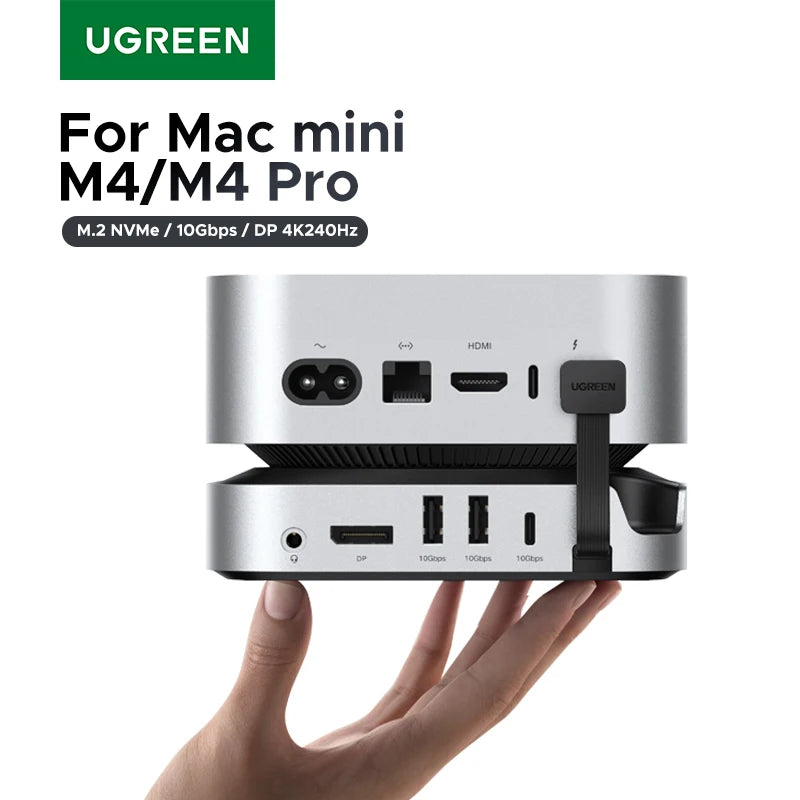

Docking Station for Mac Mini M4/M4 Pro

M.2 NVMe 8TB Max 丨 10Gbps 丨 DP1.4 4K240Hz

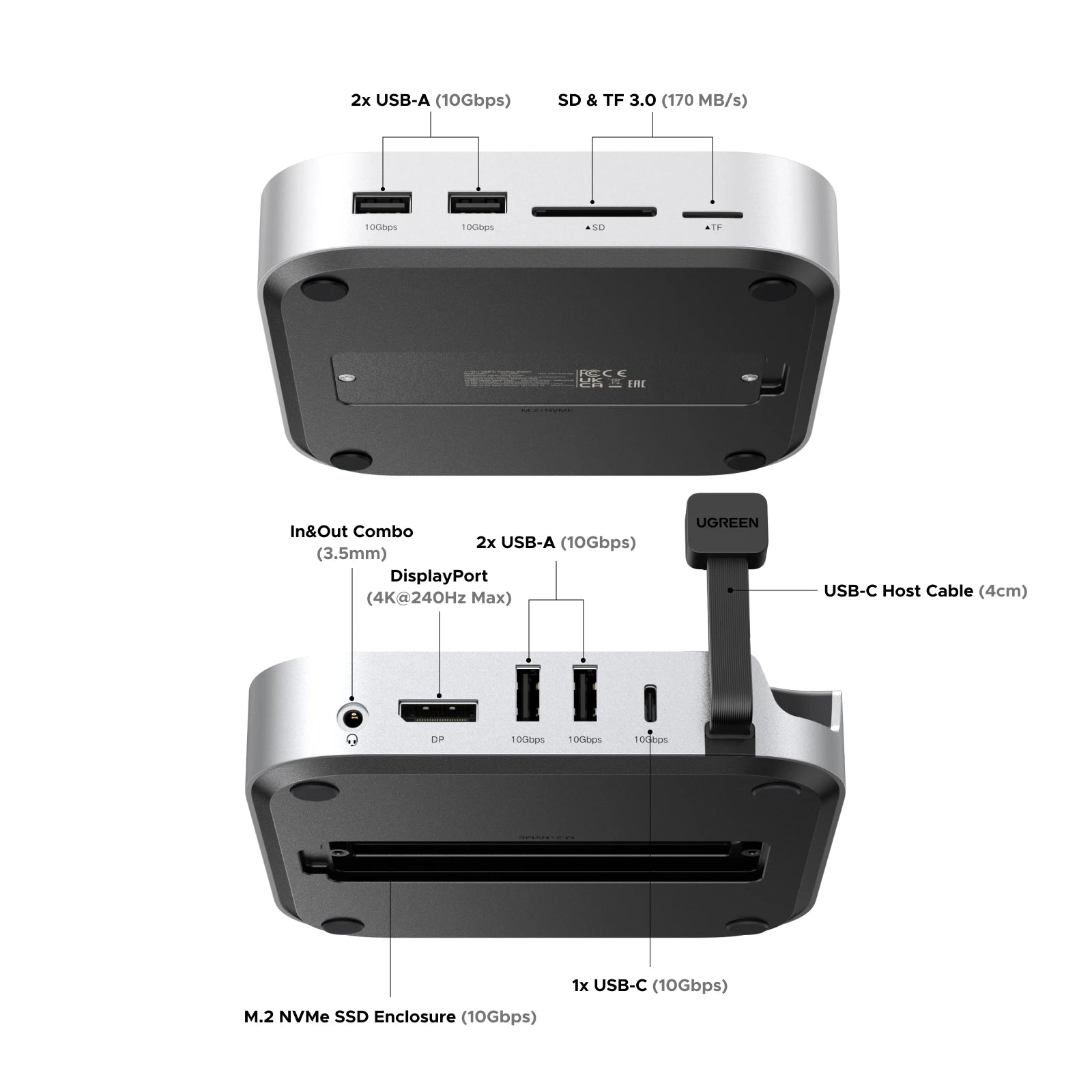

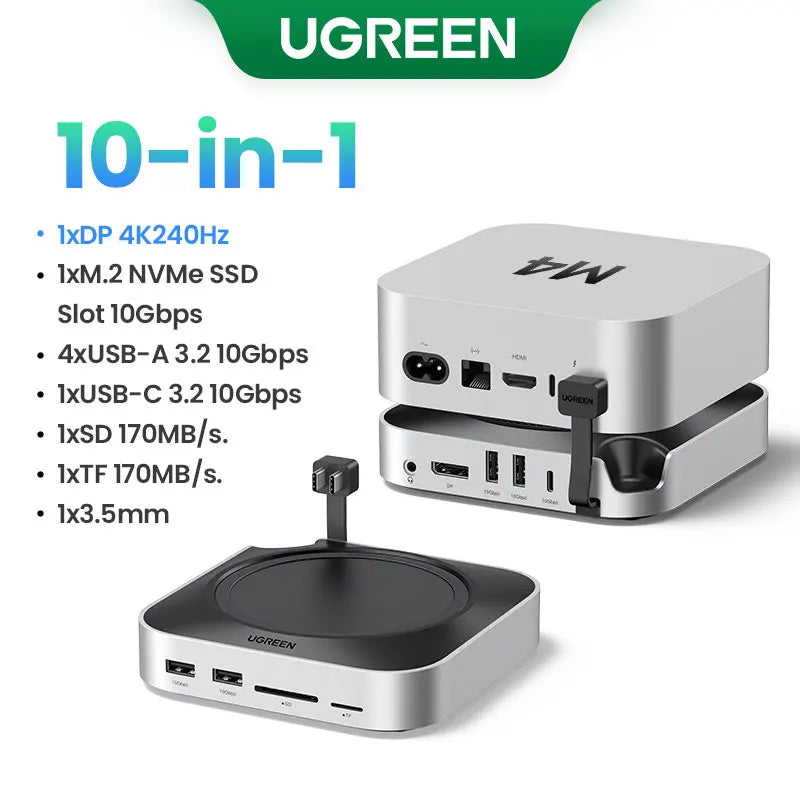

10-in-1 Expansion

Make your work more efficient

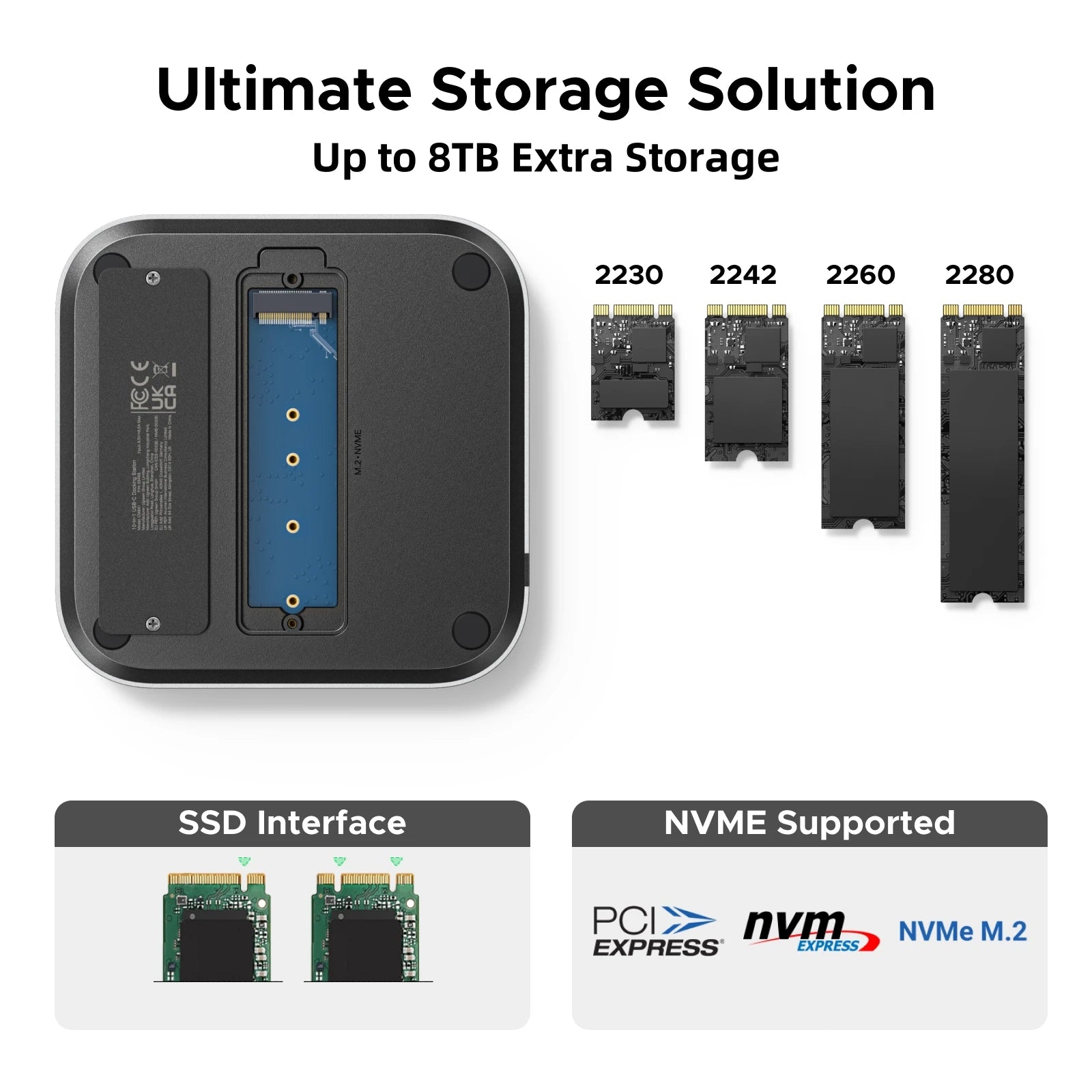

Ultimate Storage Solution

Up to 8TB Extra Storage

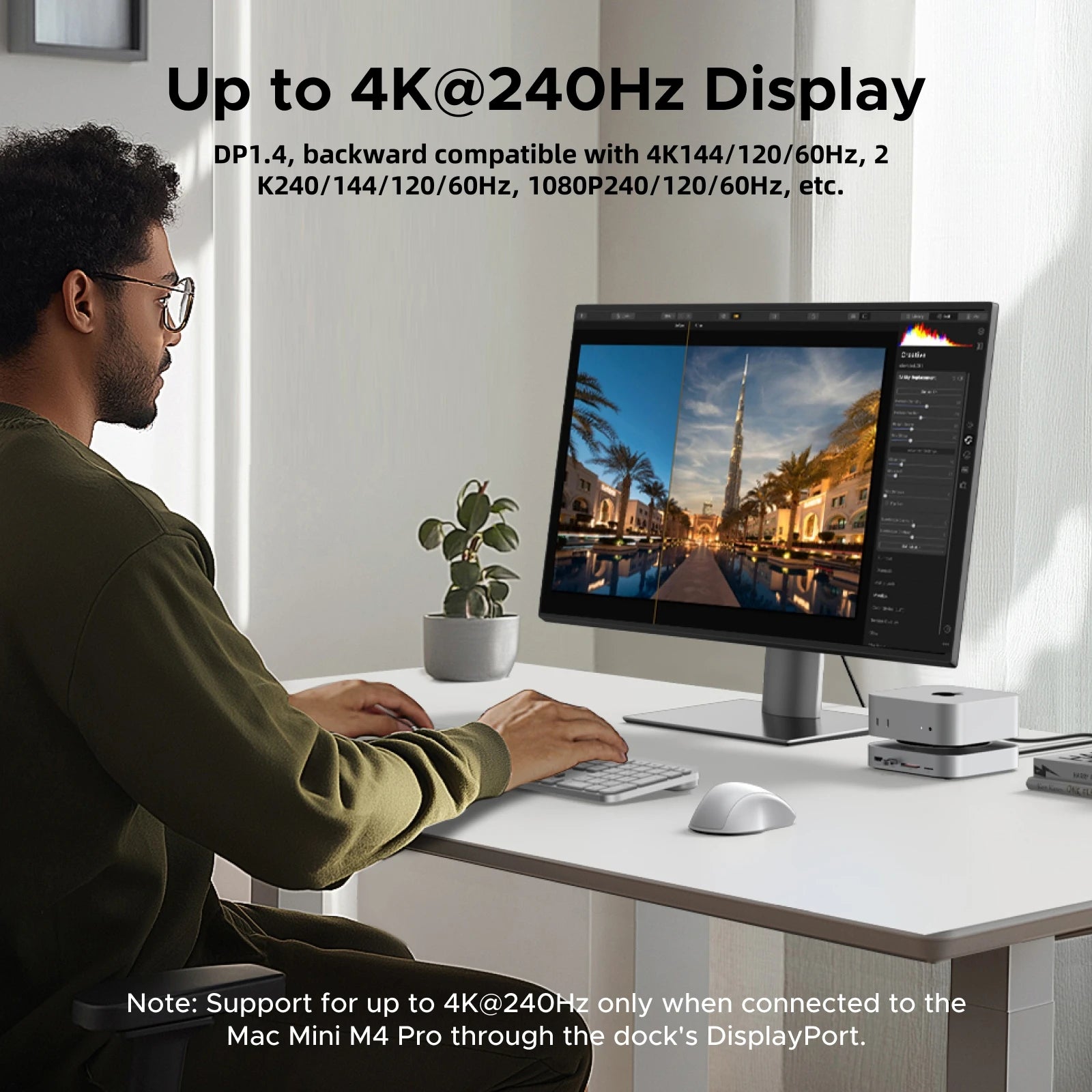

4K 240Hz DP Output

Enjoy a high-definition visual feast

Note: Only the Mac Mini M4 Pro supports 4K 240Hz.
PS: Backward compatible with 4K144/120/60Hz, 2K240/144/120/60Hz, 1080P240/120/60Hz, 720P, 480P, etc.

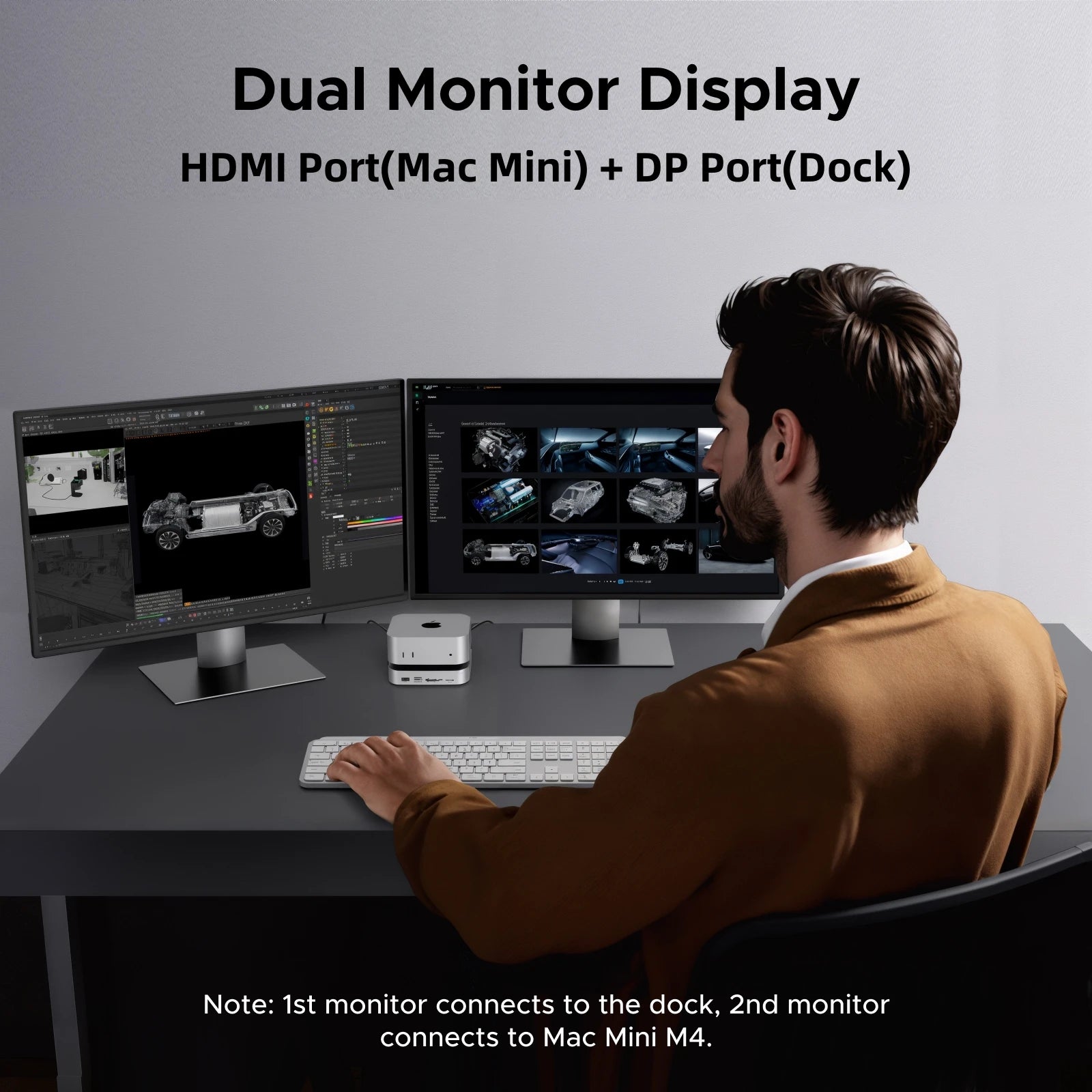

Dual Monitor Display

HDMI Port(Mac Mini) + DP Port(Dock)

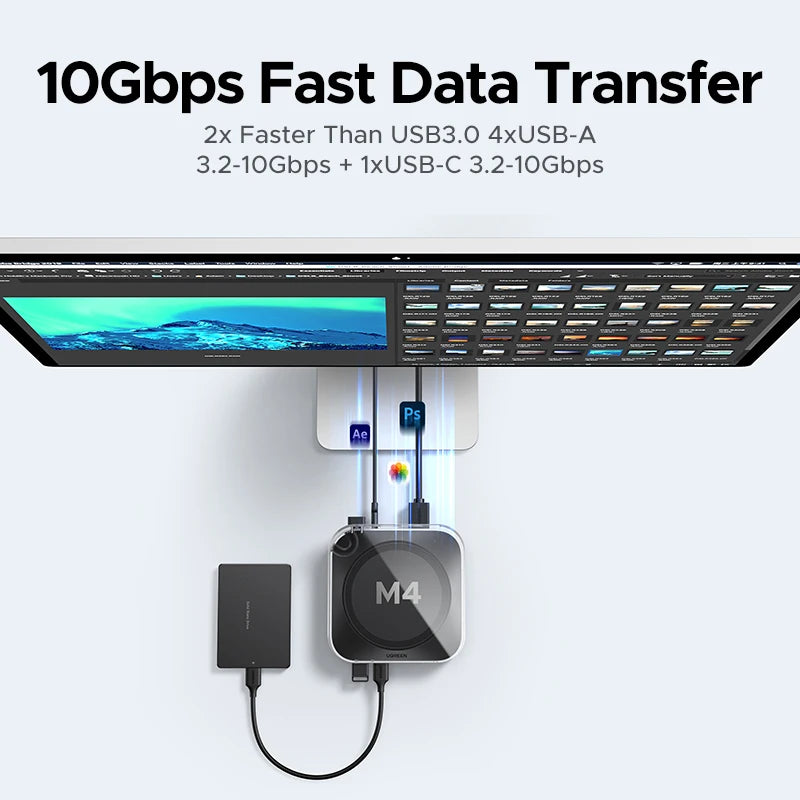

10 Gbps Fast Data Transfer

2x Faster Than USB 3.0
4xUSB-A 3.2-10Gbps + 1xUSB-C 3.2-10Gbps

SD&TF Plug & Play

Support 2 cards read & write simultaneously, up to 170MB/s.

Perfect Design for Mac Mini M4/M4 Pro

The groove design at the bottom makes it easy to turn on without moving the device.

Curved Design

Doesn't block Mac Mini cooling vents

Triple Securit Protection For Expansion Safety

Hard Disk Installation Steps

Product Specifcations

Package Display
