W3230 Mini Digital Temperature Controller 12V 24V 220V Thermostat Regulator Heating Control Thermoregulator With Sensor

$13.99 USD

~~$0.00 USD~~ $13.99 USD

Sale Sold out

Color 12V 24V 110-220V

SPECIFICATIONS

Battery Included: no

Brand Name: other

Cable Length: 1m

Choice: yes

Display Size: 1.9 Inches & Under

High-concerned chemical: None

Is Smart Device: no

Origin: Mainland China

Use: Household

• DIGITAL TEMPERATURE CONTROL :The W3230 Mini Digital Temperature Controller provides precise temperature control, making it easy to maintain the perfect environment for your home or business.

• VERSATILE USAGE :This thermostat regulator is suitable for a wide range of applications, including heating, cooling, and temperature monitoring.

• EASY TO USE :With a simple user interface and clear display, the W3230 Mini Digital Temperature Controller is easy to set up and use, even for those with limited technical experience.

• LONG-RANGE COMPATIBILITY :This thermoregulator is compatible with a variety of voltage levels, including 12V, 24V, and 220V, making it suitable for use in a wide range of settings.

W3230 Mini Digital Temperature Controller 12V 24V 220V Thermostat Regulator Heating Control Thermoregulator With Sensor

Features:

 The instruction manual is in the last few pictures, if you need detailed electronic documents, please contact us

 2 Working modes: this digital LED temperature controller module has 2 working modes, heating mode (start temperature is lower than stop temperature) and cooling mode (start temperature is higher than stop temperature), range from -50°C to 120°C; The high temperature control accuracy reaches 0.1℃.Stable and reliable: the LED indicator light can display the current output status; The digital display tube can display the measured temperature, and the temperature measurement and control accuracy is high

 Waterproof probe: equipped with a 1-meter NTC10K probe made of stainless steel, which is waterproof and not easy to rust, easy to use and can last for a long time

 Durable material: this XH-W3230 digital thermostat switch is made of ABS, one of the five major synthetic resins, which is non-toxic, strong impact resistance, heat and low temperature resistance

 Suitable for: the temperature controller module can be widely applied in the conditioning systems, incubators, equipment cases, temperature control protection and others

Specification:

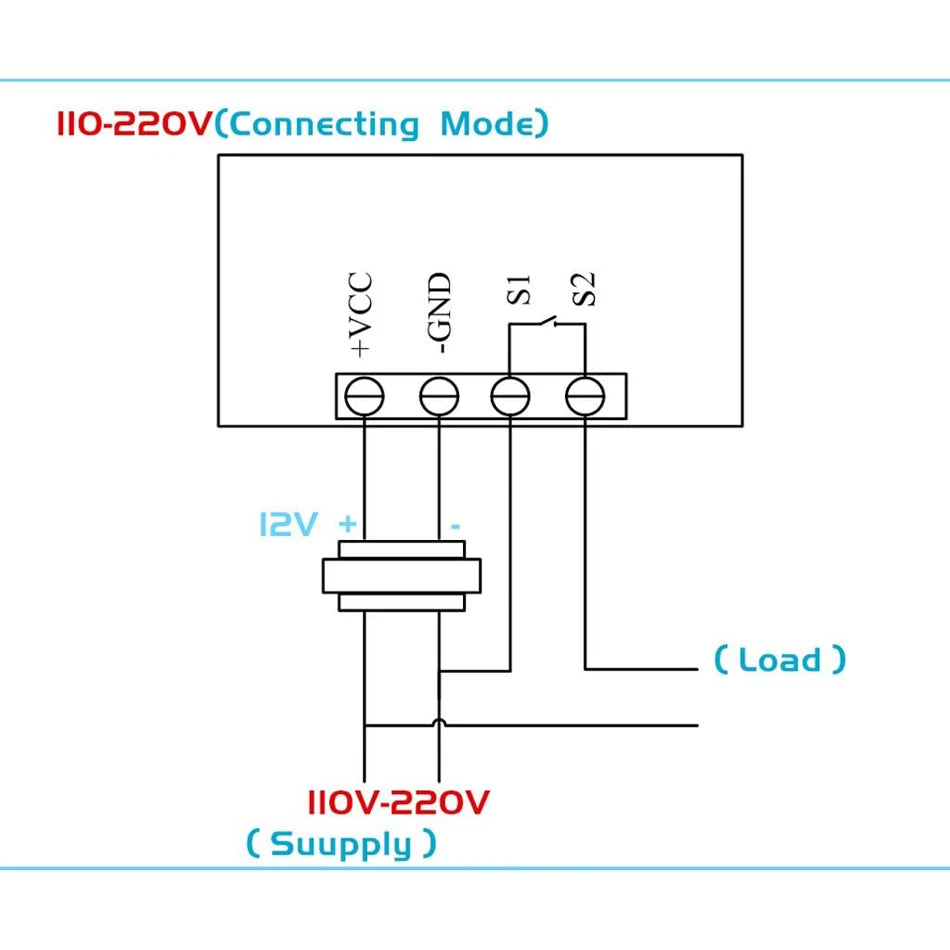

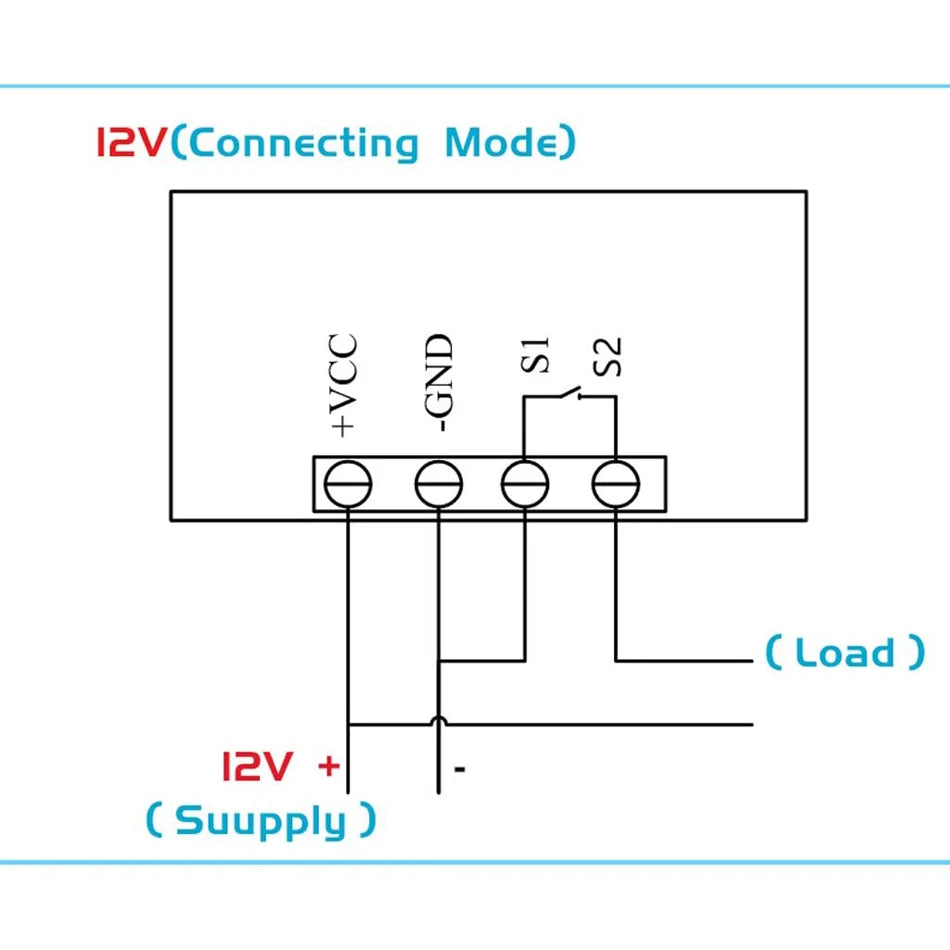

Power Supply:DC 12V/ AC 110V-220V

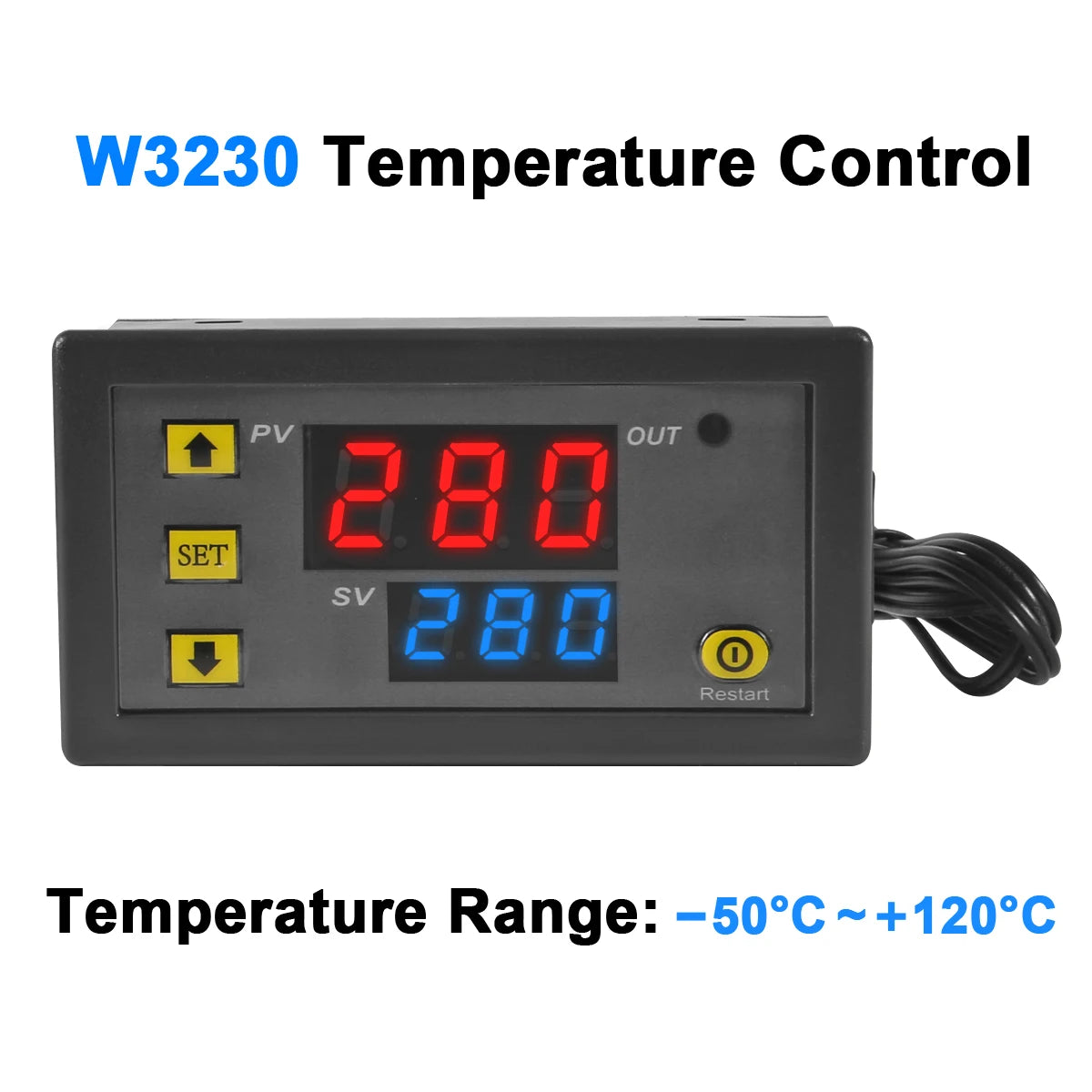

Temperature Control Range:-55?-120?

Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)

Color of Displaying: red/blue

Measurement accuracy: ±0.1°C

Control accuracy: 0.1°C

Sensor: ntc10k waterproof sensor

Output: Relay Contact Capacity 20A 12V / 10A 220V

Environmental requirements: -10-60°C , humidity 20%-85%RH

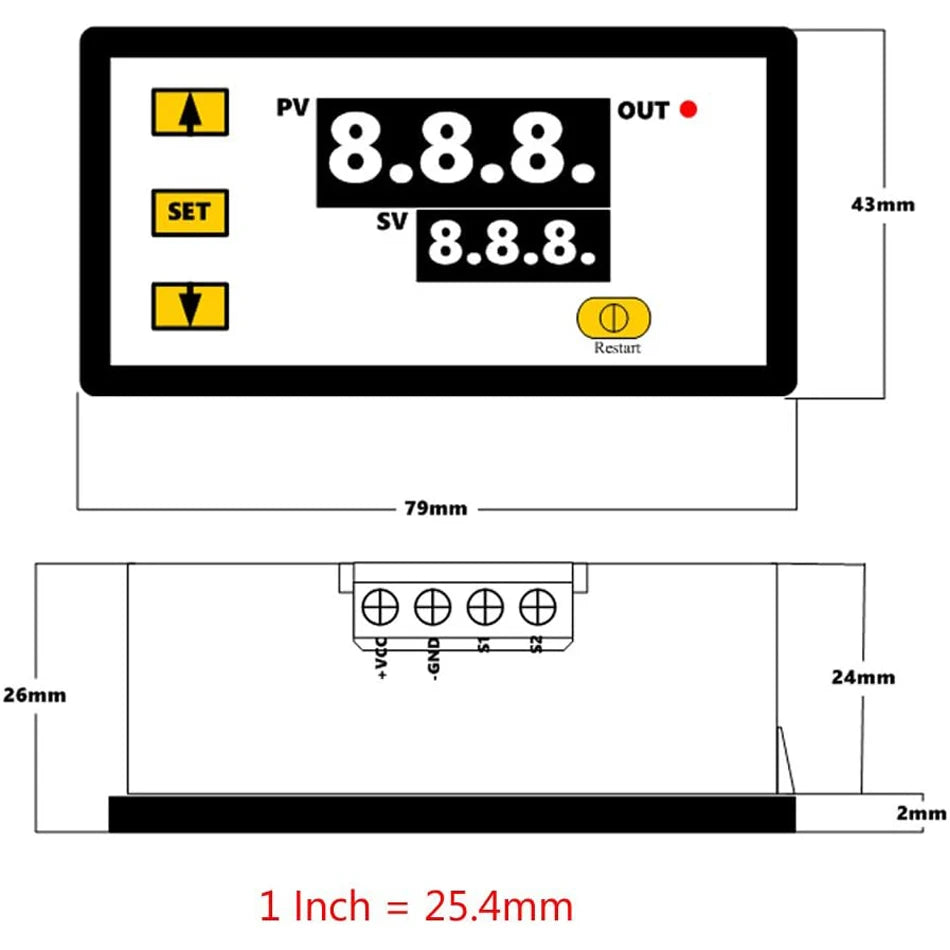

Dimension:79mm *43mm*26mm

Cutting Size:73mm * 39mm
