SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

Condition: New

High-concerned chemical: None

Origin: Mainland China

Type: Voltage Regulator

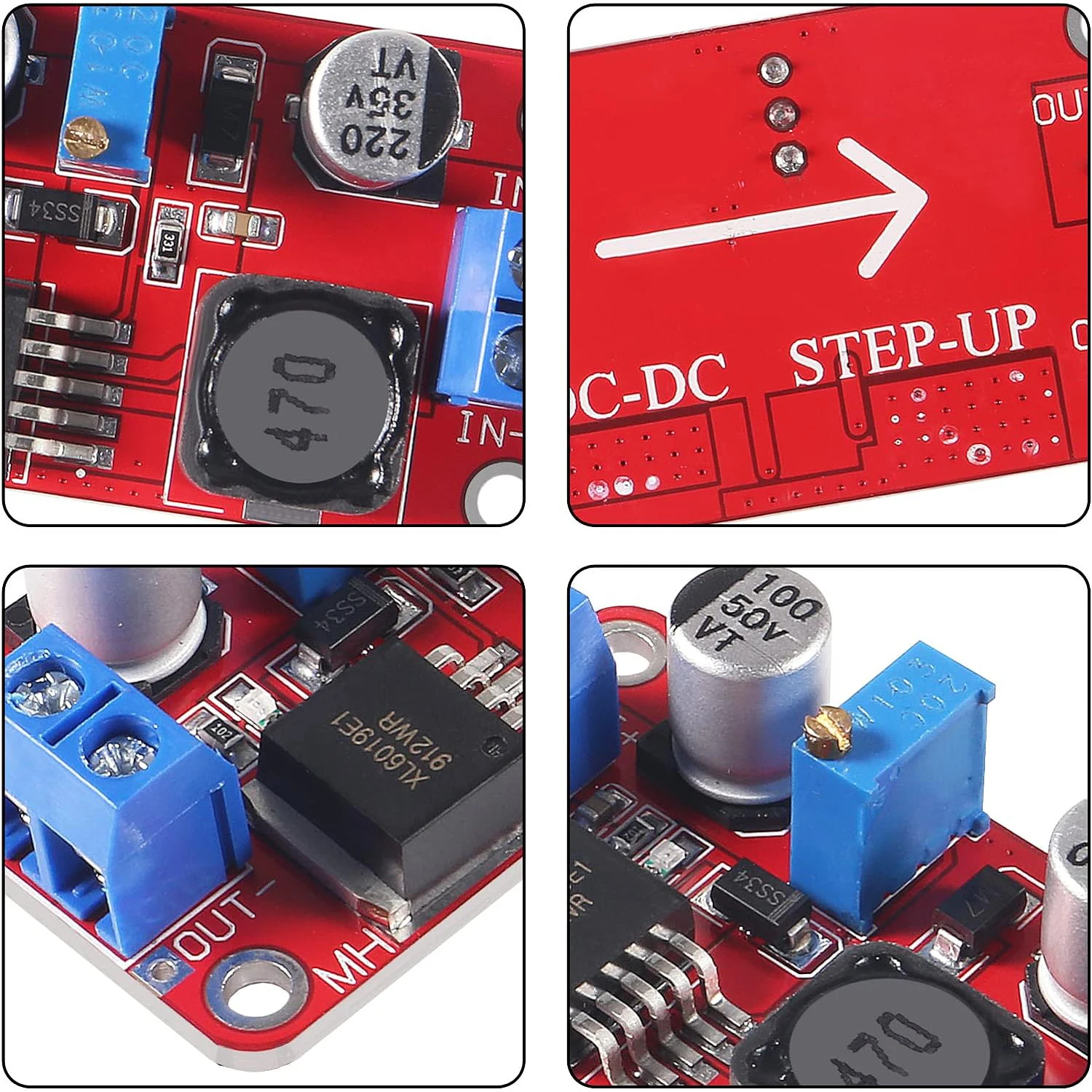

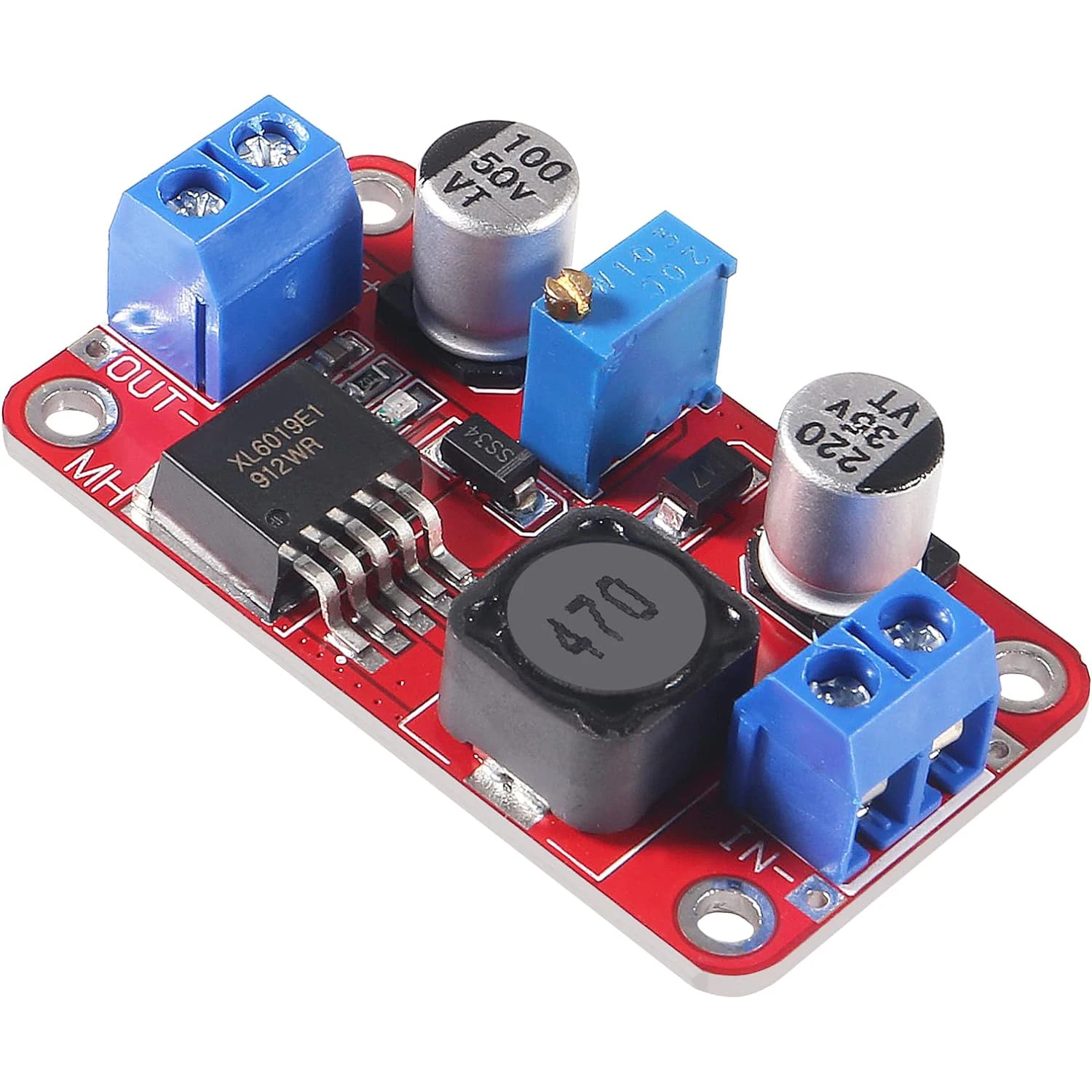

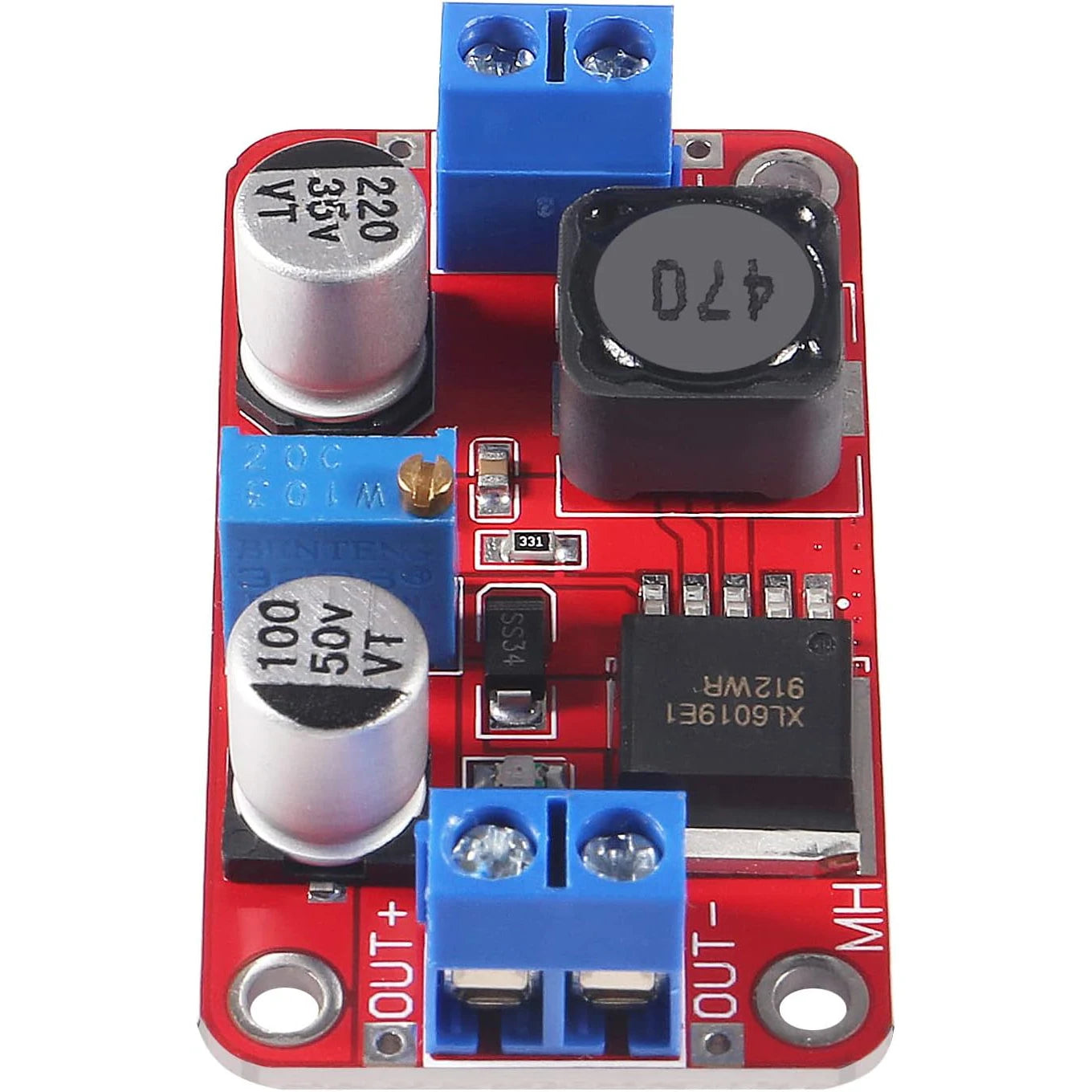

• XL6019 5A Current DC to DC Adjustable Boost Power Supply Board Module, which is a monolithic integrated circuit specially designed for boost and buck. It can work in the range of DC 5V to 40V input voltage, low ripple and built-in power MOS.

• XL6019 has built-in fixed frequency oscillator and frequency compensation circuit, which simplifies the circuit design. The PWM control loop can adjust the linear change of duty cycle from 0% to 90%. built-in over-current protection function and EN foot logic level turn-off function.

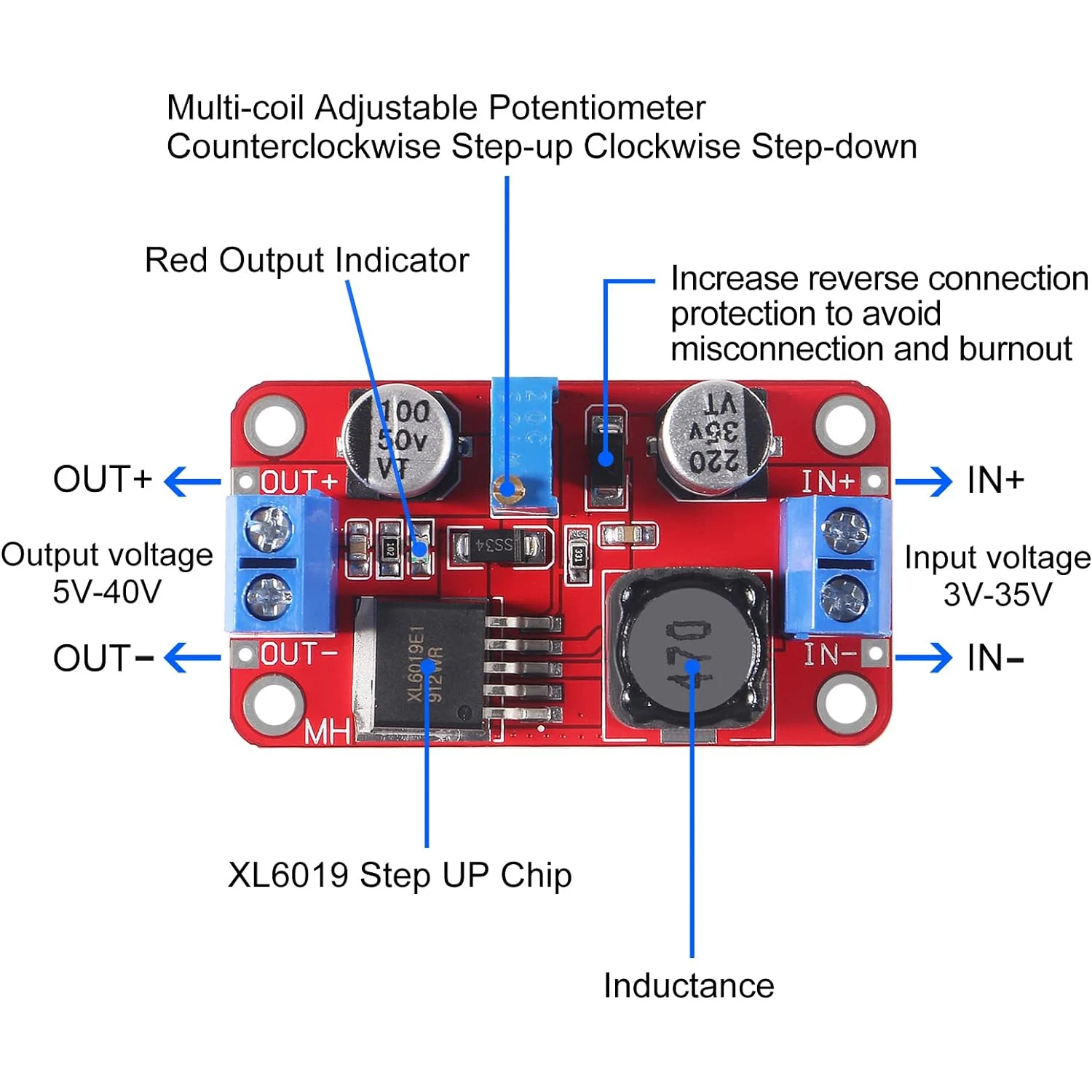

• Adjust the blue knob of the potentiometer (counterclockwise general impulse, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage.

• Built-in over temperature protection, full set overcurrent protection circuit reliability, high reliability.

• Application:EPC/Laptop vehicle adapter; Boost and buck conversion Power supply for handheld equipment.
