SPECIFICATIONS

Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)

Brand Name: ZRACE

Choice: yes

Components: Disc Brake

High-concerned chemical: none

Material: Light Alloy

Model Number: XG4

Origin: Mainland China

Size: /

Type: Hydraulic Disc Brake

Use: Road Bicycles

ZRACE M1 lightweight hydraulic disc brakes, 7075AL full CNC manufacturing, use short stroke large diameter pistons to provide higher braking sensitivity and stronger braking force. The integrated oil tank design basically eliminates the problem of oil leakage caused by the aging of the sealant, and the lever rotation point adopts the bearing design to greatly improve the operating comfort and smoothness of the brake handle, X2 suitable for XC / Trail , X4 suitable for XC / Trail / AM / Enduro, XG / XG4 suitable for Flat Bar Gravel / ROAD / BMX Raceing.

It was personally tested by the head coach of China Hong Kong Mountain Bike Team, Zhenxing Chen (former Asian Championship champion, Asian Games champion, four-time Olympic participation record), and it fully meets the competition standards.

Brand: ZRACE

Model: M1 XG4

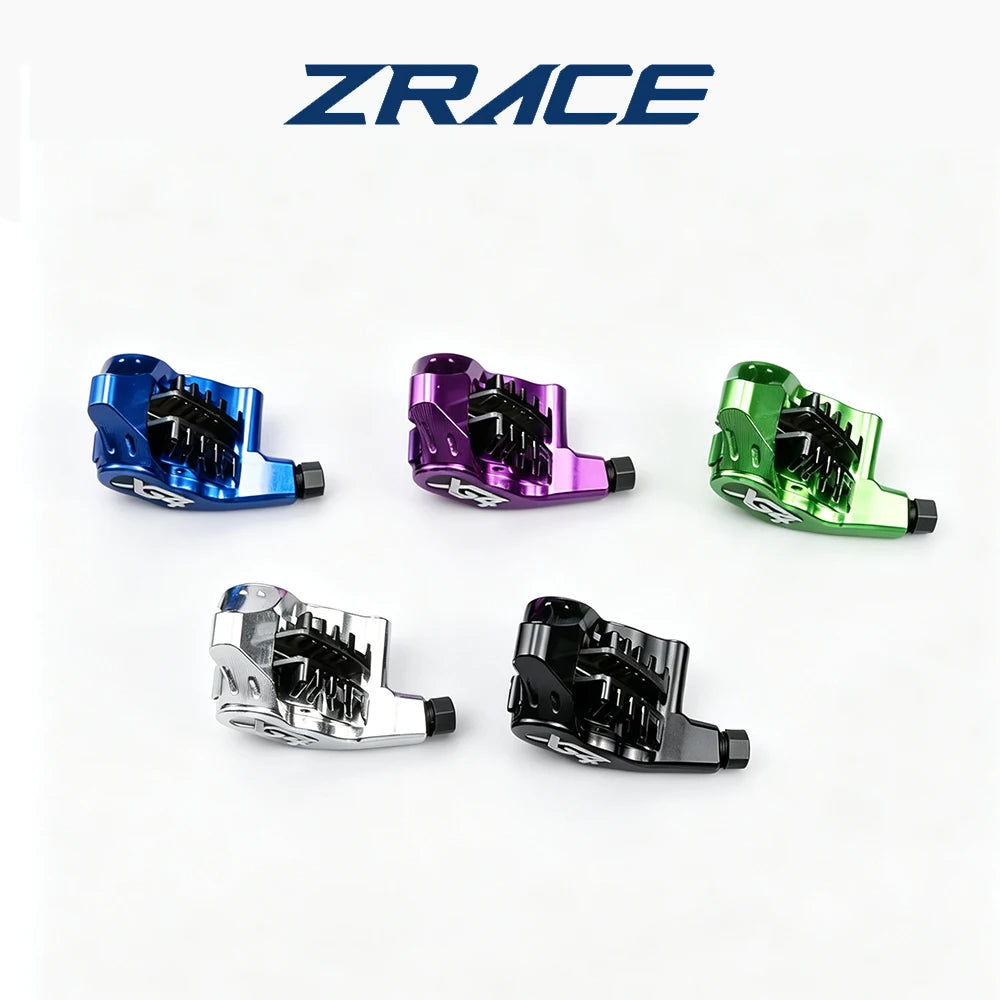

Colour: Black / Silver / Green / Purple / Blue

Material: aluminum alloy CNC

Scope of use: 34mm hole spacing Flat Mount brake seat

Oil: Mineral oil

Brake lever: adjustableBrake pads: Compatible with L05A L03A L04C K03S K05S

Tubing length: 1800mm

Weight: 108g without adapter

which are compatible with all mineral oil MTB brake levers and ROAD hydraulic brake shifters

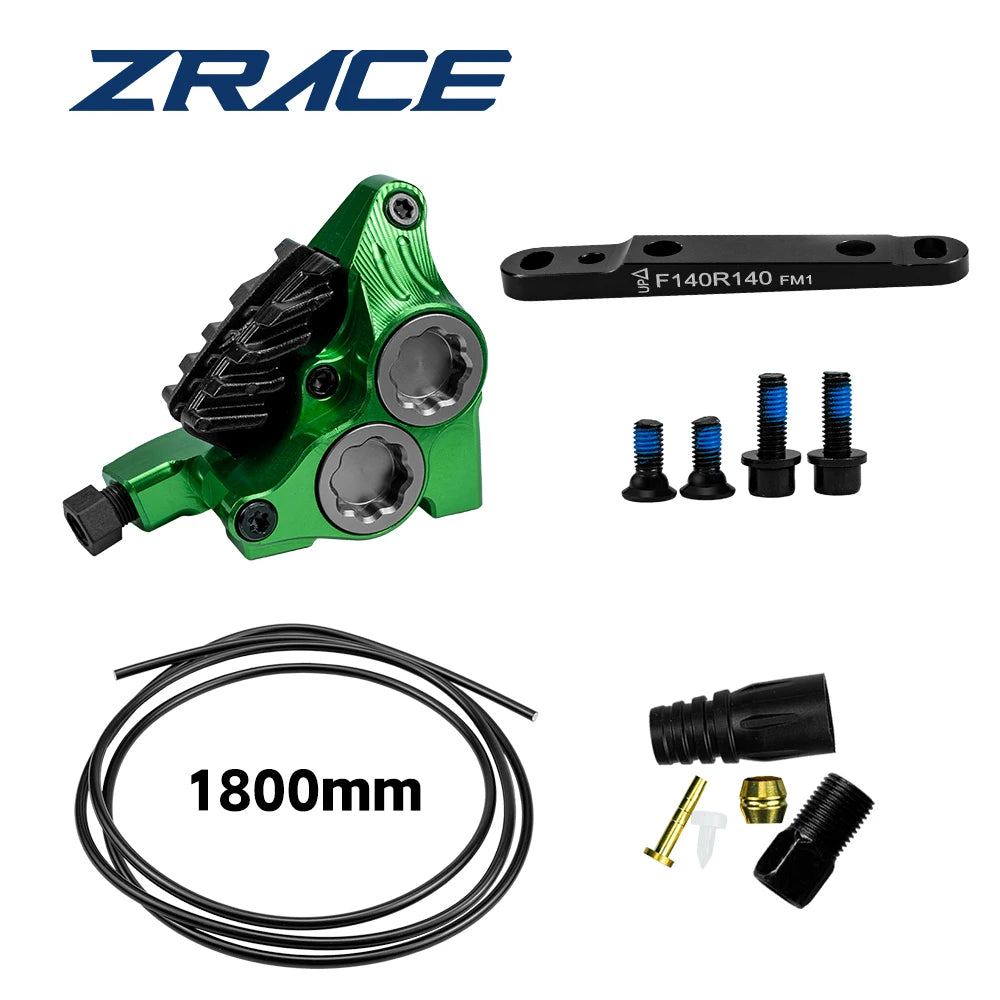

Parts Index:

①Caliper

②Brake pads

③Brake pad bolts

④Piston cover

⑤Connecting oil hose

Provides plenty of braking power for downhill climbs

Symmetrical 4-piston design with far more braking power than 2-piston design

Smooth and precise

Braking is precise and quick, and the handling is at your fingertips

High-quality seals and precision-engineered pistons

Ensure smooth and fluid piston movement, responsive without delay

4 times the power of extreme heat dissipation, more stable downhill speed control
